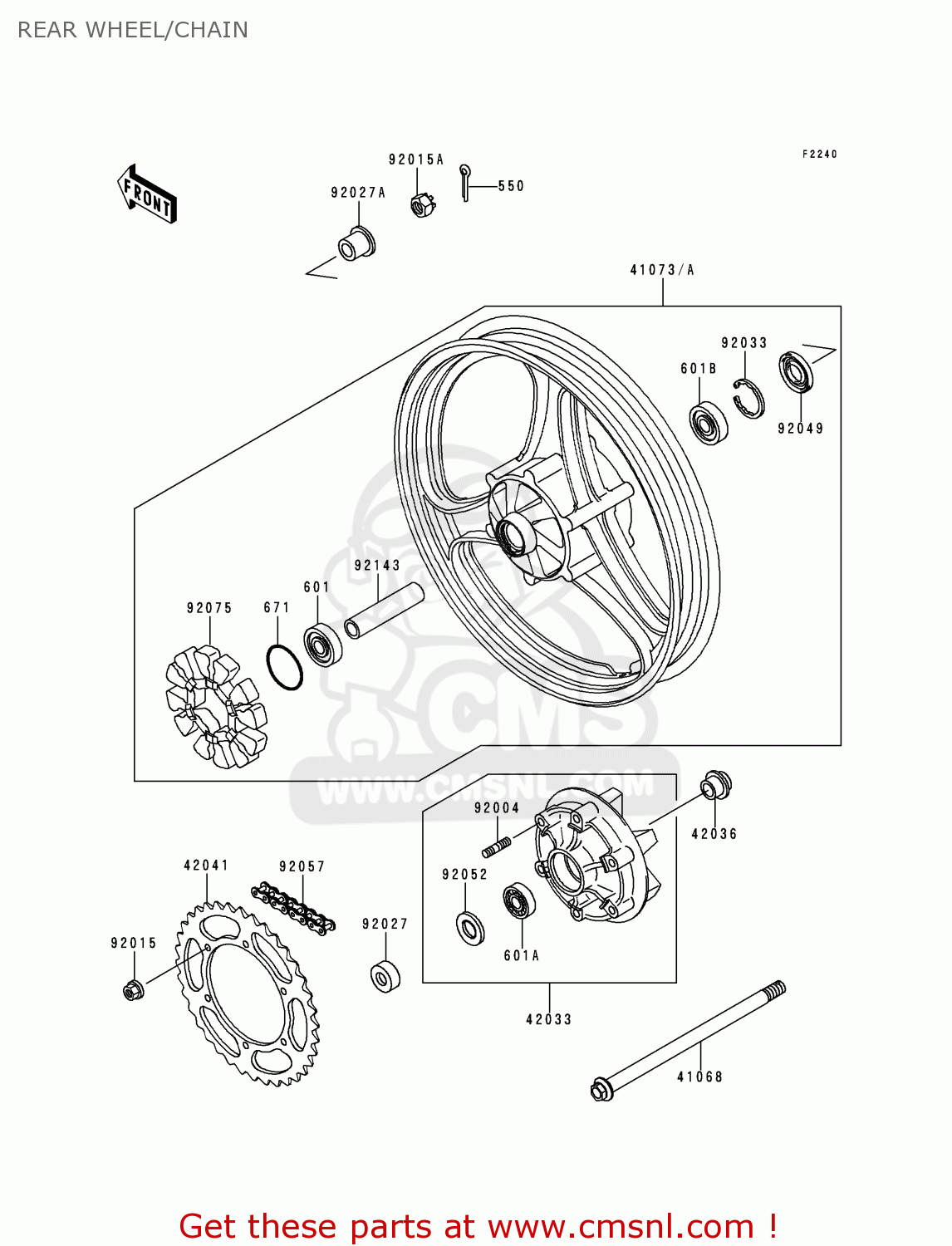

REAR WHEEL/CHAIN

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6203UU
ref: 601

BEARING-BALL,#6203UUC

€ 25.00

601A

601B6205G
ref: 601A

BEARING BALL

€ 14.00

601B

601B6303UU
ref: 601B

BEARING-BALL,6303LLUC

€ 30.50

671

671B2550
ref: 671

O RING,50MM

€ 1.50

41068

410681221
ref: 41068

AXLE,RR

€ 58.50

41073

410731366DH
ref: 41073
CAUS

WHEEL-ASSY,RR,P.C.GRA

€ 731.00

41073A

4107313665G
ref: 41073A

WHEEL-ASSY,RR,BLUE VI

€ 801.50

42033

420331107
ref: 42033

COUPLING-ASSY,RR HUB

€ 222.50

42036

420361055
ref: 42036

SLEEVE,L=25

€ 19.00

42041

420411277
ref: 42041

SPROCKET-HUB,45T

€ 38.50

92004

920041111
ref: 92004

STUD,10X21

€ 6.50

92015

920151720
ref: 92015

NUT,10MM

€ 3.50

92015A

920151947
ref: 92015A

NUT

€ 6.50

92027

920271784
ref: 92027

COLLAR,RR HUB

€ 16.00

92027A

920271785
ref: 92027A

COLLAR,RR HUB

€ 20.50

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92049

920491056
ref: 92049

OIL SEAL,BJN28475

€ 8.50

92052

92052006
ref: 92052

OIL SEAL WTC35527

€ 6.50

92057

920571346
ref: 92057

CHAIN,DRIVE,EK520LV-O

€ 161.00

92075

920751436
ref: 92075

DAMPER,RR HUB SHOCK

€ 65.00

92143

921431119
ref: 92143

COLLAR,17.2X25X97

€ 16.50

all assemblies
