CLUTCH

EX250F13 NINJA 250R 1999 USA CALIFORNIA CANADA

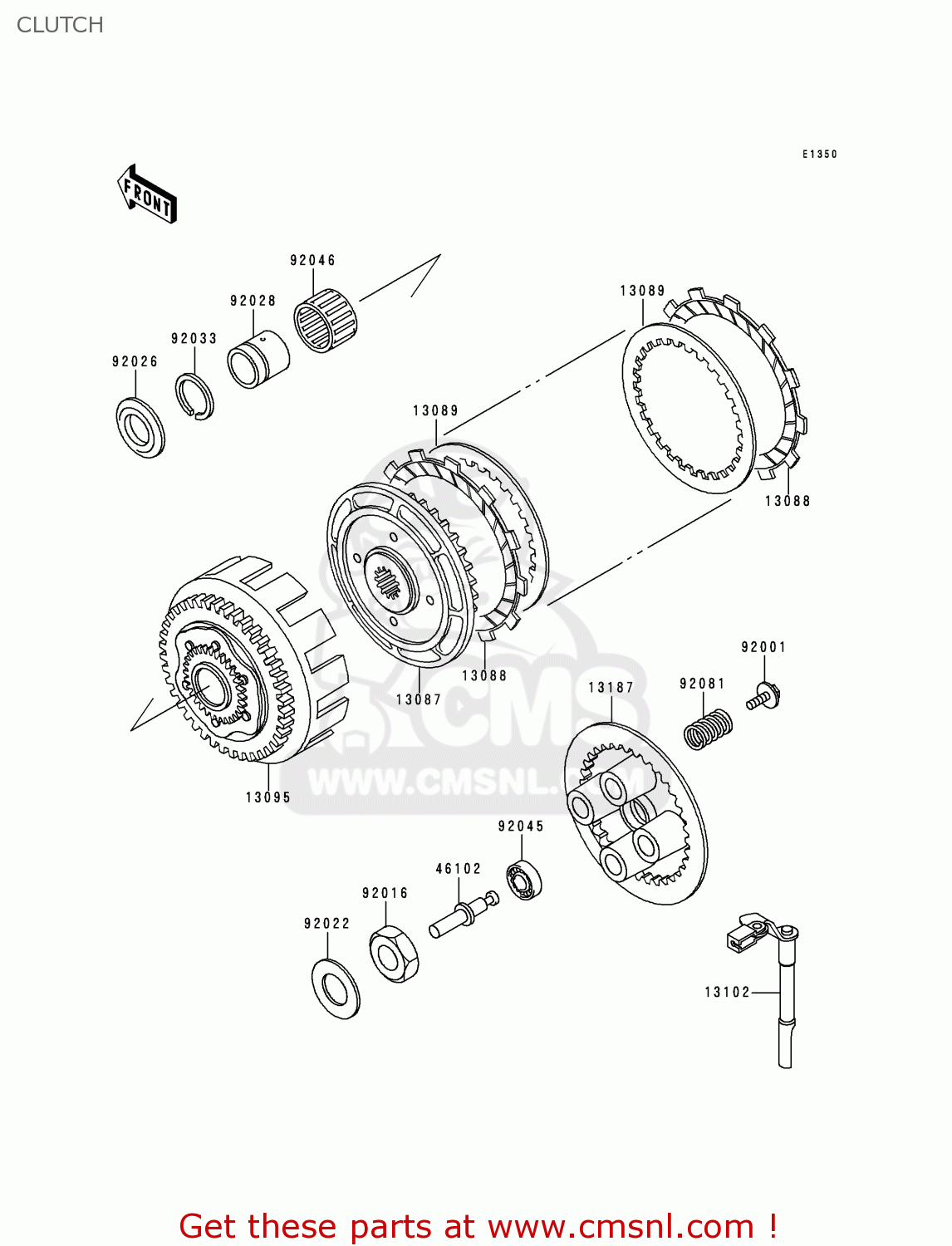

Clutch diagram EX250F13 NINJA 250R 1999 USA CALIFORNIA CANADA

CLUTCH EX250F13 NINJA 250R 1999 USA CALIFORNIA CANADA

CLUTCH EX250F13 NINJA 250R 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

13087

130871076
ref: 13087

HUB-CLUTCH

€ 91.00

13088

130881013
ref: 13088

PLATE-FRICTION (NAS)

€ 12.50

13089

13089026
ref: 13089

PLATE,CLUTCH STEEL (NAS)

€ 6.50

13095

130951145
ref: 13095

HOUSING-COMP-CLUTCH

€ 334.50

13102

131021079
ref: 13102

RELEASE-COMP-CLUTCH

€ 52.50

13187

131871057
ref: 13187

PLATE-CLUTCH OPERATIN (NAS)

€ 61.00

46102

461021030
ref: 46102

ROD,CLUTCH

€ 22.00

92001

920011066
ref: 92001

BOLT, CLUTCH SPR FITT

€ 4.00

92016

92016028
ref: 92016

NUT

€ 9.50

92022

920221116
ref: 92022

WASHER,20.3X36X2.3

€ 5.50

92026

92026116
ref: 92026

SPACER,THRUST,T=5.5MM

€ 12.00

92028

920281414
ref: 92028

BUSHING,CLUTCH

€ 32.50

92033

920331212
ref: 92033

RING-SNAP

€ 5.50

92045

920451235
ref: 92045

BEARING-BALL,6001C3ML

€ 15.50

92046

92046028
ref: 92046

BEARING-NEEDLE,KTV323

€ 20.50

92081

92081139
ref: 92081

SPRING,CLUTCH

€ 5.50
