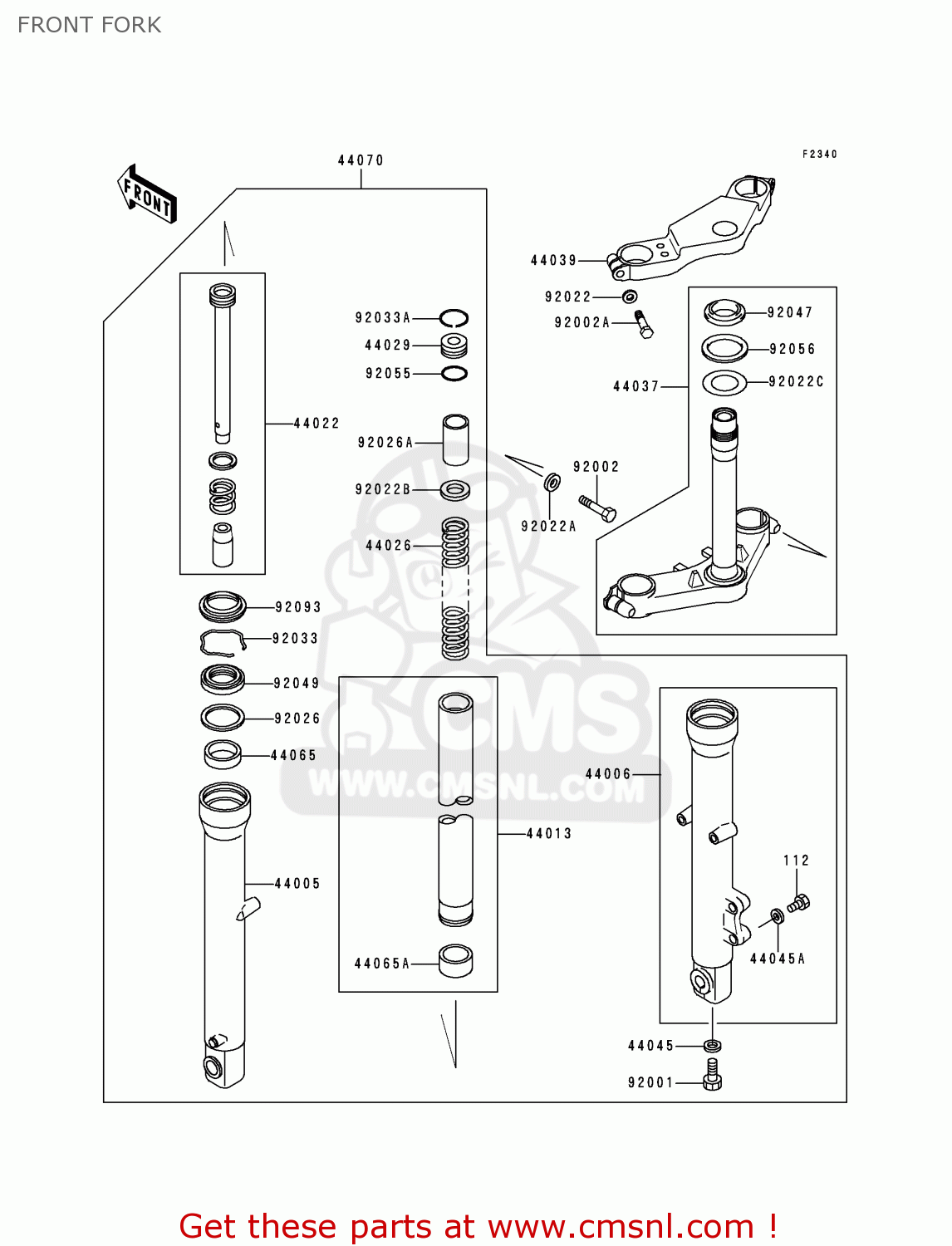

FRONT FORK

ref

part #

description

quantity

112

112B0608
ref: 112

BOLT-HEX,HEAD,6X8

€ 0.50

44005

440051258
ref: 44005

PIPE-LEFT FORK OUTER

€ 332.00

44006

440061255
ref: 44006

PIPE-RIGHT FORK OUTER

€ 366.00

44013

440131273
ref: 44013

PIPE-FORK INNER

€ 147.00

44022

440221206
ref: 44022

CYLINDER-FORK

€ 87.00

44026

440261362
ref: 44026

SPRING-FRONT FORK

€ 28.50

44029

440291127
ref: 44029

SEAT-FORK SPRING

€ 33.00

44037

440371217
ref: 44037

HOLDER-FORK UNDER

€ 250.50

44039

440391163
ref: 44039

HOLDER-FORK UPPER

€ 229.50

44045

44045051
ref: 44045

GASKET,FORK CYLINDER (NAS)

€ 4.00

44045A

44045052
ref: 44045A

GASKET,DRAIN PLUG (NAS)

€ 6.00

44065

440651068
ref: 44065

BUSHING-FRONT FORK

€ 16.00

44065A

440651082
ref: 44065A

BUSHING-FRONT FORK

€ 13.00

44070

440705026
ref: 44070

DAMPER-ASSY,FORK

€ 1,100.50

92001

920011464
ref: 92001

BOLT

€ 4.00

92002

920021811
ref: 92002

BOLT,10X32

€ 7.50

92002A

920021959
ref: 92002A

BOLT

€ 6.50

92022

920221552
ref: 92022

WASHER,SPRING,8MM

€ 2.50

92022A

920221704
ref: 92022A

WASHER,SPRING,10MM

€ 2.00

92022B

920221879
ref: 92022B

WASHER

€ 3.00

92022C

92022231
ref: 92022C

WASHER,PLAIN

€ 3.00

92026

920261038
ref: 92026

SPACER,FORK

€ 6.50

92026A

920261291
ref: 92026A

SPACER

€ 5.00

92033

920331219
ref: 92033

RING-SNAP,FORK

€ 4.00

92033A

920331236
ref: 92033A

RING-SNAP

€ 5.00

92047

92047012
ref: 92047

CONE-STRNG STM BRNG

€ 14.50

92049

920491226
ref: 92049

SEAL-OIL,FORK

€ 14.50

92055

920551384
ref: 92055

RING-O,FORK SPRING SE

€ 3.00

92056

92056003
ref: 92056

OIL SEAL,STEERING STM

€ 6.00

92093

920931196
ref: 92093

SEAL,FORK

€ 15.50
