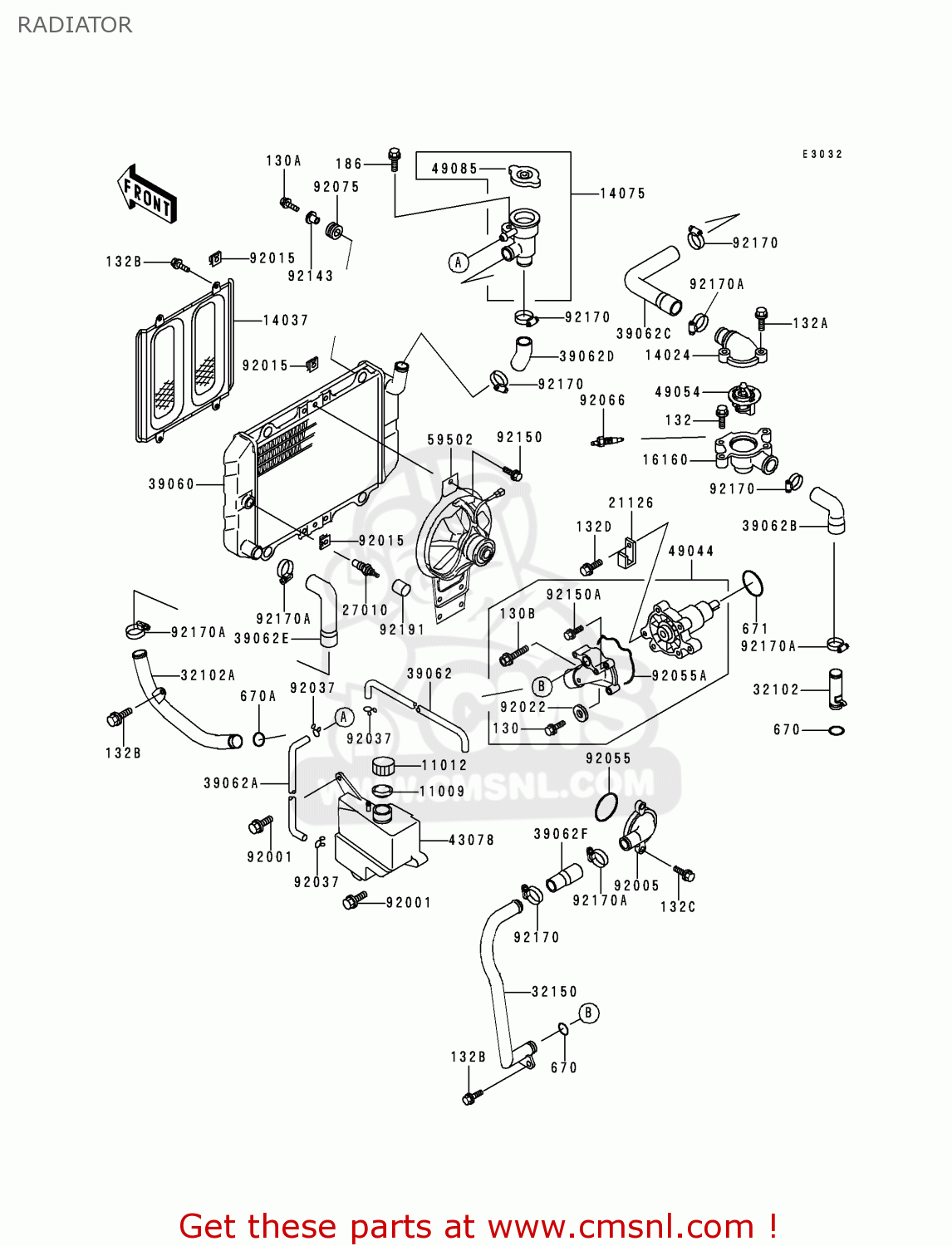

RADIATOR

ref

part #

description

quantity

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11012

110121084
ref: 11012

CAP

€ 1.50

14024

140241232
ref: 14024

COVER,THERMOSTAT UPP

€ 43.00

14037

140371078
ref: 14037

SCREEN

€ 43.50

14075

140751061
ref: 14075

CAP-ASSY

€ 128.00

16160

161601110
ref: 16160

BODY,THERMOSTAT

€ 29.50

21126

21126008
ref: 21126

CLAMP,WIRING HARNESS

€ 3.00

27010

270101304
ref: 27010

SWITCH,THERMOSTAT

€ 63.00

32102

321021021
ref: 32102

PIPE,HEAD-THERMOSTAT

€ 17.50

32102A

321021531
ref: 32102A

PIPE

€ 41.50

32150

321501143
ref: 32150

PIPE

€ 53.00

39060

390601087
ref: 39060

RADIATOR

€ 639.50

39062

390621007
ref: 39062

HOSE-COOLING,RESERVIR

€ 25.00

39062A

390621028
ref: 39062A

HOSE-COOLING

€ 25.00

39062B

390621170
ref: 39062B

HOSE-COOLING,HEAD-THE

€ 14.00

39062C

390621171
ref: 39062C

HOSE-COOLING,CAP-THER

€ 25.50

39062D

390621172
ref: 39062D

HOSE-COOLING,RADIATOR

€ 17.00

39062E

390621173
ref: 39062E

HOSE-COOLING,RADIATOR

€ 11.00

39062F

390621246
ref: 39062F

HOSE-COOLING,PUMP-CYL

€ 7.50

43078

430781070
ref: 43078

RESERVOIR

€ 32.00

49044

490441064
ref: 49044

PUMP-WATER

€ 244.00

49054

490541058
ref: 49054

THERMOSTAT

€ 41.00

49085

490851066
ref: 49085

CAP-ASSY-PRESSURE

€ 23.50

59502

595021066
ref: 59502

FAN-ASSY

€ 425.50

92001

920011516
ref: 92001

BOLT,W/WASHER,6X12

€ 3.00

92005

920051145
ref: 92005

FITTING,CYLINDER

€ 22.50

92015

920151487
ref: 92015

NUT

€ 3.00

92022

920221976
ref: 92022

WASHER,6.2X6.2X1.0

€ 4.00

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92055

92055091
ref: 92055

0 RING

€ 4.00

92055A

920551432
ref: 92055A

RING-O

€ 7.50

92066

920661183
ref: 92066

PLUG,SENSOR WATER

€ 38.00

92075

920751665
ref: 92075

DAMPER

€ 5.00

92143

921431063
ref: 92143

COLLAR

€ 6.00

92150

921501186
ref: 92150

BOLT

€ 3.00

92150A

921501562
ref: 92150A

BOLT, FLANGED 6X18

€ 2.50

92170

921701033
ref: 92170

CLAMP,COOLING HOSE

€ 10.50

92170A

921701286
ref: 92170A

CLAMP

€ 13.00

92191

921911080
ref: 92191

TUBE

€ 2.50

130A

130J0625
ref: 130A

BOLT-FLANGED,6X25

€ 2.00

130B

130J0635
ref: 130B

BOLT-FLANGED,6X35

€ 3.00

132

132G0612
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132G0625
ref: 132A

BOLT-FLANGED-SMALL

€ 3.00

132B

132J0612
ref: 132B

BOLT-FLANGED-SMALL

€ 2.50

132C

132J0616
ref: 132C

BOLT-FLANGED-SMALL

€ 3.00

132D

132J0630
ref: 132D

BOLT-FLANGED-SMALL

€ 2.50

186

186C0616
ref: 186

BOLT-UPSET-WP

€ 2.50

670

670B2016
ref: 670

O RING,16MM

€ 1.00

670A

670B2018
ref: 670A

O RING,18MM

€ 1.00

671

671D2535
ref: 671

O RING

€ 4.00

all assemblies
