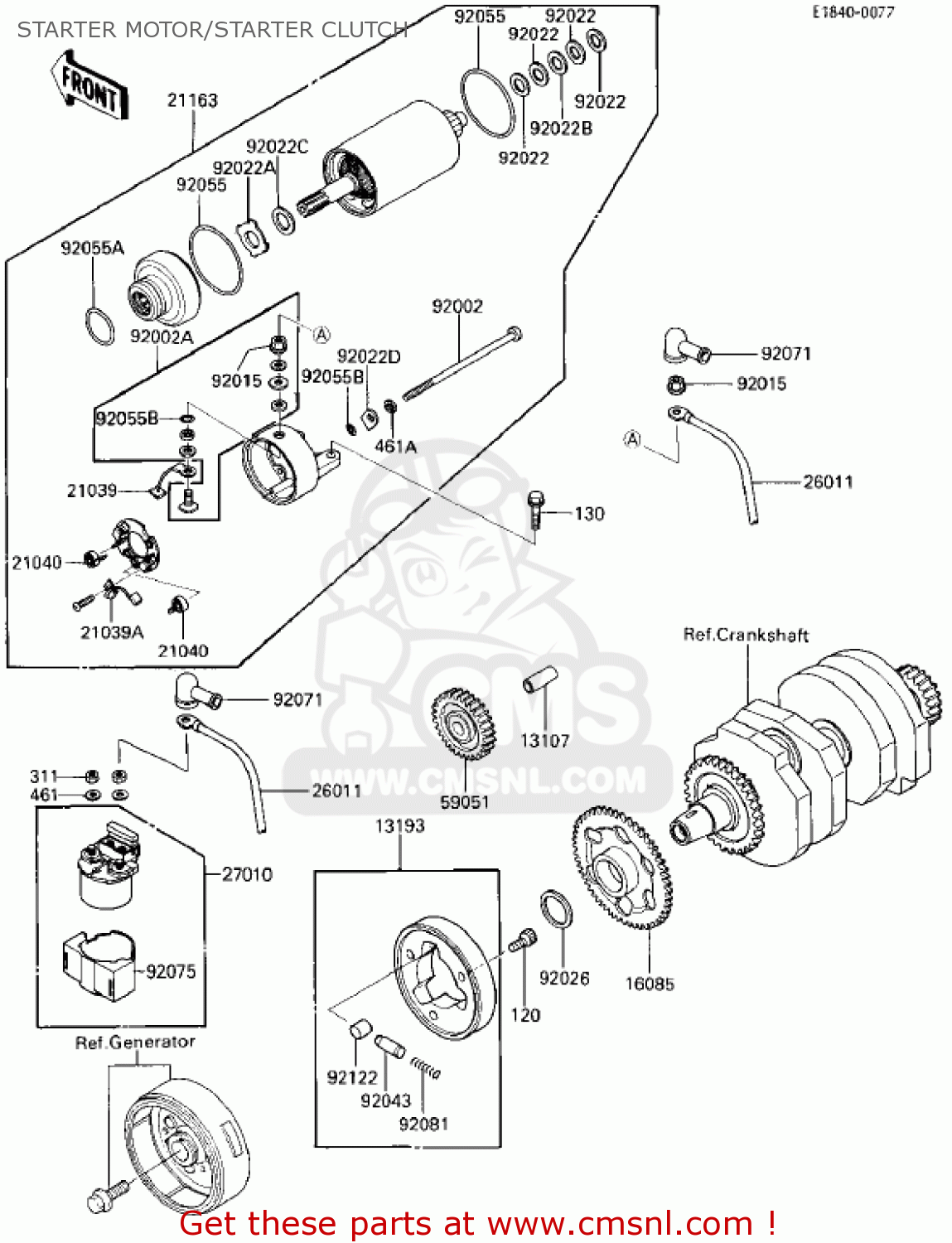

STARTER MOTOR/STARTER CLUTCH

ref

part #

description

quantity

13107

131071176
ref: 13107

SHAFT,7.8X12X26.5

€ 6.50

13193

131931002
ref: 13193

CLUTCH-ASSY-ONEWAY

€ 96.00

16085

160851166
ref: 16085

GEAR,ONEWAY CLUTCH,65

€ 121.00

21039

210391001
ref: 21039

BRUSH,CARBON(+)

€ 21.50

21039A

210391056
ref: 21039A

BRUSH,CARBON(-)

€ 20.50

21040

210401053
ref: 21040

SPRING-BRUSH

€ 6.50

21163

211631100
ref: 21163

ELECTRIC STARTER

€ 506.00

26011

260111376
ref: 26011

WIRE-LEAD

€ 55.00

27010

270101213
ref: 27010

SWITCH,MAGNETIC

€ 111.00

59051

590511154
ref: 59051

GEAR-SPUR,IDLE

€ 101.50

92002

920021818
ref: 92002

BOLT,STARTER

€ 5.00

92002A

920021819
ref: 92002A

BOLT,TERMINAL

€ 17.50

92015

920151476
ref: 92015

NUT,6MM

€ 2.50

92022

21025011
ref: 92022

WASHER, THRUST, 0.2T

€ 4.00

92022A

920221130
ref: 92022A

WASHER,THRUST SUPPORT

€ 4.00

92022B

920221132
ref: 92022B

WASHER,9.1X18X0.8

€ 4.00

92022C

920221714
ref: 92022C

WASHER,22X12.2X0.5

€ 2.50

92022D

920221825
ref: 92022D

WASHER,LOCK

€ 4.00

92026

920261004
ref: 92026

SPACER,25X40X1

€ 4.50

92043

92043132
ref: 92043

PIN

€ 4.00

92055

920551042
ref: 92055

RING-O,56MM

€ 3.50

92055A

920551303
ref: 92055A

RING-O

€ 7.50

92055B

920551370
ref: 92055B

RING-O,4.5X2.0

€ 3.00

92071

21017017
ref: 92071

GROMMET-CORD

€ 6.50

92075

920751863
ref: 92075

DAMPER,MAGNETIC SWITC

€ 14.00

92081

92081159
ref: 92081

SPRING, COIL

€ 2.50

92122

92122006
ref: 92122

ROLLER

€ 4.00

120

120P0814
ref: 120

BOLT-SOCKET,8X14

€ 3.00

130

130J0620
ref: 130

BOLT-FLANGED,6X20

€ 2.50

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461K0500
ref: 461A

WASHER-SPRING,5MM,BLA

€ 0.50

all assemblies
