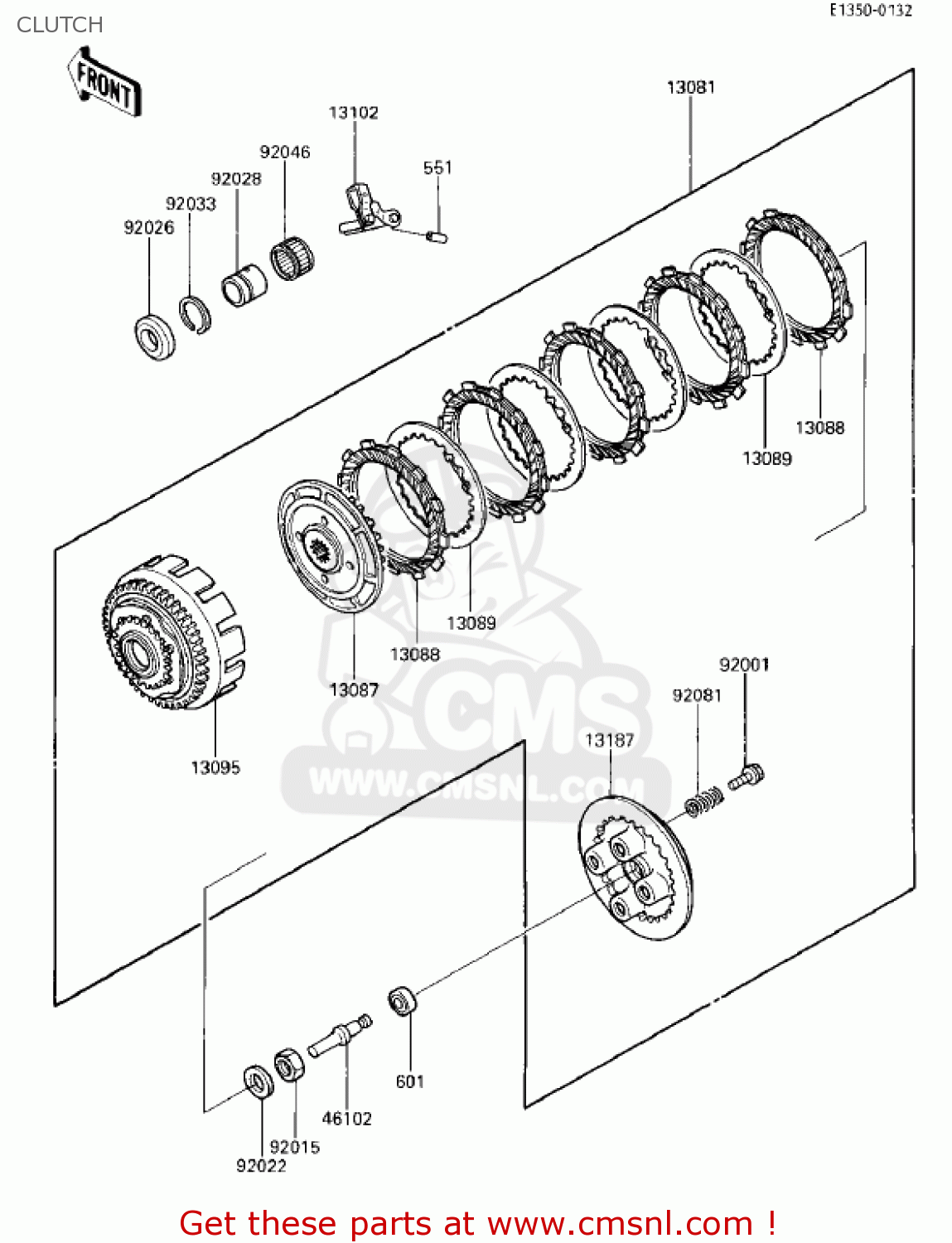

CLUTCH

ref

part #

description

quantity

13081

130811226
ref: 13081

CLUTCH-ASSY

€ 260.50

13087

130871076
ref: 13087

HUB-CLUTCH

€ 91.00

13088

130881013
ref: 13088

PLATE-FRICTION (NAS)

€ 12.50

13089

13089026
ref: 13089

PLATE,CLUTCH STEEL (NAS)

€ 6.50

13095

130951145
ref: 13095

HOUSING-COMP-CLUTCH

€ 334.50

13102

131021079
ref: 13102

RELEASE-COMP-CLUTCH

€ 52.50

13187

131871057
ref: 13187

PLATE-CLUTCH OPERATIN (NAS)

€ 61.00

46102

461021030
ref: 46102

ROD,CLUTCH

€ 22.00

92001

920011066
ref: 92001

BOLT, CLUTCH SPR FITT

€ 4.00

92015

92016028
ref: 92015

NUT

€ 9.50

92022

920221116
ref: 92022

WASHER,20.3X36X2.3

€ 5.50

92026

92026116
ref: 92026

SPACER,THRUST,T=5.5MM

€ 12.00

92028

920281414
ref: 92028

BUSHING,CLUTCH

€ 32.50

92033

920331212
ref: 92033

RING-SNAP

€ 5.50

92046

92046028
ref: 92046

BEARING-NEEDLE,KTV323

€ 20.50

92081

92081139
ref: 92081

SPRING,CLUTCH

€ 5.50

551

551A0312
ref: 551

PIN-DOWEL,3X12

€ 0.50

601

920451235
ref: 601

BEARING-BALL,6001C3ML

€ 15.50

all assemblies
