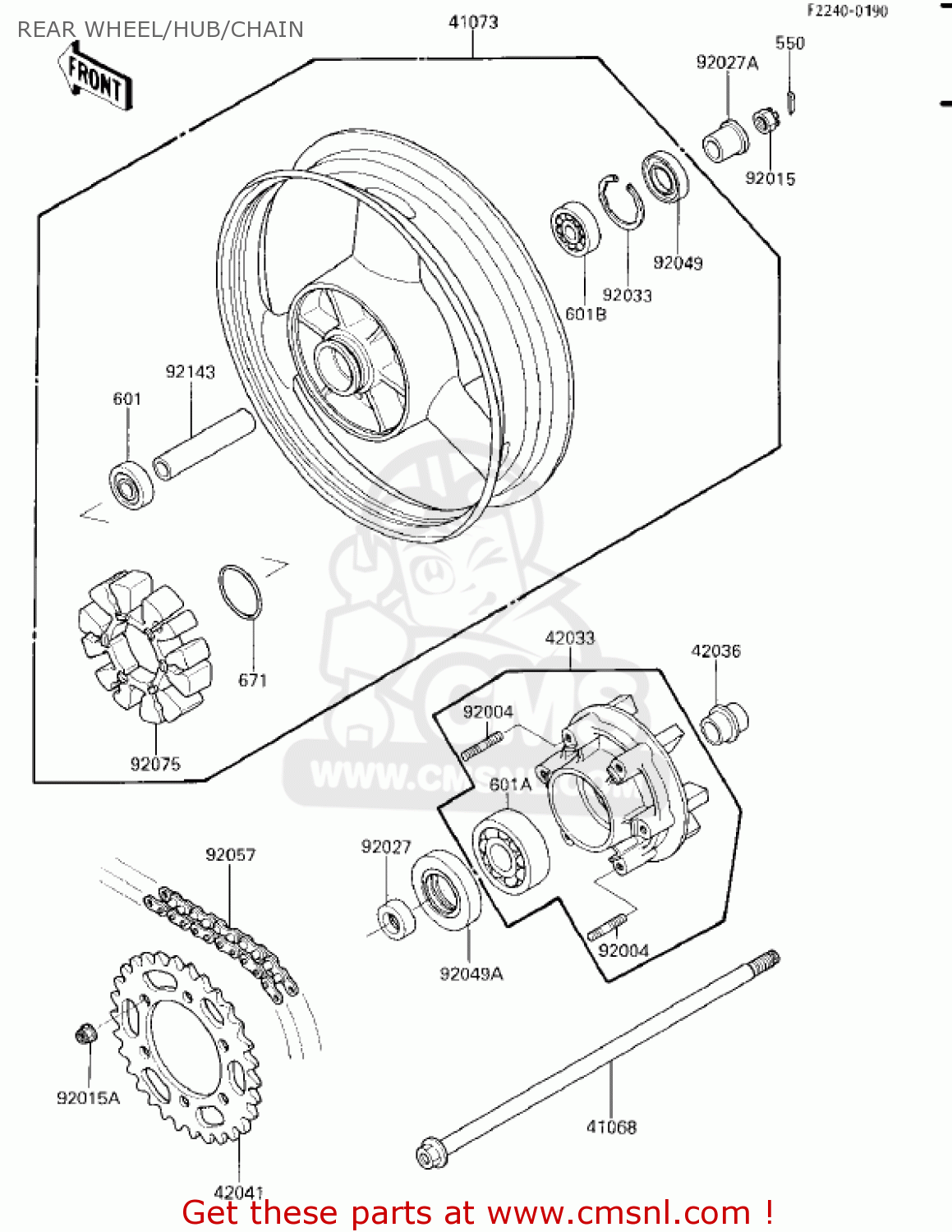

REAR WHEEL/HUB/CHAIN

ref

part #

description

quantity

41068

410681221
ref: 41068

AXLE,RR

€ 58.50

41073

410731333T6
ref: 41073

WHEEL ASSEMBLY,REAR,WHITE #1

€ 433.00

42033

420331107
ref: 42033

COUPLING-ASSY,RR HUB

€ 222.50

42036

420361055
ref: 42036

SLEEVE,L=25

€ 19.00

42041

420411235
ref: 42041

SPROCKET-HUB, 42T

€ 40.00

92004

920041111
ref: 92004

STUD,10X21

€ 6.50

92015

42045014
ref: 92015

NUT CASTLE, 16M/M

€ 6.50

92015A

920151335
ref: 92015A

NUT,FLANGED,10MM

€ 1.50

92027

920271784
ref: 92027

COLLAR,RR HUB

€ 16.00

92027A

920271785
ref: 92027A

COLLAR,RR HUB

€ 20.50

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92049

920491056
ref: 92049

OIL SEAL,BJN28475

€ 8.50

92049A

92052006
ref: 92049A

OIL SEAL WTC35527

€ 6.50

92057

920571159
ref: 92057

CHAIN,DRIVE,EK520 HVD

€ 151.50

92075

920751436
ref: 92075

DAMPER,RR HUB SHOCK

€ 65.00

92143

920271993
ref: 92143

COLLAR,17.2X25X97

€ 16.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6203Z
ref: 601

BEARING-BALL,#6203ZC3

€ 24.00

601A

601B6205
ref: 601A

BEARING-BALL,#6205C3

€ 14.00

601B

601B6303Z
ref: 601B

BEARING-BALL,#6303ZC3

€ 17.50

671

671B2550
ref: 671

O RING,50MM

€ 1.50
