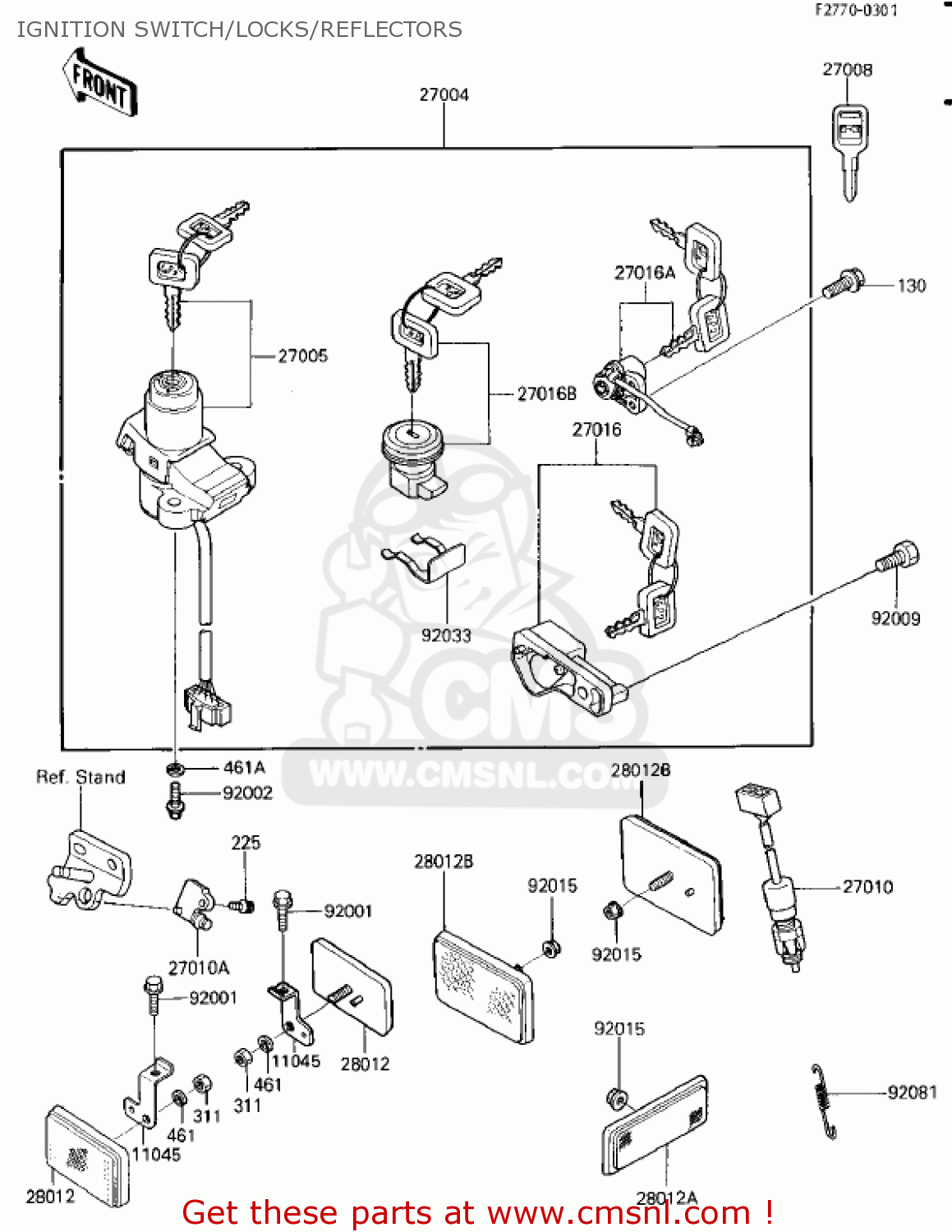

IGNITION SWITCH/LOCKS/REFLECTORS

ref

part #

description

quantity

11045

110451322
ref: 11045

FRONT REFLECTOR BRACKET

€ 6.00

27004

270045330
ref: 27004

SWITCH ASSEMBLY

€ 106.00

27005

270055075
ref: 27005

SWITCH-ASSY-IGNITION

€ 150.00

27008

270081103
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 13.50

27010

270101152
ref: 27010

SWITCH,BRAKE LAMP

€ 20.00

27010A

270101185
ref: 27010A

SWITCH,BRAKE/SIDE STA

€ 25.50

27016

270165091
ref: 27016

LOCK-ASSY,HELMET

€ 24.00

27016A

270165102
ref: 27016A

SEAT LOCK ASSEMBLY

€ 52.50

27016B

270165106
ref: 27016B

LOCK-ASSY,TANK CAP CO

€ 43.50

28012

280121003
ref: 28012

REFLECTOR,REFLEX

€ 15.00

28012A

280121005
ref: 28012A

REFLECTOR-REFLEX,RR

€ 16.50

28012B

280121054
ref: 28012B

REFLECTOR-REFLEX,RR

€ 15.00

92001

920011847
ref: 92001

BOLT,6X14,BLACK

€ 2.50

92002

920021333
ref: 92002

BOLT

€ 1.50

92009

920091305
ref: 92009

SCREW,5X16

€ 2.50

92015

920151259
ref: 92015

NUT,FLANGED,5MM

€ 2.50

92033

920331095
ref: 92033

RING-SNAP,COWLING POC

€ 4.50

92081

27011004
ref: 92081

SPRING-BRAKE LAMP SW

€ 2.50

130

130B0510
ref: 130

BOLT-FLANGED

€ 1.50

225

225C0416
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50

311

311B0500
ref: 311

NUT-HEX

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

461A

461F0600
ref: 461A

WASHER-SPRING,6MM

€ 0.50

all assemblies
