WATER PUMP

ER500B3 ER5 1999 FRANCE NL FG

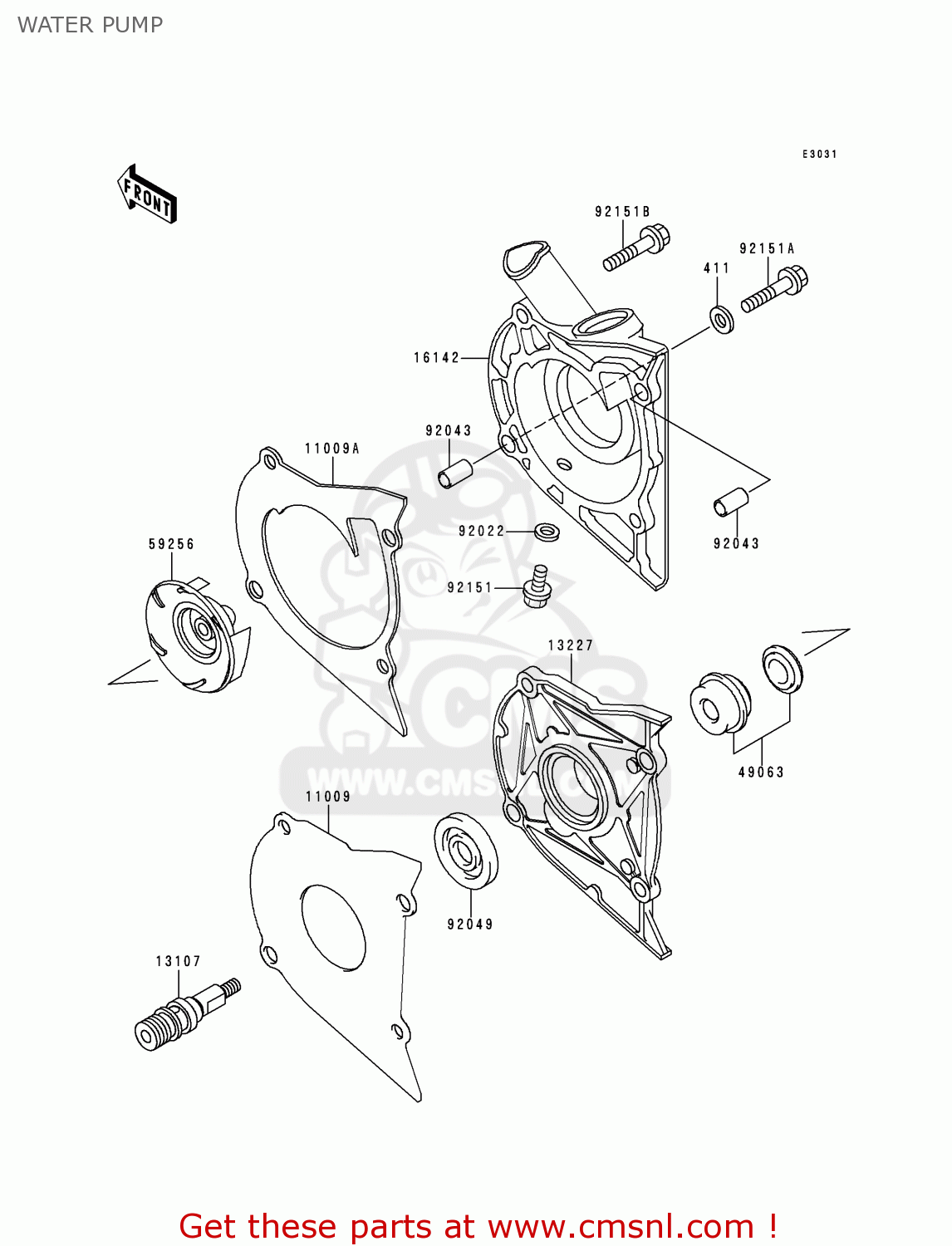

Water pump diagram ER500B3 ER5 1999 FRANCE NL FG

WATER PUMP ER500B3 ER5 1999 FRANCE NL FG
WATER PUMP ER500B3 ER5 1999 FRANCE NL FG
WATER PUMP ER500B3 ER5 1999 FRANCE NL FG
prices are in EUR
ref
part #
description
quantity
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
411F0600
€ 0.50
11009
110091838
ref: 11009
GASKET, PUMP HOUSING (NAS)
110091838
€ 7.50
11009A
110091839
ref: 11009A
GASKET, PUMP COVER (NAS)
110091839
€ 9.50
13107
131071203
ref: 13107
SHAFT,IMPELLER
131071203
€ 38.50
13227
132271126
ref: 13227
HOUSING,WATER PUMP
132271126
€ 51.50
16142
161421143
ref: 16142
COVER-PUMP
161421143
€ 96.00
49063
490631054
ref: 49063
SEAL-MECHANICAL
490631054
€ 19.00
59256
592561060
ref: 59256
IMPELLER
592561060
€ 24.00
92022
92022304
ref: 92022
WASHER,PLAIN
92022304
€ 2.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92049
920491215
ref: 92049
SEAL-OIL
920491215
€ 10.00
92151
921511133
ref: 92151
BOLT,6X12
921511133
€ 1.50
92151A
921511134
ref: 92151A
BOLT,6X30
921511134
€ 1.50
92151B
921511135
ref: 92151B
BOLT,6X35
921511135
€ 2.50
