AIR CLEANER
ER500B3 ER5 1999 FRANCE NL FG

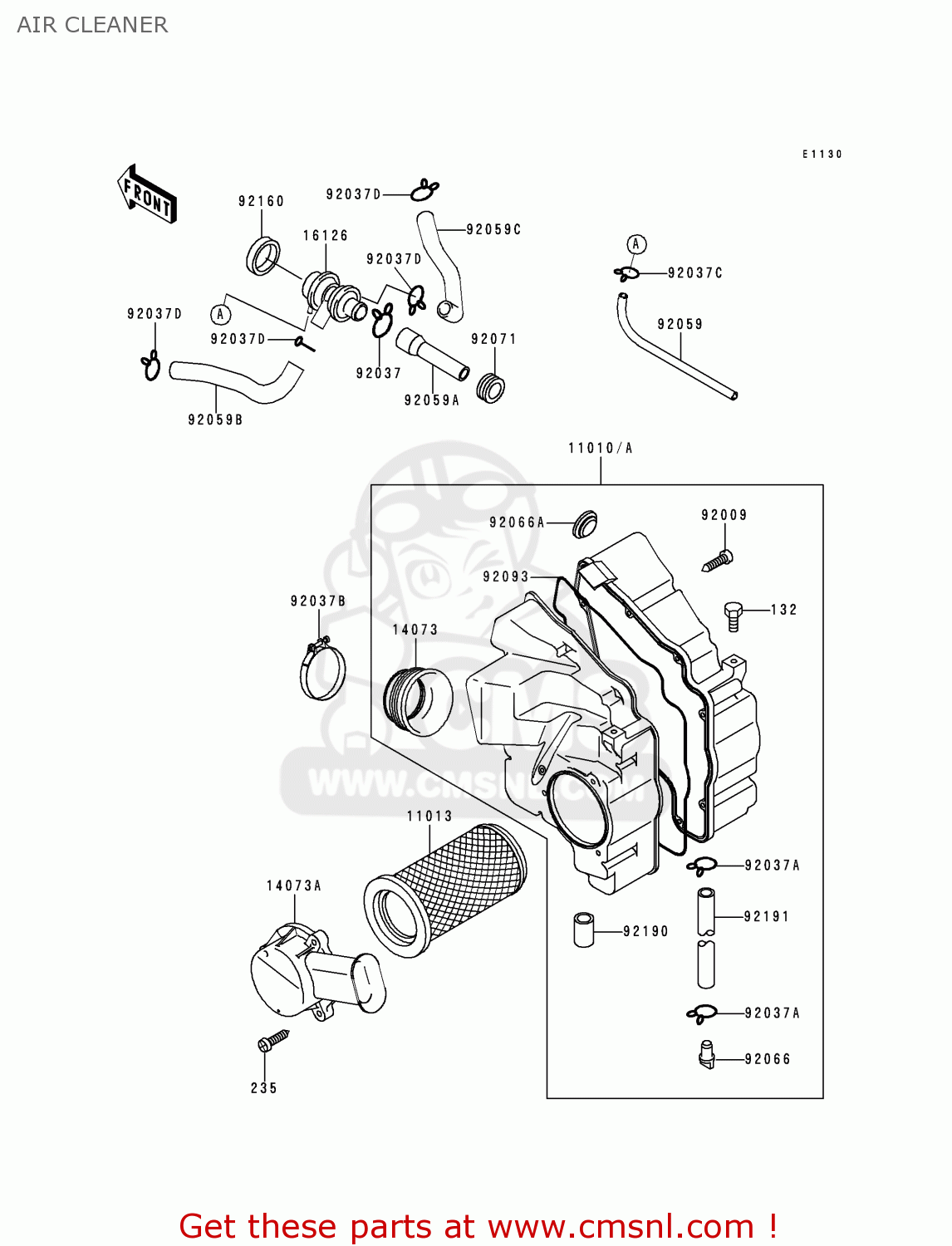

Air cleaner diagram ER500B3 ER5 1999 FRANCE NL FG
AIR CLEANER ER500B3 ER5 1999 FRANCE NL FG
×
prices are in EUR
ref
part #
description
quantity
11010
110101712
ref: 11010
FG
FILTER-ASSY-AIR
€ 195.00
11010A
110101713
ref: 11010A
FRNL
FILTER-ASSY-AIR
€ 203.00
11013
110131261
ref: 11013
ELEMENT-AIR FILTER
€ 18.00
14073
140731674
ref: 14073
DUCT,AIR FILTER
€ 18.50
14073A
140731675
ref: 14073A
DUCT,INTAKE
€ 15.50
16126
161261005
ref: 16126
FG
VALVE,AIR SWITCH
€ 130.50
92009
920091399
ref: 92009
SCREW,TAPPING,5X20
€ 2.00
92037
920371076
ref: 92037
FG
CLAMP,TUBE
€ 4.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92037B
920371554
ref: 92037B
CLAMP
€ 7.00
92037C
920371712
ref: 92037C
FG
CLAMP
€ 3.00
92037D
92037213
ref: 92037D
FG
CLAMP, BREATHER TUBE
€ 2.50
92059
920591032
ref: 92059
FG
TUBE,4X9X190M/M
€ 12.50
92059A
920591770
ref: 92059A
FG
TUBE,AIR FILTER-ACV
€ 9.00
92059B
920591771
ref: 92059B
FG
TUBE,AIR SWITCH,LH
€ 14.50
92059C
920591772
ref: 92059C
FG
TUBE,AIR SWITCH,RH
€ 14.00
92066
920661211
ref: 92066
PLUG
€ 5.50
92066A
920661321
ref: 92066A
FRNL
PLUG,25MM
€ 8.50
92071
920711028
ref: 92071
FG
GROMMET AIR FILTER
€ 4.50
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
235
235B0620
ref: 235
SCREW-PAN-WP-CROS
€ 2.50
92093
920931423
ref: 92093
SEAL,AIR FILTER CASE
€ 6.00
92160
921601454
ref: 92160
FG
DAMPER,VALVE
€ 10.50
92190
921901421
ref: 92190
TUBE,FITTING-FILTER C
€ 4.50
92191
921911139
ref: 92191
TUBE
€ 8.50
