CHASSIS ELECTRICAL EQUIPMENT

ER500B3 ER5 1999 FRANCE NL FG

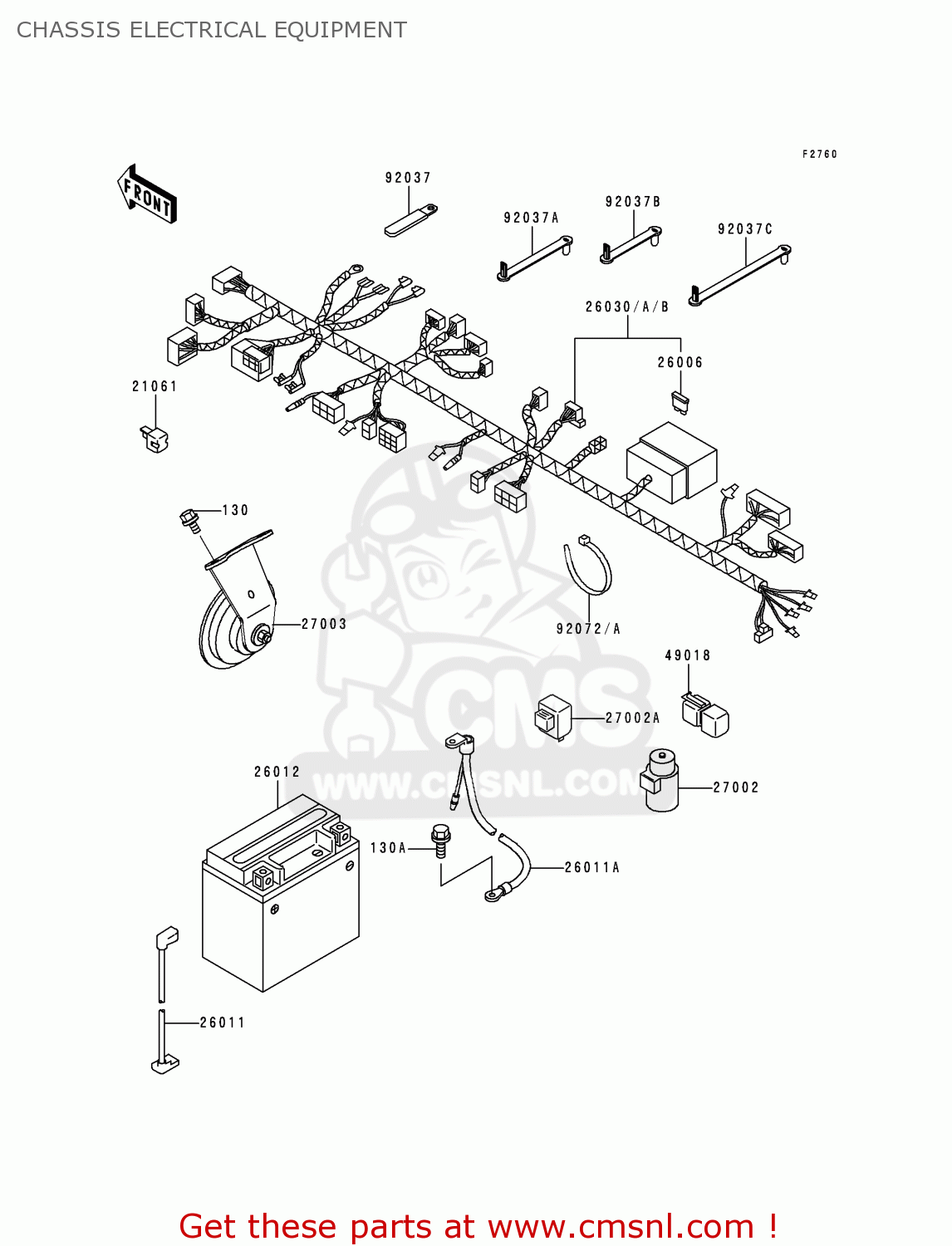

Chassis electrical equipment diagram ER500B3 ER5 1999 FRANCE NL FG

CHASSIS ELECTRICAL EQUIPMENT ER500B3 ER5 1999 FRANCE NL FG
CHASSIS ELECTRICAL EQUIPMENT ER500B3 ER5 1999 FRANCE NL FG
CHASSIS ELECTRICAL EQUIPMENT ER500B3 ER5 1999 FRANCE NL FG
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130A
130V0610
ref: 130A
BOLT-FLANGED,6X10
130V0610
€ 0.50
21061
210611003
ref: 21061
RECTIFIER
210611003
€ 25.00
26006
260061068
ref: 26006
FUSE, 10A-R
€ 3.00
26011
260111656
ref: 26011
WIRE-LEAD,BATTERY(-)
€ 16.50
26011A
260111657
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 25.50
26012
260121330
ref: 26012
BATTERY,YTX12BS,12V10
€ 120.50
26030A
260301542
ref: 26030A
HARNESS,MAIN
€ 275.50
27002
270021051
ref: 27002
RELAY-ASSY
270021051
€ 32.00
27002A
270021101
ref: 27002A
RELAY-ASSY,TURN SIGNA
270021101
€ 49.50
27003
270031405
ref: 27003
HORN
270031405
€ 55.50
49018
490181052
ref: 49018
DIODE
490181052
€ 35.50
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
920371163
€ 4.50
92037B
920371290
ref: 92037B
CLAMP,CARBURETOR
920371290
€ 4.50
92037C
920371903
ref: 92037C
CLAMP
920371903
€ 5.00
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721197
ref: 92072A
BAND
920721197
€ 5.00
