CARBURETOR
ER500B3 ER5 1999 FRANCE NL FG

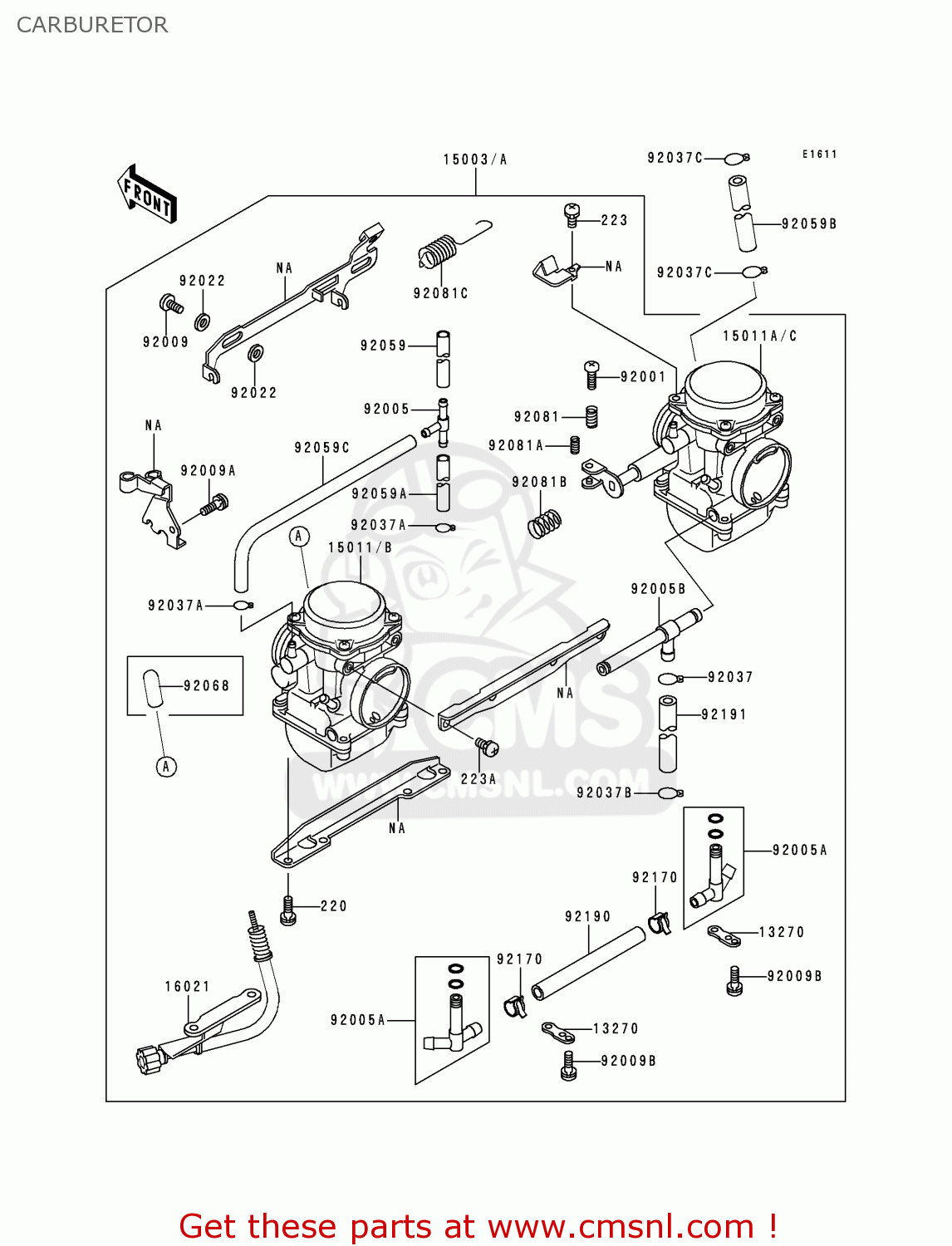

Carburetor diagram ER500B3 ER5 1999 FRANCE NL FG
CARBURETOR ER500B3 ER5 1999 FRANCE NL FG
×
prices are in EUR
ref
part #
description
quantity
13270
132701063
ref: 13270
PLATE,JOINT STAY
€ 21.00
15003
150031305
ref: 15003
FG
CARBURETOR-ASSY
€ 1,212.00
15003A
150031312
ref: 15003A
FRNL
CARBURETOR-ASSY
€ 1,584.00
15011
150111306
ref: 15011
FG
CARBURETOR,LH
€ 823.50
15011A
150111307
ref: 15011A
FG
CARBURETOR,RH
€ 963.00
15011B
150111310
ref: 15011B
FRNL
CARBURETOR,LH
€ 1,011.50
15011C
150111311
ref: 15011C
FRNL
CARBURETOR,RH
€ 1,011.50
16021
160211214
ref: 16021
SCREW-THROTTLE STOP
€ 58.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051119
ref: 92005
FITTING,T-TYPE
€ 17.50
92005A
920051291
ref: 92005A
FITTING
€ 26.50
92005B
920051325
ref: 92005B
FITTING
€ 37.00
92009
920091262
ref: 92009
SCREW
€ 4.00
92009A
920091365
ref: 92009A
SCREW
€ 4.50
92009B
920091705
ref: 92009B
SCREW 4X8
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371194
ref: 92037A
CLAMP,TUBE,TAP DIAPRM
€ 4.00
92037B
920371531
ref: 92037B
CLAMP,TUBE
€ 3.50
92037C
920371610
ref: 92037C
CLAMP
€ 1.50
92059
920591494
ref: 92059
TUBE,7X11X400
€ 21.00
92059A
920591612
ref: 92059A
TUBE,11X7X55
€ 17.00
92059B
920591617
ref: 92059B
TUBE,4X9X330
€ 8.00
92059C
920591883
ref: 92059C
TUBE,7X11X160
€ 24.50
92068
92068006
ref: 92068
FRNL
RUBBER PLUG
€ 2.50
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811876
ref: 92081B
SPRING
€ 6.00
92081C
920811893
ref: 92081C
SPRING,STARTER LEVER
€ 12.50
92170
921701504
ref: 92170
CLAMP
€ 3.00
92190
921901542
ref: 92190
TUBE,WATER
€ 9.00
92191
921911145
ref: 92191
TUBE
€ 6.50
