SUSPENSION/SHOCK ABSORBER

EN500C9 VULCAN500LTD 2004 USA CALIFORNIA CANADA

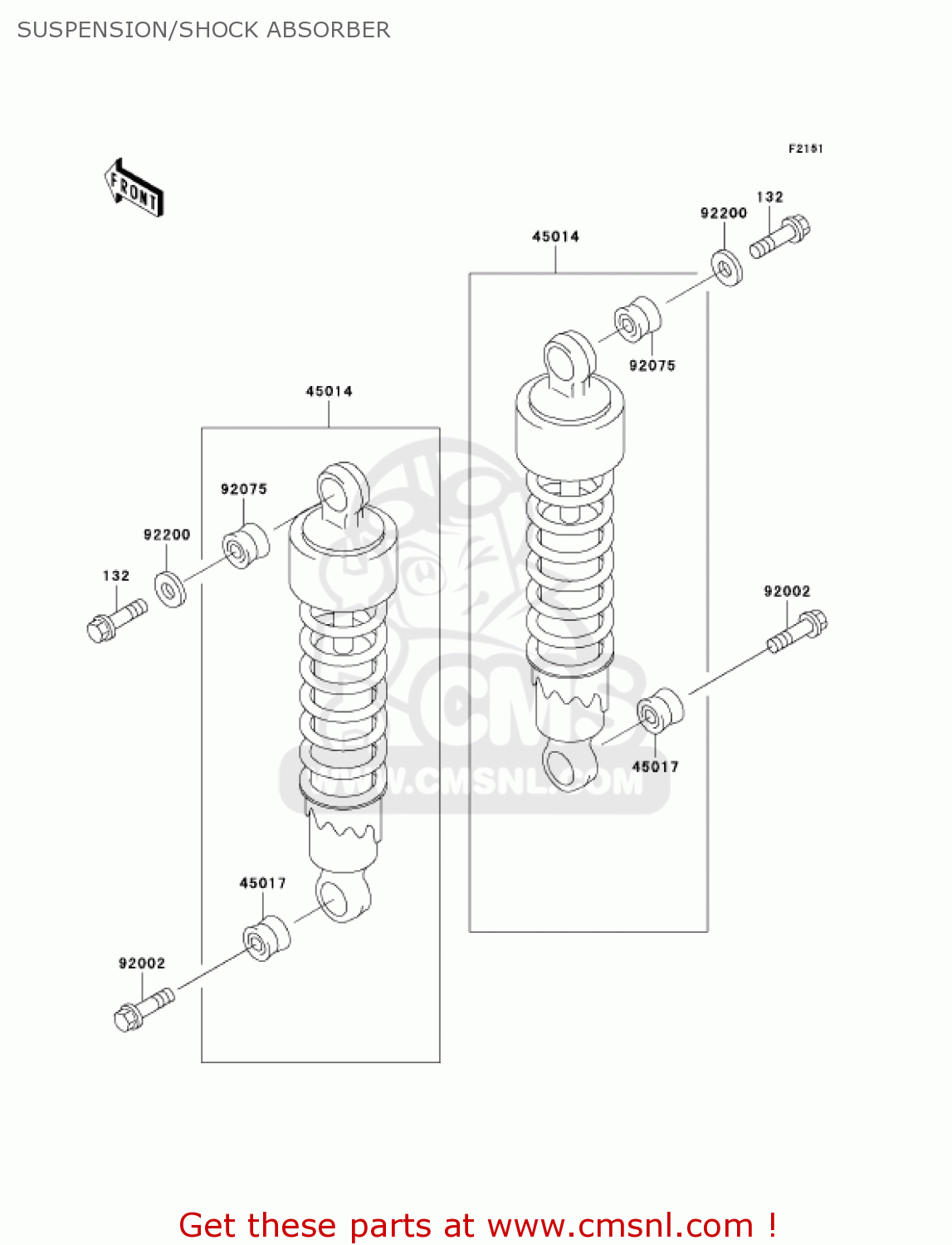

Suspension/shock absorber diagram EN500C9 VULCAN500LTD 2004 USA CALIFORNIA CANADA

SUSPENSION/SHOCK ABSORBER EN500C9 VULCAN500LTD 2004 USA CALIFORNIA CANADA

SUSPENSION/SHOCK ABSORBER EN500C9 VULCAN500LTD 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

132E0814

132E0814
ref: 132E0814

BOLT-FLANGED-SMALL

€ 2.50

45014

450141628
ref: 45014

SHOCKABSORBER

€ 299.00

45017

45017019
ref: 45017

DAMPER,SHOCKABSORBER,

€ 13.00

92002

920021829
ref: 92002

BOLT,FLANGED,10X35

€ 5.00

92075

920751141
ref: 92075

BUSHING,SHOCK ABSORBE

€ 10.00

92200

922001293
ref: 92200

WASHER,8.5X35X2.3

€ 3.00
