CARBURETOR PARTS

EN500C9 VULCAN500LTD 2004 USA CALIFORNIA CANADA

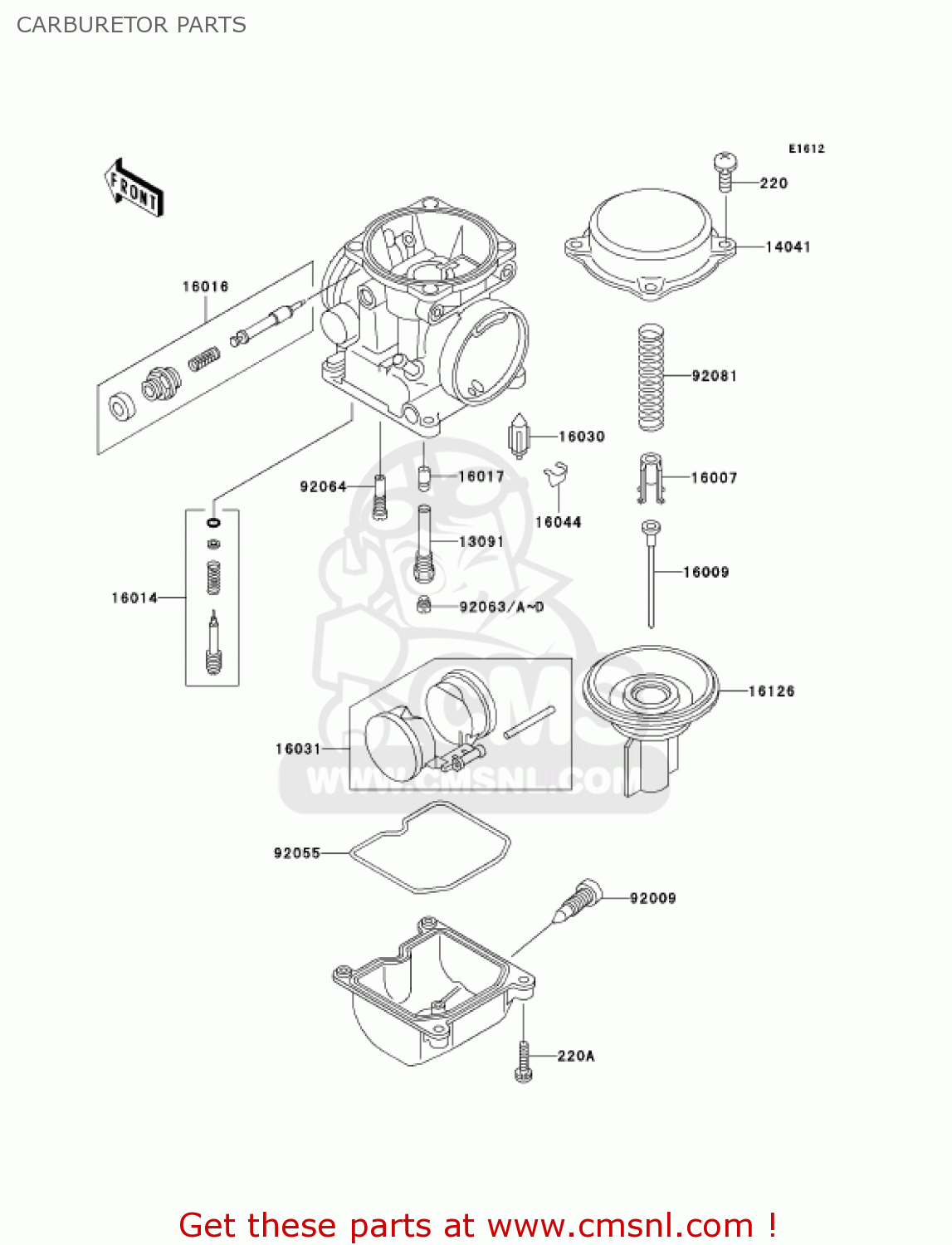

Carburetor parts diagram EN500C9 VULCAN500LTD 2004 USA CALIFORNIA CANADA

CARBURETOR PARTS EN500C9 VULCAN500LTD 2004 USA CALIFORNIA CANADA
CARBURETOR PARTS EN500C9 VULCAN500LTD 2004 USA CALIFORNIA CANADA
CARBURETOR PARTS EN500C9 VULCAN500LTD 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
220
220D0408
ref: 220
SCREW-PAN-CROS
220D0408
€ 0.50
220A
220D0414
ref: 220A
SCREW-PAN-CROS
220D0414
€ 2.00
13091
130911713
ref: 13091
HOLDER,NEEDLE JET
130911713
€ 20.00
14041
140411076
ref: 14041
TOP-CHAMBER
140411076
€ 68.00
16007
160071120
ref: 16007
SEAT-SPRING
160071120
€ 16.50
16009
160091895
ref: 16009
NEEDLE-JET,N2WE
160091895
€ 24.00
16014
160141081
ref: 16014
SCREW-PILOT AIR
160141081
€ 15.50
16016
160161092
ref: 16016
PLUNGER
160161092
€ 40.50
16017
160171376
ref: 16017
JET,NEEDLE
€ 24.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311077
ref: 16031
FLOAT
160311077
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16126
161261160
ref: 16126
VALVE,VACUUM
161261160
€ 159.50
92009
920091551
ref: 92009
SCREW,DRAIN
920091551
€ 6.50
92055
920551222
ref: 92055
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92063
920631005
ref: 92063
(RACING USE ONLY)
JET-MAIN,#98
920631005
€ 10.00
92063A
920631008
ref: 92063A
(RACING USE ONLY)
JET-MAIN,#100
920631008
€ 9.00
92063B
920631009
ref: 92063B
(RACING USE ONLY)
JET-MAIN,#105
920631009
€ 10.00
92063C
920631090
ref: 92063C
MAIN JET,2ND,#102
€ 10.00
92063D
920631116
ref: 92063D
(RACING USE ONLY)
JET-MAIN,#108
920631116
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
920641101
€ 11.50
92081
920811925
ref: 92081
SPRING,VACUUM VALVE
920811925
€ 16.00
