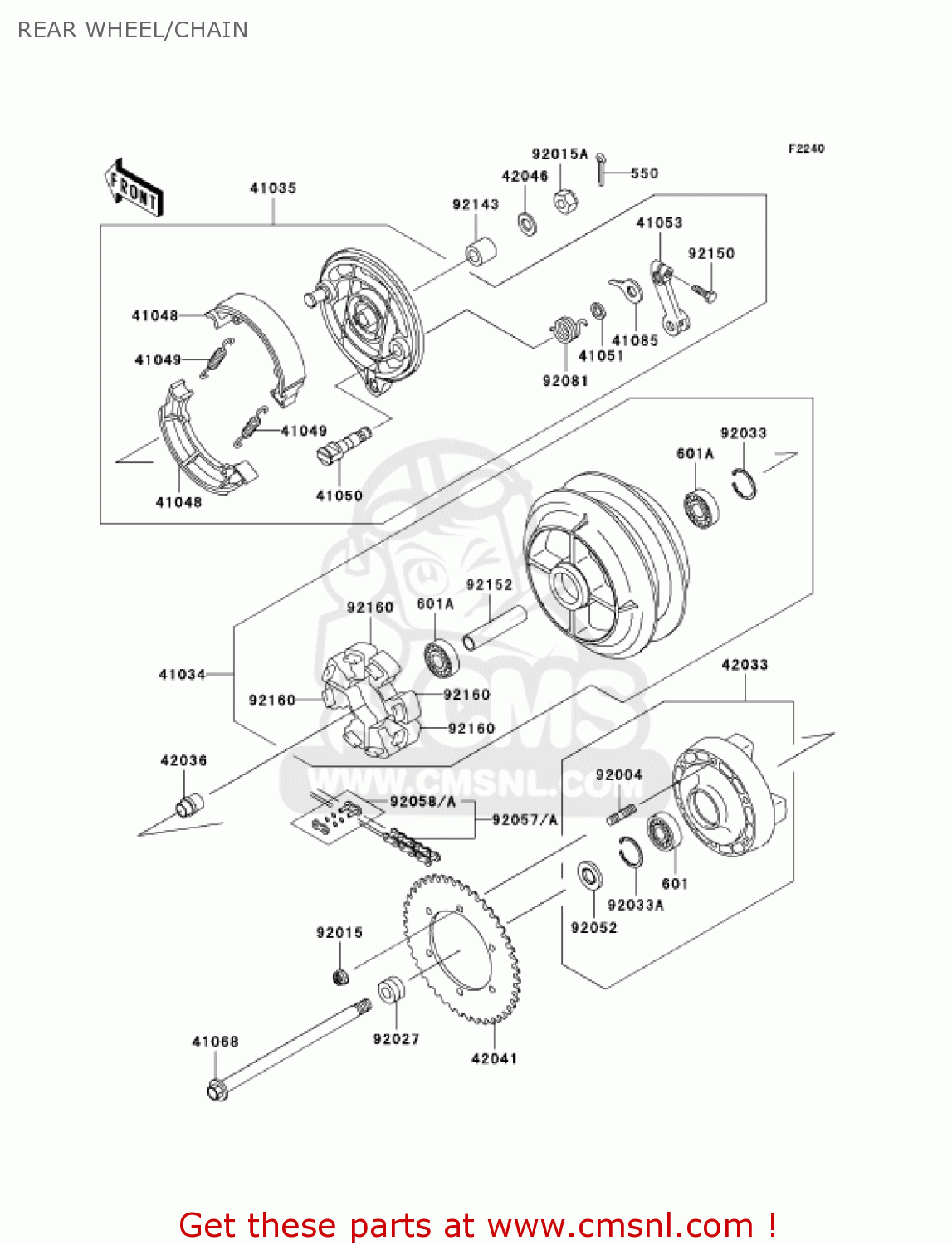

REAR WHEEL/CHAIN

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6205UG
ref: 601

BEARING-BALL,#6205UG

€ 27.00

601A

601B6303UU
ref: 601A

BEARING-BALL,6303LLUC

€ 30.50

41034

410341258
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 980.50

41035

410351485
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 426.50

41048

410481070
ref: 41048

SHOE-BRAKE (NAS)

€ 26.00

41049

41049012
ref: 41049

SPRING, BRKE SHOE

€ 6.00

41050

410501059
ref: 41050

CAM-BRAKE

€ 41.00

41051

41051003
ref: 41051

DUST SHIELD-BRAKE CAM

€ 2.50

41053

410531072
ref: 41053

LEVER-BRAKE CAM

€ 37.00

41068

410681377
ref: 41068

AXLE,RR

€ 49.50

41085

410851054
ref: 41085

INDICATOR

€ 9.00

42033

420331219
ref: 42033

COUPLING-ASSY,RR HUB

€ 194.50

42036

420361328
ref: 42036

SLEEVE,RR HUB,L=28

€ 34.00

42041

420411474
ref: 42041

SPROCKET-HUB,42T

€ 42.50

42046

42046009
ref: 42046

WASHER-SLEEVE

€ 5.00

92004

920041275
ref: 92004

STUD

€ 6.50

92015

920151335
ref: 92015

NUT,FLANGED,10MM

€ 1.50

92015A

920151951
ref: 92015A

NUT,CASTLE,16MM

€ 8.00

92027

920271368
ref: 92027

COLLAR,REAR AXLE,LH,L

€ 20.00

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331043
ref: 92033A

RING,SNAP,56.2M/M

€ 6.00

92052

92052006
ref: 92052

OIL SEAL WTC35527

€ 6.50

92057A

920570049
ref: 92057A

CHAIN,DRIVE,EK520MVXL

€ 226.00

92058

920580002
ref: 92058

JOINT-CHAIN,DRIVE

€ 8.50

92081

920811814
ref: 92081

SPRING,BRAKE CAM LEVE

€ 6.50

92143

921431898
ref: 92143

COLLAR

€ 15.50

92150

921501797
ref: 92150

BOLT

€ 3.50

92152

921521117
ref: 92152

COLLAR,RR HUB,L=101

€ 19.50

92160

921601697
ref: 92160

DAMPER,SHOCK,RR HUB

€ 16.00
