ENGINE MOUNT

EN500C9 VULCAN500LTD 2004 USA CALIFORNIA CANADA

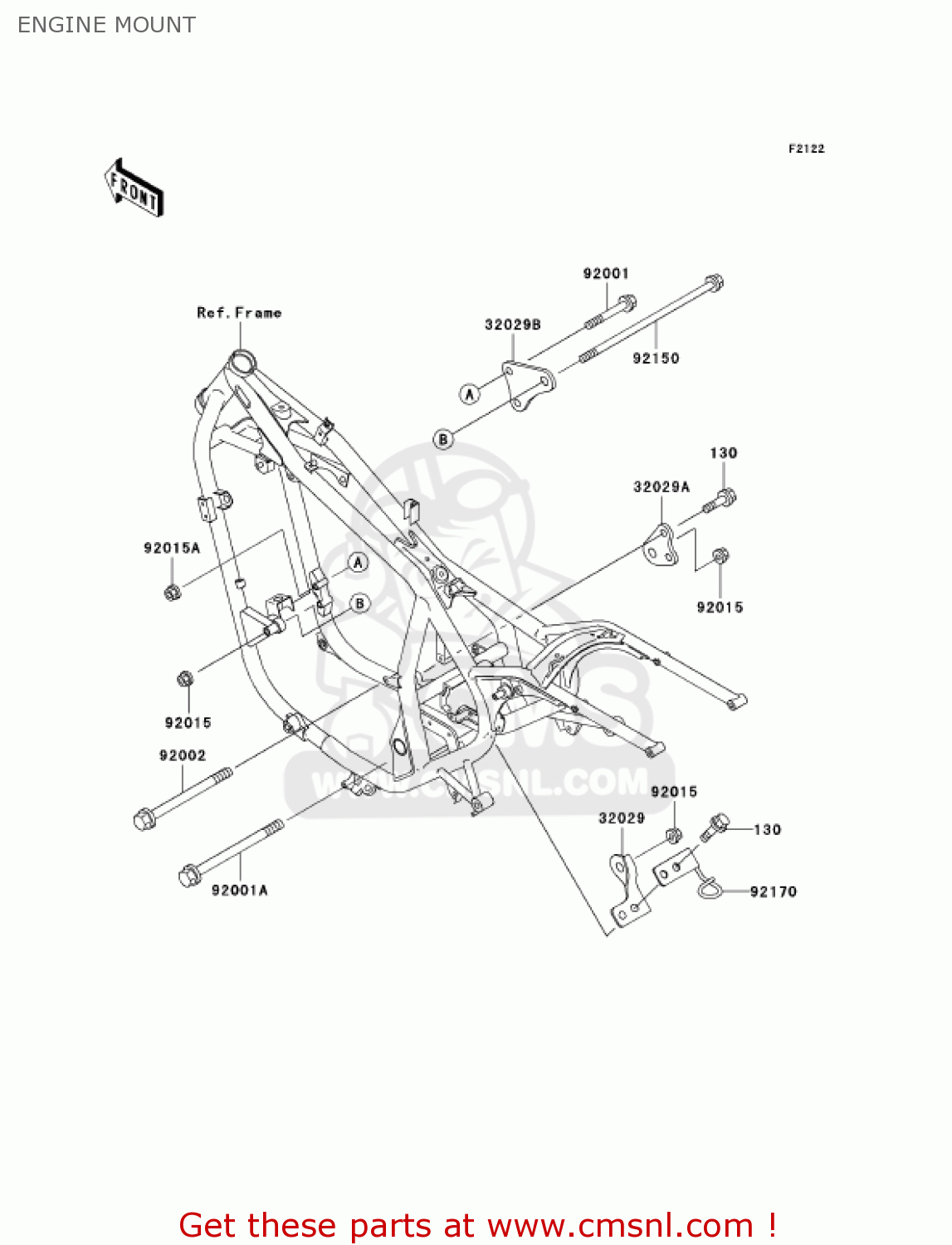

Engine mount diagram EN500C9 VULCAN500LTD 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0816
ref: 130

BOLT-FLANGED,8X16,BLA

€ 0.50

32029

320291379
ref: 32029

BRACKET-ENGINE,RR,LWR

€ 8.50

32029A

320291974
ref: 32029A

BRACKET-ENGINE,RR,RH,

€ 6.50

32029B

320291975
ref: 32029B

BRACKET-ENGINE,FR,RH

€ 9.50

92001

920011613
ref: 92001

BOLT,FLANGED,8X45

€ 3.00

92001A

920011621
ref: 92001A

BOLT,FLANGED,10X180

€ 15.00

92002

920021470
ref: 92002

BOLT,FLANGED,10X170

€ 13.50

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151251
ref: 92015A

NUT,FLANGED,8MM,BLACK

€ 1.50

92150

921501742
ref: 92150

BOLT

€ 13.00

92170

921701711
ref: 92170

CLAMP,HOSE

€ 13.50
