TRANSMISSION

EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA

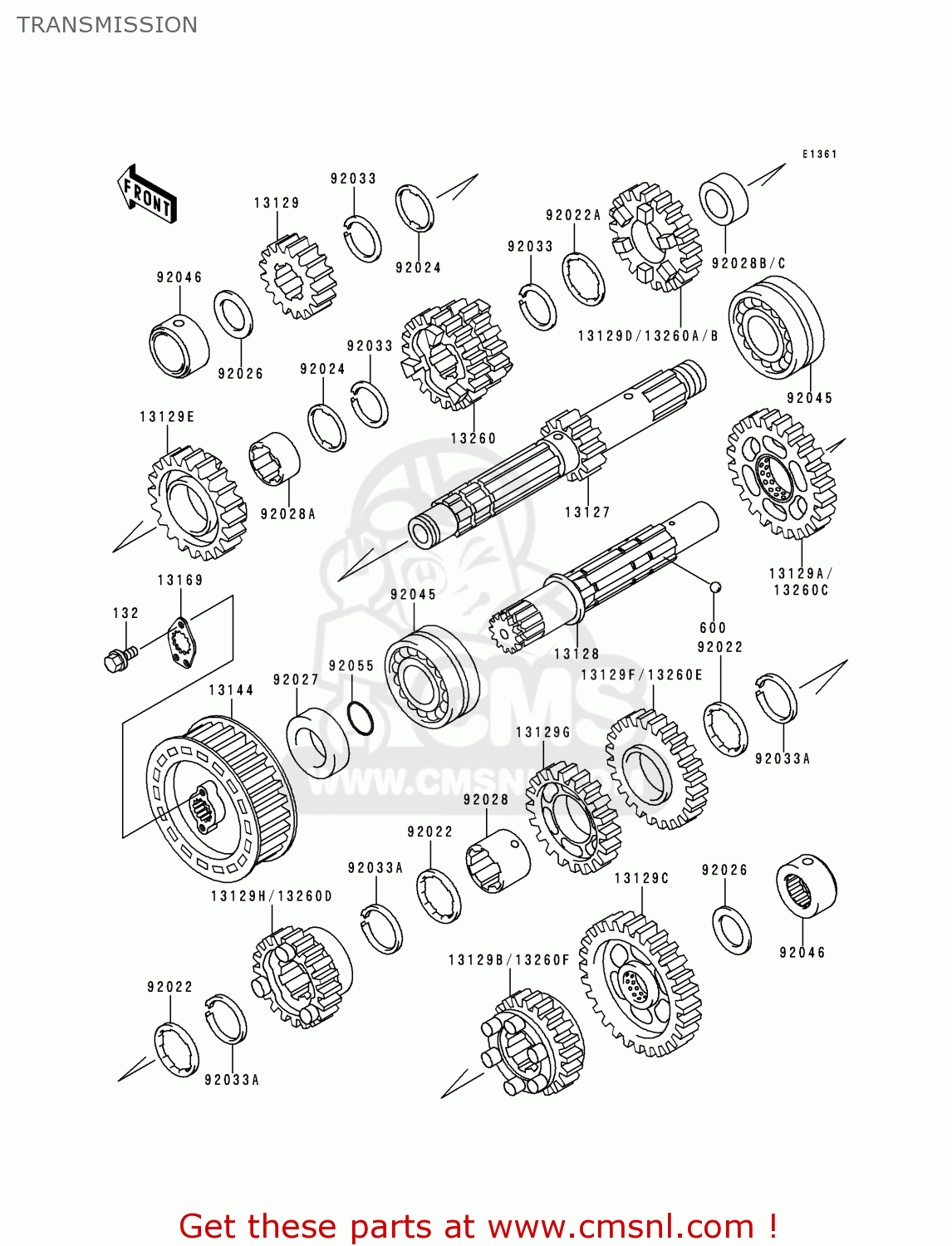

Transmission diagram EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA

TRANSMISSION EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA
TRANSMISSION EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA
TRANSMISSION EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13127
131271148
ref: 13127
SHAFT-TRANSMISSION IN
€ 187.50
13128
131281118
ref: 13128
SHAFT-TRANSMISSION OU
€ 132.50
13129
131291077
ref: 13129
2ND GEAR,DRIVE,18T
€ 79.50
13129A
131291078
ref: 13129A
2ND GEAR,OUTPUT,32T
€ 75.50
13129B
131291083
ref: 13129B
GEAR,OUTPUT 5TH,25T
131291083
€ 114.50
13129C
131291564
ref: 13129C
GEAR,OUTPUT LOW,36T
131291564
€ 120.50
13129D
131291657
ref: 13129D
GEAR,INPUT 5TH,26T
€ 134.50
13129E
131291658
ref: 13129E
GEAR,INPUT TOP,27T
€ 107.00
13129F
131291659
ref: 13129F
GEAR,OUTPUT 3RD,29T
€ 44.00
13129G
131291660
ref: 13129G
GEAR,OUTPUT 4TH,27T
131291660
€ 113.50
13129H
131291662
ref: 13129H
GEAR,OUTPUT TOP,23T
131291662
€ 45.00
13144
131441115
ref: 13144
SPROCKET-OUTPUT,25T
131441115
€ 78.50
13169
131691893
ref: 13169
PLATE,SPROCKET
131691893
€ 8.00
13260
132601195
ref: 13260
GEAR,INPUT 3RD&4TH,21
€ 103.00
13260B
132601203
ref: 13260B
GEAR,INPUT 5TH,26T
132601203
€ 101.50
13260C
132601332
ref: 13260C
GEAR,OUTPUT 2ND,32T
132601332
€ 43.00
13260D
132601333
ref: 13260D
GEAR,OUTPUT TOP,23T
132601333
€ 113.50
13260E
132601387
ref: 13260E
GEAR,OUTPUT 3RD,29T
132601387
€ 40.50
13260F
132601388
ref: 13260F
GEAR,OUTPUT 5TH,25T
132601388
€ 127.50
92022
920221139
ref: 92022
WASHER,TOOTHED,28.3X3
920221139
€ 4.00
92022A
920221861
ref: 92022A
WASHER,TOOTHED,25.3X3
920221861
€ 4.00
92024
92024033
ref: 92024
WASHER,TOOTHED,25.5X3
92024033
€ 4.50
92026
920261022
ref: 92026
SPACER,20.3X30X2.0
920261022
€ 3.00
92027
920271857
ref: 92027
COLLAR,25X40X12
920271857
€ 18.50
92028
920281364
ref: 92028
BUSHING,OUTPUT 3RD&4T
920281364
€ 22.00
92028A
920281552
ref: 92028A
BUSHING,INPUT TOP GEA
920281552
€ 17.50
92028C
920281639
ref: 92028C
BUSHING
920281639
€ 14.00
92033
92033026
ref: 92033
CIRCLIP
92033026
€ 6.00
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
132G0608
€ 1.50
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
92033A
920331037
ref: 92033A
SNAP RING,25.9X1.2T
920331037
€ 3.00
92045
92045035
ref: 92045
BEARING-BALL,83993SH2
92045035
€ 66.50
92046
920461161
ref: 92046
BEARING-NEEDLE,NKZ20X
920461161
€ 46.00
92055
92055035
ref: 92055
O RING
92055035
€ 3.00
