CHASSIS ELECTRICAL EQUIPMENT

EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA

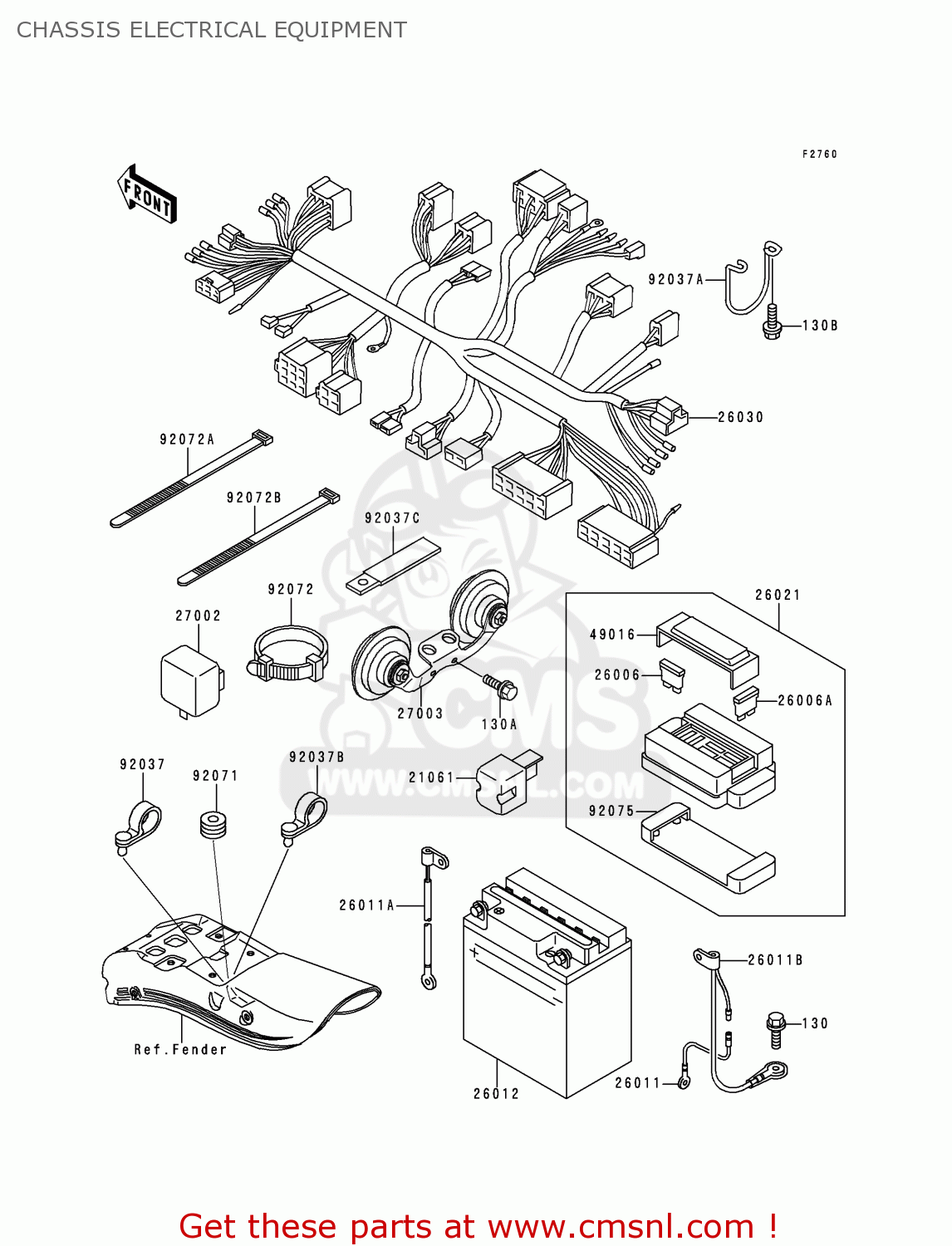

Chassis electrical equipment diagram EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
130A
130C0610
ref: 130A
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
130B
130C0614
ref: 130B
BOLT-FLANGED,6X14
130C0614
€ 1.50
21061
210611003
ref: 21061
RECTIFIER
210611003
€ 25.00
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111100
ref: 26011
WIRE-LEAD,ACCESSORY G
260111100
€ 7.00
26011A
260111466
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 21.00
26011B
260111467
ref: 26011B
WIRE-LEAD,BATTERY(-)
€ 20.50
26012
260121246
ref: 26012
BATTERY
€ 64.50
26021
260211077
ref: 26021
UNCTION BOX
260211077
€ 159.00
26030
260301012
ref: 26030
HARNESS,MAIN
€ 193.50
27002
270021053
ref: 27002
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27003
270031323
ref: 27003
HORN
270031323
€ 116.50
49016
490161125
ref: 49016
COVER-SEAL,FUSE
€ 6.00
92037
920371163
ref: 92037
CLAMP,HARNESS,REAR
920371163
€ 4.50
92037A
920371663
ref: 92037A
CLAMP,HARNESS
€ 6.00
92037B
920371903
ref: 92037B
CLAMP
920371903
€ 5.00
92037C
920371993
ref: 92037C
CLAMP
920371993
€ 3.50
92071
92071056
ref: 92071
GROMMET
92071056
€ 2.50
92072
92072031
ref: 92072
BAND,MIDDLE
92072031
€ 3.00
92072A
920721195
ref: 92072A
BAND,L=185
920721195
€ 1.00
92072B
920721197
ref: 92072B
BAND
920721197
€ 5.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
