BRAKE PEDAL/TORQUE LINK

EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA

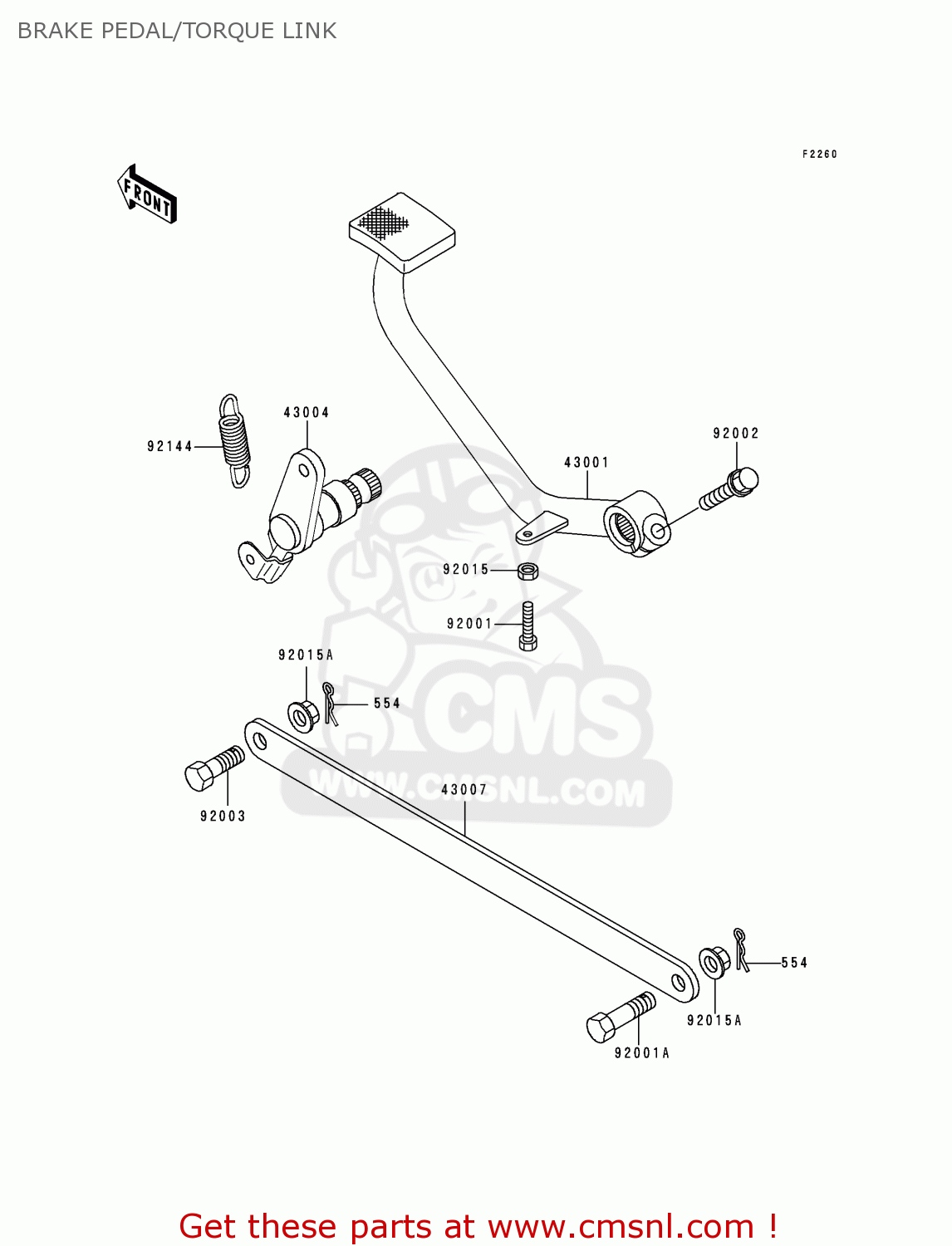

Brake pedal/torque link diagram EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

554

554A0800
ref: 554

PIN-SNAP,8MM

€ 1.00

43001

430011282
ref: 43001

LEVER-BRAKE,PEDAL

€ 44.00

43004

430041129
ref: 43004

SHAFT-BRAKE

€ 30.00

43007

430071026
ref: 43007

ROD-TORQUE,RR

€ 19.00

92001

920011090
ref: 92001

BOLT,HEX HEAD,6X25

€ 2.50

92001A

920011519
ref: 92001A

BOLT,10X37

€ 4.50

92002

920021201
ref: 92002

BOLT,FLANGED,8X25

€ 3.00

92003

92003096
ref: 92003

BOLT-TRQ LINK 10X29

€ 7.00

92015

920151391
ref: 92015

NUT,6MM

€ 2.00

92015A

920151428
ref: 92015A

NUT,FLANGED,10MM

€ 3.00

92144

921441053
ref: 92144

SPRING,BRAKE PEDAL RE

€ 6.00
