Genuine EN Kawasaki Parts delivered quickly!


IGNITION SWITCH/LOCKS/REFIECTORS

EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA

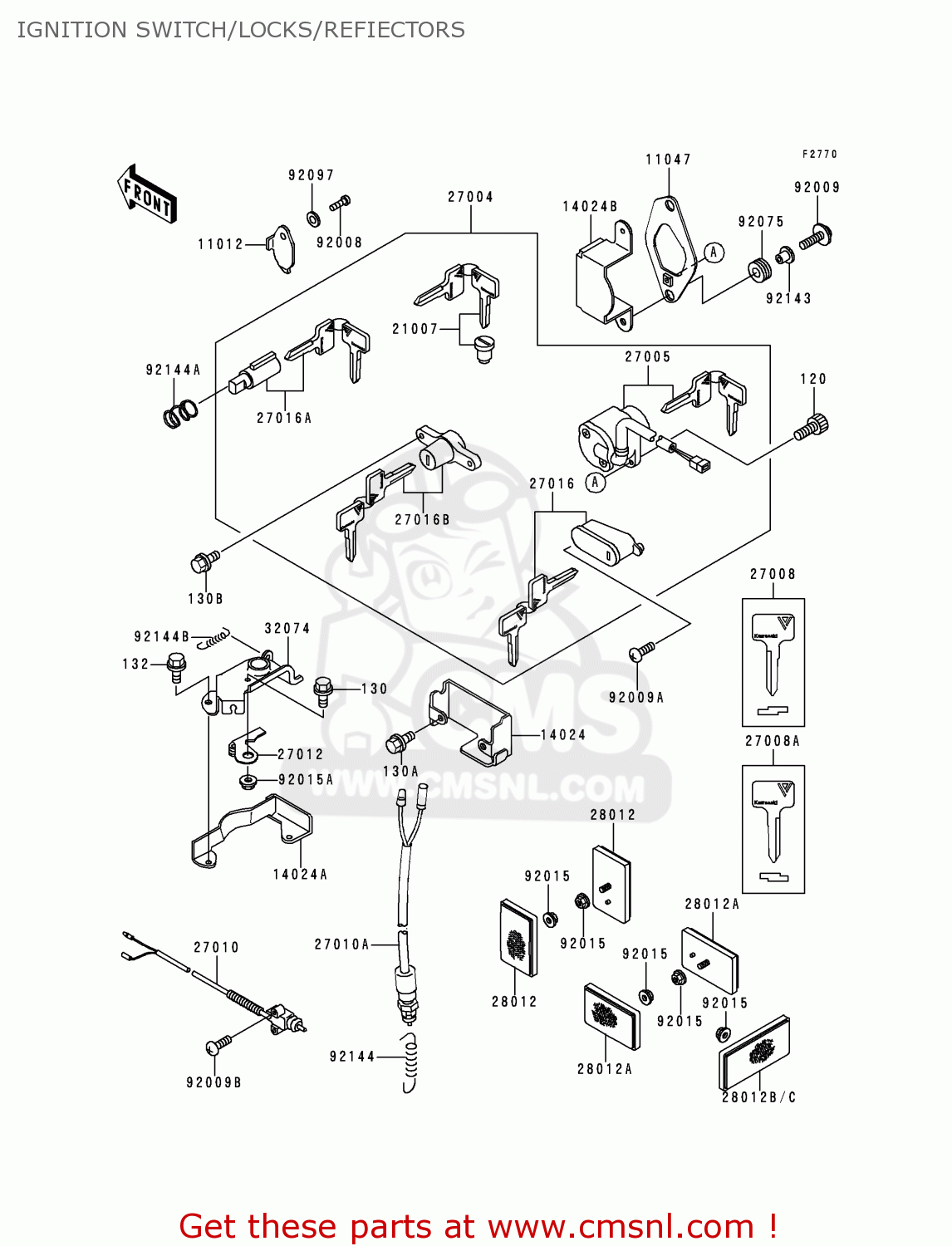

Ignition switch/locks/refiectors diagram EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA

IGNITION SWITCH/LOCKS/REFIECTORS EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFIECTORS EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFIECTORS EN500A3 VULCAN500 1992 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120P0512
ref: 120
BOLT,ALLEN,5X12
€ 1.00
130
130B0510
ref: 130
BOLT-FLANGED
130B0510
€ 1.50
130A
130C0510
ref: 130A
BOLT-FLANGED
€ 2.50
130B
130D0608
ref: 130B
BOLT-FLANGED
€ 0.50
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
132J0610
€ 1.50
11012
110121736
ref: 11012
CAP,STEERING LOCK
110121736
€ 4.50
11047
110471075
ref: 11047
BRACKET,IGNITION SWIT
110471075
€ 8.50
14024
140241882
ref: 14024
COVER,SEAT LOCK,RR
€ 7.50
14024A
140241952
ref: 14024A
COVER,SEAT LOCK,FR
140241952
€ 7.50
14024B
140241957
ref: 14024B
COVER,IGNITION SWITCH
140241957
€ 9.00
21007
210075024
ref: 21007
ROTOR,LOCK,TANK CAP
€ 50.50
27004
270045379
ref: 27004
SWITCH-ASSY
270045379
€ 257.50
27005
270051148
ref: 27005
SWITCH-ASSY-IGNITION
€ 183.50
27008
270081138
ref: 27008
KEY-LOCK,BLANK
270081138
€ 13.00
27008A
270081139
ref: 27008A
KEY-LOCK,BLANK
270081139
€ 13.00
27010
270101223
ref: 27010
SWITCH,SIDE STAND
270101223
€ 48.00
27010A
270101238
ref: 27010A
SWITCH,REAR BRAKE
270101238
€ 21.50
27012
270121421
ref: 27012
HOOK,SEAT LOCK
€ 8.50
27016
270165129
ref: 27016
LOCK-ASSY,HELMET
270165129
€ 58.00
27016A
270165131
ref: 27016A
LOCK-ASSY,STEERING
270165131
€ 66.50
27016B
270165162
ref: 27016B
LOCK-ASSY,SEAT
270165162
€ 44.00
28012
280121009
ref: 28012
REFLECTOR-REFLEX,FR
280121009
€ 16.00
28012A
280121051
ref: 28012A
REFLECTOR-REFLEX,RR
280121051
€ 15.50
28012C
280121077
ref: 28012C
REFLECTOR-REFLEX
280121077
€ 16.00
32074
320741141
ref: 32074
BRACKET-LOCK,SEAT
320741141
€ 13.50
92008
92008007
ref: 92008
SCREW-TAPPING
92008007
€ 2.50
92009
920091256
ref: 92009
SCREW,6X22,BLACK
920091256
€ 1.50
92009A
920091296
ref: 92009A
SCREW,5X12
920091296
€ 2.50
92009B
920091459
ref: 92009B
SCREW
920091459
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
920151259
€ 2.50
92015A
920151812
ref: 92015A
NUT,5MM
€ 2.00
92075
92075051
ref: 92075
DAMPER RUBBER
92075051
€ 2.50
92097
92097003
ref: 92097
WASHER
92097003
€ 2.50
92143
921431019
ref: 92143
COLLAR,L=7.4
921431019
€ 3.00
92144
921441141
ref: 92144
SPRING,REAR BRAKE SWI
921441141
€ 3.50
92144A
921441222
ref: 92144A
SPRING,STEERING LOCK
921441222
€ 2.50
92144B
921441520
ref: 92144B
SPRING
921441520
€ 2.50
