STAND(S)

EN450A4 LTD450 1988 EUROPE UK AR FG IT NR ST / LIQUID COOLED

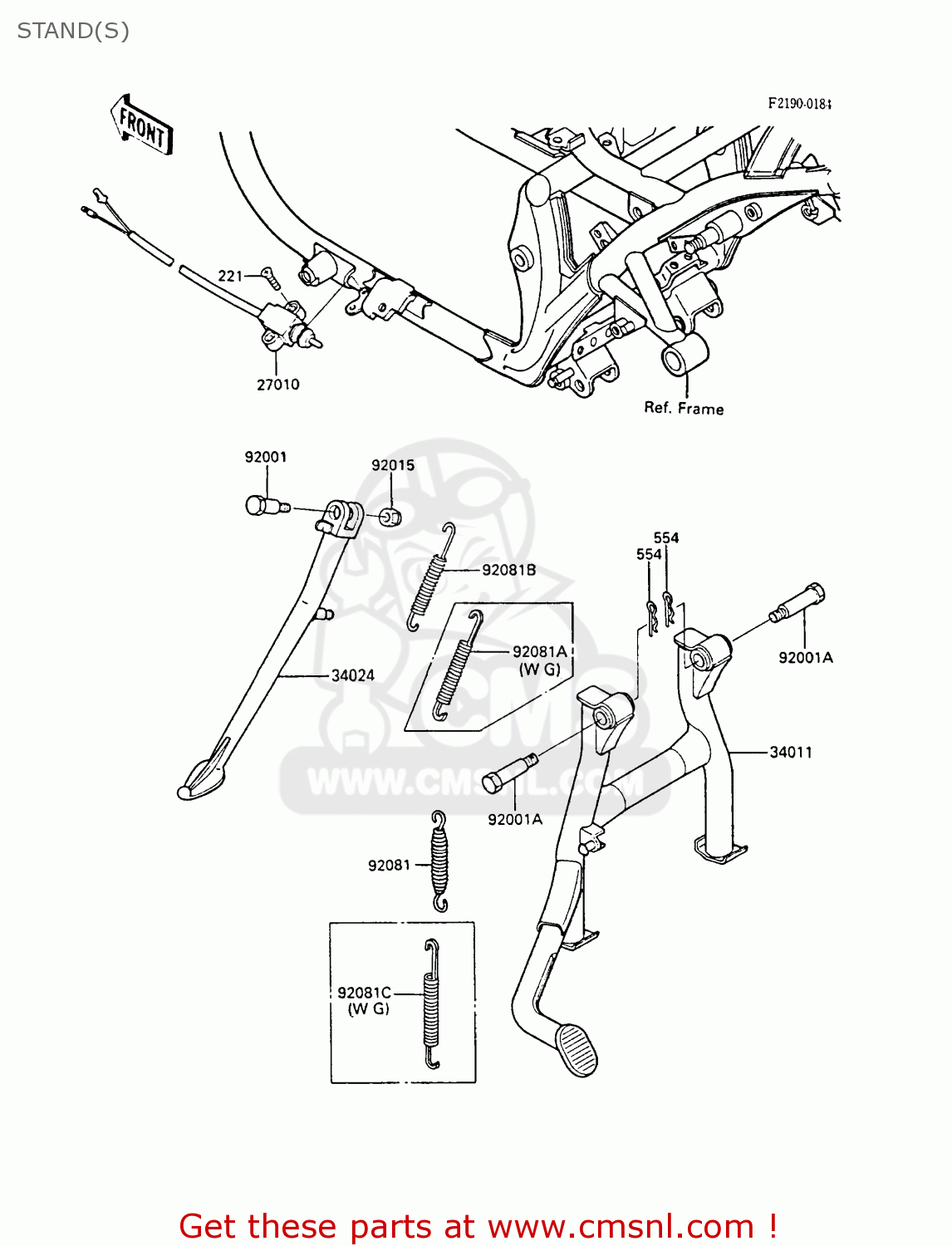

Stand(s) diagram EN450A4 LTD450 1988 EUROPE UK AR FG IT NR ST / LIQUID COOLED

prices are in EUR

ref

part #

description

quantity

221

221C0520
ref: 221

SCREW-CSK-CROS

€ 2.50

554

554A1000
ref: 554

PIN-SNAP,10MM

€ 1.00

27010

270101065
ref: 27010

SWITCH,SIDE STAND

€ 53.00

34011

340111119
ref: 34011

STAND-CENTER

€ 127.00

34024

340241189
ref: 34024

STAND-SIDE

€ 62.00

92001

920011543
ref: 92001

BOLT,SIDE STAND,BLACK

€ 8.00

92001A

920011818
ref: 92001A

BOLT,CENTER STAND,10M

€ 8.50

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92081

920811145
ref: 92081
AREUITNRSTUK

SPRING,MAIN STAND,R.H

€ 10.50

92081A

920811676
ref: 92081A
FG

SPRING,SIDE STAND

€ 10.00

92081B

920811727
ref: 92081B
AREUITNRSTUK

SPRING,SIDE STAND

€ 7.00

92081C

920811838
ref: 92081C
FG

SPRING,CENTER STAND

€ 12.50
