CARBURETOR PARTS

EN450A4 LTD450 1988 EUROPE UK AR FG IT NR ST / LIQUID COOLED

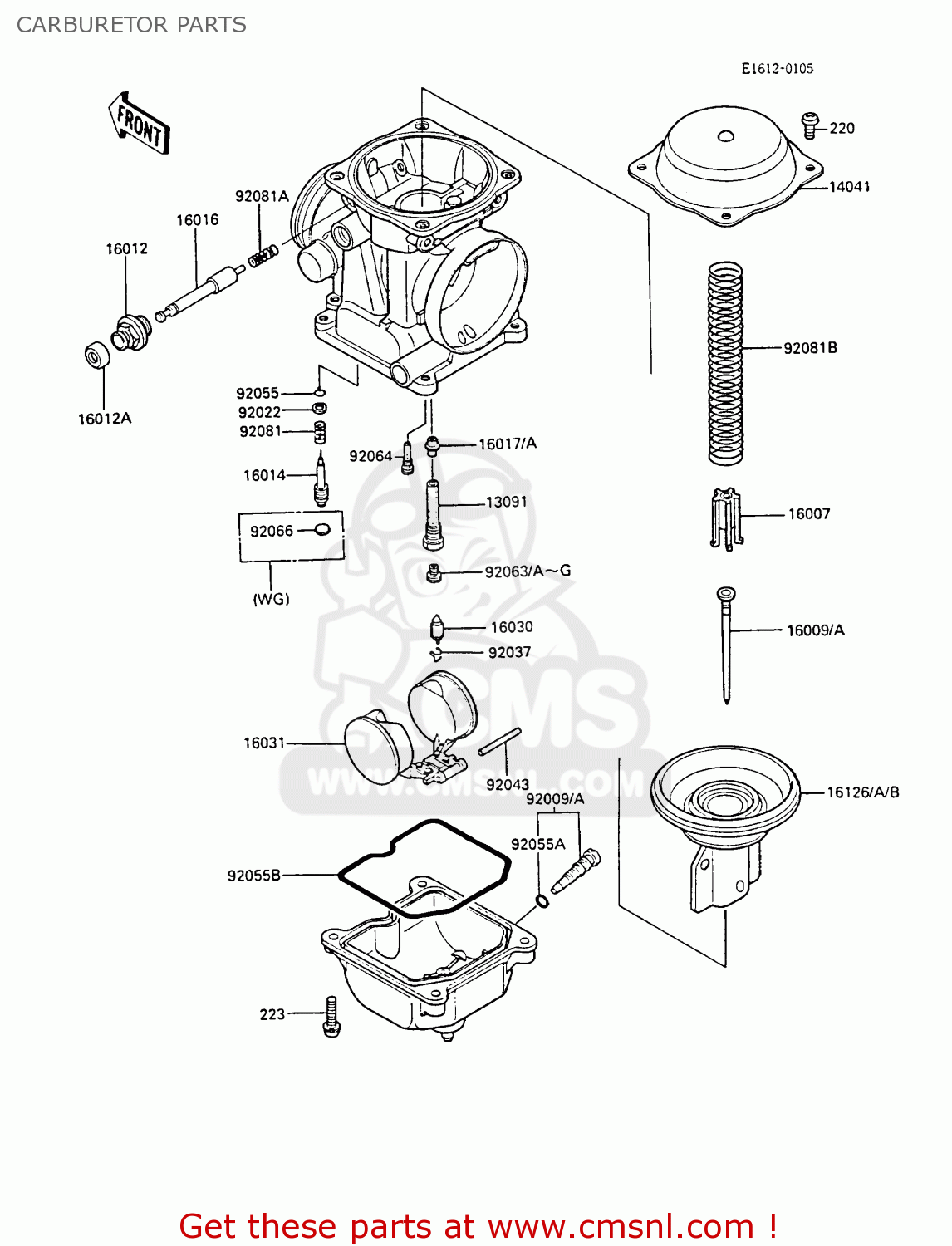

Carburetor parts diagram EN450A4 LTD450 1988 EUROPE UK AR FG IT NR ST / LIQUID COOLED

CARBURETOR PARTS EN450A4 LTD450 1988 EUROPE UK AR FG IT NR ST / LIQUID COOLED
CARBURETOR PARTS EN450A4 LTD450 1988 EUROPE UK AR FG IT NR ST / LIQUID COOLED
CARBURETOR PARTS EN450A4 LTD450 1988 EUROPE UK AR FG IT NR ST / LIQUID COOLED
prices are in EUR
ref
part #
description
quantity
13091
130911347
ref: 13091
HOLDER,NEEDLE JET
130911347
€ 20.00
14041
140411065
ref: 14041
COVER-COMP,MIXING CHA
140411065
€ 47.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091258
ref: 16009
AREUFGITNRUK
NEEDLE-JET,N31E
160091258
€ 18.50
16009A
160091467
ref: 16009A
ST
NEEDLE-JET
€ 14.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
160141054
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
160161061
€ 30.50
16017
160171208
ref: 16017
ST
JET-NEEDLE,#6
€ 37.00
16017A
160171277
ref: 16017A
AREUFGITNRUK
JET-NEEDLE
160171277
€ 37.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311056
ref: 16031
FLOAT
160311056
€ 39.00
16126
161261173
ref: 16126
AREUITNRUK
VALVE,VACUUM
161261173
€ 159.50
16126A
161261174
ref: 16126A
FGST
VALVE,VACUUM
161261174
€ 58.00
92009
920091095
ref: 92009
AREUITNRSTUK
SCREW,DRAIN
920091095
€ 10.00
92009A
920091434
ref: 92009A
FG
SCREW
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
16044007
€ 4.00
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551053
ref: 92055A
AREUITNRSTUK
O RING,DRAIN SCREW
920551053
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
920551222
€ 12.50
220
220B0408
ref: 220
SCREW-PAN-CROS
220B0408
€ 0.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
223C0416
€ 2.50
92063
920631009
ref: 92063
ST
JET-MAIN,#105
920631009
€ 10.00
92063A
920631071
ref: 92063A
AREUFGITNRUK
JET-MAIN,#118
920631071
€ 9.50
92063B
920631114
ref: 92063B
ST
JET-MAIN,#110
920631114
€ 9.50
92063C
920631114
ref: 92063C
AREUFGITNRUK
JET-MAIN,#110
920631114
€ 9.50
92063D
920631116
ref: 92063D
JET-MAIN,#108
920631116
€ 9.50
92063E
920631117
ref: 92063E
AREUFGITNRUK
JET-MAIN,#112
920631117
€ 9.50
92063F
920631117
ref: 92063F
ST
JET-MAIN,#112
920631117
€ 9.50
92063G
920631118
ref: 92063G
JET-MAIN,#115
920631118
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
920641101
€ 11.50
92066
920661051
ref: 92066
FGST
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.50
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
920811761
€ 6.00
92081B
920811874
ref: 92081B
SPRING,VACUUM VALVE
920811874
€ 17.50
