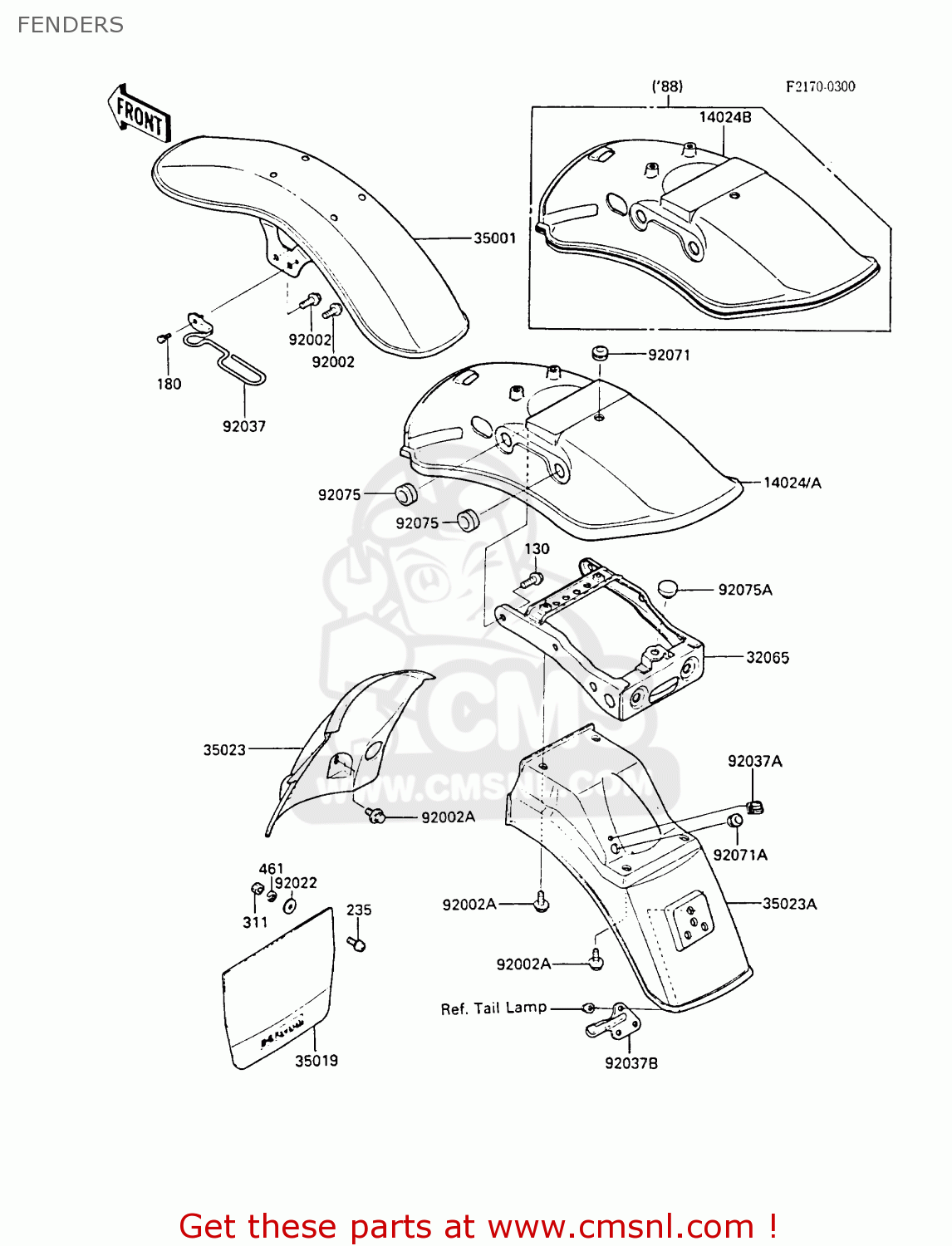

FENDERS

ref

part #

description

quantity

130

130D0820
ref: 130

BOLT-FLANGED

€ 0.50

180

180B0612
ref: 180

BOLT-UPSET-WS,6X12

€ 2.50

235

235B0614
ref: 235

SCREW-PAN-WP-CROS

€ 2.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

14024B

140255277H8
ref: 14024B

COVER,TAIL,EBONY

€ 107.50

32065

320651176
ref: 32065

BRACKET-FENDER

€ 67.00

35001

350011111
ref: 35001

FENDER-ASSY-FRONT,CR

€ 122.00

35019

35037026
ref: 35019

FLAP,FENDER,RR

€ 17.00

35023

350231127
ref: 35023

FENDER-REAR,FR

€ 46.50

35023A

3502311336Z
ref: 35023A

FENDER-REAR,RR,BLACK

€ 66.50

92002

920021200
ref: 92002

BOLT,FLANGED,8X16

€ 3.00

92002A

920021219
ref: 92002A

BOLT,6X16

€ 3.00

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92037

920371116
ref: 92037

CLAMP,CABLE

€ 12.50

92037A

920371634
ref: 92037A

CLAMP,HARNESS

€ 6.00

92037B

920371681
ref: 92037B

CLAMP,HARNESS

€ 7.00

92071

92071019
ref: 92071

GROMMET,10MM

€ 2.50

92071A

92071024
ref: 92071A

GROMMET

€ 3.00

92075

92075104
ref: 92075

DAMPER

€ 2.50

92075A

92075281
ref: 92075A

DAMPER,9X24X14

€ 4.00
