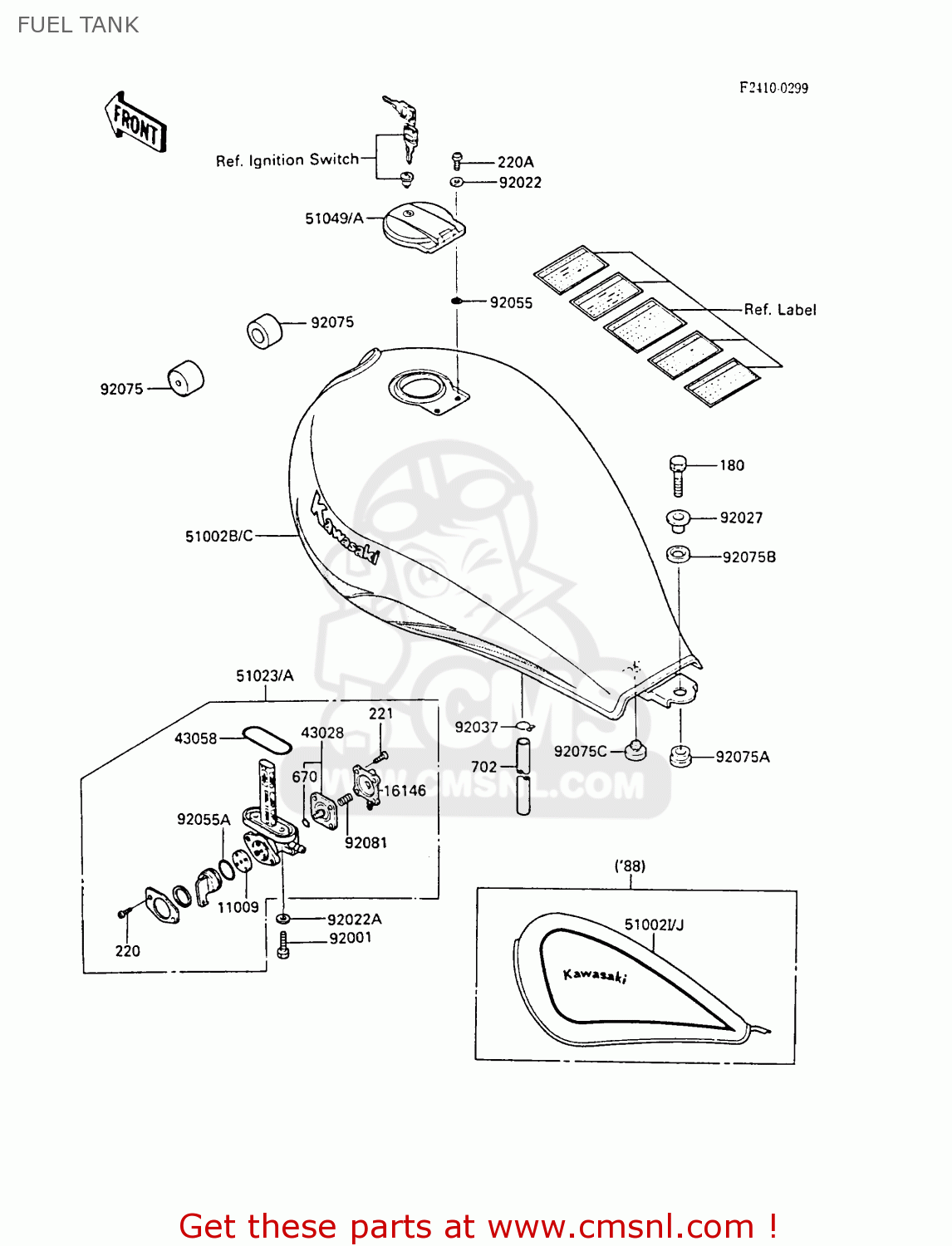

FUEL TANK

ref

part #

description

quantity

180

180D0625
ref: 180

BOLT-UPSET-WS,6X25

€ 2.50

220

220B0308
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220D0510
ref: 220A

SCREW-PAN-CROS

€ 0.50

221

221B0414
ref: 221

SCREW-CSR-CROS,4X14

€ 2.50

670

670B1504
ref: 670

O RING,4MM

€ 2.50

11009

110091188
ref: 11009

GASKET,TAP VALVE (NAS)

€ 4.00

16146

161461010
ref: 16146

COVER-ASSY,TAP DIAPHR

€ 17.00

43028

430281033
ref: 43028

DIAPHRAGM

€ 15.00

43058

51039003
ref: 43058

'O' RING

€ 4.00

51002I

510025393H8
ref: 51002I
AREUITNRSTUK

TANK-COMP-FUEL,EBONY

€ 651.00

51002J

510025446H8
ref: 51002J
FG

TANK-COMP-FUEL,EBONY

€ 651.00

51023A

510231142
ref: 51023A

TAP-ASSY,FUEL

€ 95.50

51049A

510491083
ref: 51049A

CAP-TANK,FUEL

€ 98.50

92001

920011091
ref: 92001

BOLT,6X20,FUEL TAP

€ 2.50

92022

920221038
ref: 92022

WASHER,PLAIN

€ 2.50

92022A

92022183
ref: 92022A

WASHER,6.2X11X1.5

€ 2.50

92027

92027251
ref: 92027

COLLAR,L=13.1

€ 1.00

92037

92037010
ref: 92037

CLAMP-FUEL PIPE

€ 2.50

92055

920551023
ref: 92055

ORING

€ 2.50

92055A

920551085
ref: 92055A

'O' RING,FUEL TAP LEV

€ 3.00

92075

92075125
ref: 92075

DAMPER RUBBER-FL TANK

€ 4.00

92075A

92075174
ref: 92075A

DAMPER,MALE

€ 3.00

92075B

92075175
ref: 92075B

DAMPER,FEMALE

€ 2.50

92075C

92075281
ref: 92075C

DAMPER,9X24X14

€ 4.00

92081

920811240
ref: 92081

SPRING,DIAPHRAGM VLV

€ 2.50

702

702A06600
ref: 702

TUBE-RUBBER

€ 14.50
