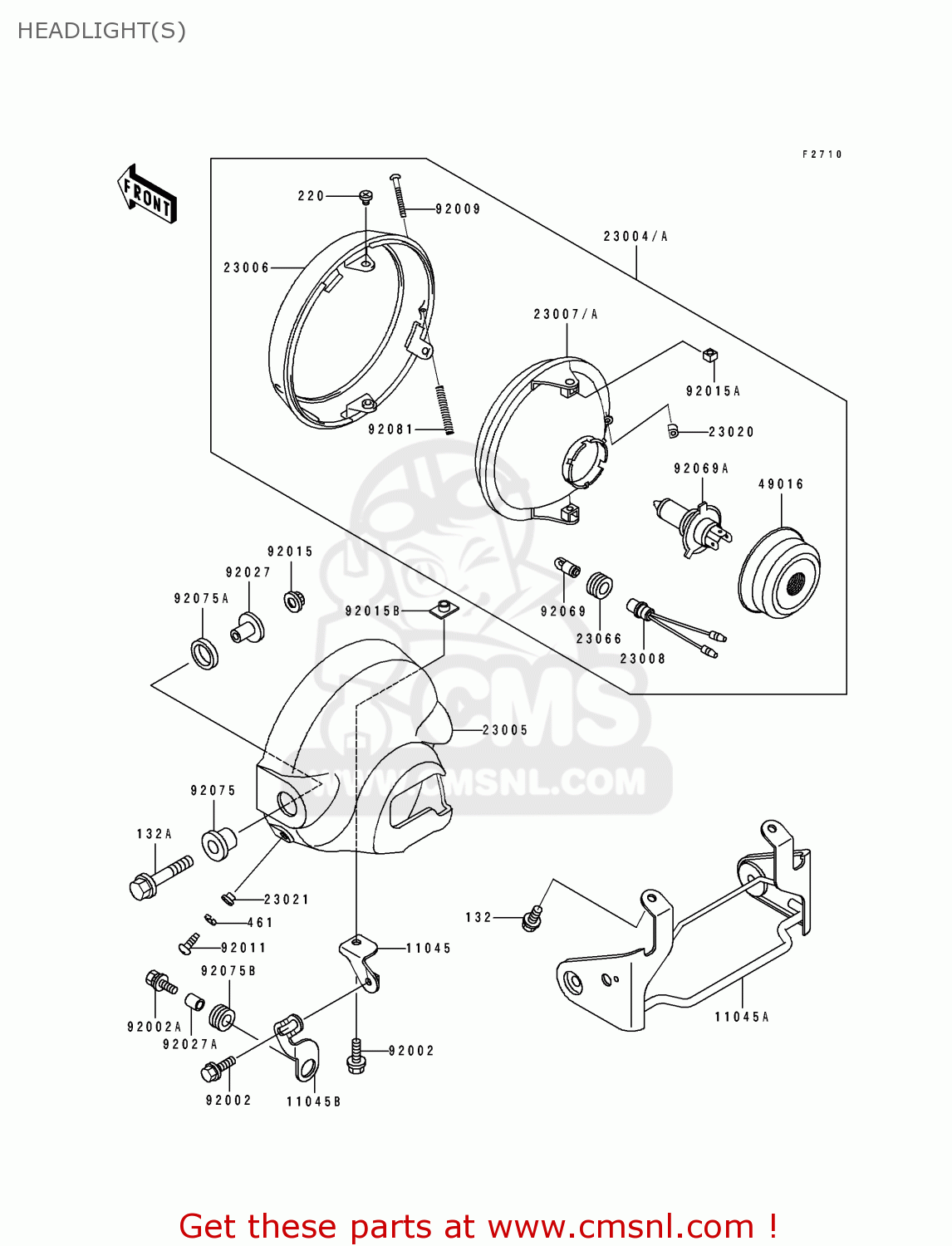

HEADLIGHT(S)

ref

part #

description

quantity

132

132E0616
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

132A

132E0840
ref: 132A

BOLT-FLANGED-SMALL

€ 4.00

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

11045

110451215
ref: 11045

BRACKET,HEAD LAMP BOD

€ 5.50

11045A

110451943
ref: 11045A

BRACKET,HEAD LAMP STA

€ 62.00

11045B

110451970
ref: 11045B

BRACKET,HEAD LAMP,LWR

€ 6.00

23004

230041190
ref: 23004
UK

LAMP-HEAD

€ 508.00

23004A

230041316
ref: 23004A
GR

LAMP-HEAD

€ 451.50

23005

230051058
ref: 23005

BODY-COMP-HEAD LAMP,C

€ 72.50

23006

230061055
ref: 23006

RIM-LAMP

€ 55.00

23007

230071135
ref: 23007
UK

LENS-COMP,HEAD LAMP

€ 86.00

23007A

230071266
ref: 23007A
GR

LENS-COMP,HEAD LAMP

€ 108.50

23008

23008038
ref: 23008

SOCKET-ASSY,PARKING L

€ 7.50

23020

23020018
ref: 23020

NUT,4MM,FOCUS ADJUST

€ 3.00

23021

23021010
ref: 23021

WASHER

€ 2.50

23066

23066008
ref: 23066

DAMPER,PARKING LAMP

€ 3.00

49016

490161046
ref: 49016

COVER-SEAL,HEAD LAMP

€ 7.50

92002

920021124
ref: 92002

BOLT,6X16

€ 2.50

92002A

920021137
ref: 92002A

BOLT,6X25

€ 2.50

92009

920091033
ref: 92009

SCREW,FOCUS ADJUSTING

€ 3.50

92011

92011024
ref: 92011

SCREW-PAN HEAD,5MM

€ 2.00

92015

920151014
ref: 92015

NUT,8MM

€ 0.50

92015A

920151157
ref: 92015A

NUT,5MM

€ 3.50

92015B

920151231
ref: 92015B

NUT,6MM,HEAD LAMP

€ 6.50

92027

920271131
ref: 92027

COLLAR,HEAD LAMP FITT

€ 6.00

92027A

92027162
ref: 92027A

COLLAR-REAR FENDER

€ 4.50

92069

92069071
ref: 92069

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A

BULB,12V-60155W

€ 15.00

92075

920751109
ref: 92075

DAMPER,HEAD LAMP FITT

€ 4.00

92075A

920751110
ref: 92075A

DAMPER,HEAD LAMP FITT

€ 3.00

92075B

92075209
ref: 92075B

DAMPER RUBBER

€ 3.00

92081

920811701
ref: 92081

SPRING,FOCUS ADJUSTIN

€ 3.00

all assemblies
