FRAME FITTINGS

EL250D4 ELIMINATOR 1993 UNITED KINGDOM GR

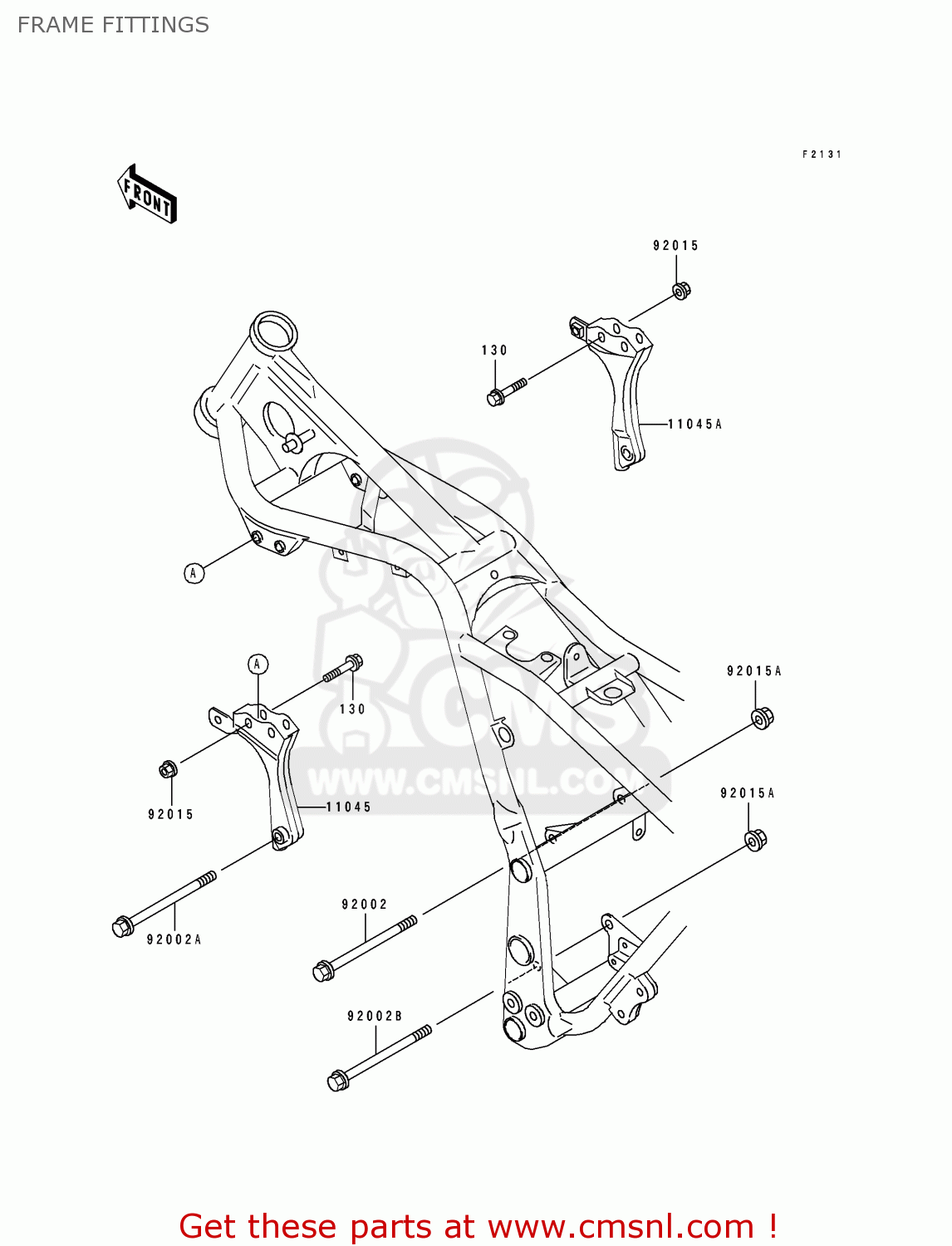

Frame fittings diagram EL250D4 ELIMINATOR 1993 UNITED KINGDOM GR

FRAME FITTINGS EL250D4 ELIMINATOR 1993 UNITED KINGDOM GR

FRAME FITTINGS EL250D4 ELIMINATOR 1993 UNITED KINGDOM GR

prices are in EUR

ref

part #

description

quantity

130

130G0840
ref: 130

BOLT-FLANGED,8X40

€ 1.00

11045

110451814
ref: 11045

BRACKET,ENGINE,LH

€ 82.50

11045A

110451815
ref: 11045A

BRACKET,ENGINE,RH

€ 82.50

92002

920021087
ref: 92002

BOLT,10X130

€ 6.50

92002A

920021470
ref: 92002A

BOLT,FLANGED,10X170

€ 13.50

92002B

920021795
ref: 92002B

BOLT

€ 8.50

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92015A

920151180
ref: 92015A

NUT,FLANGED,10MM,BLAC

€ 2.50
