Genuine EL Kawasaki Parts delivered quickly!


CARBURETOR

EL250D4 ELIMINATOR 1993 UNITED KINGDOM GR

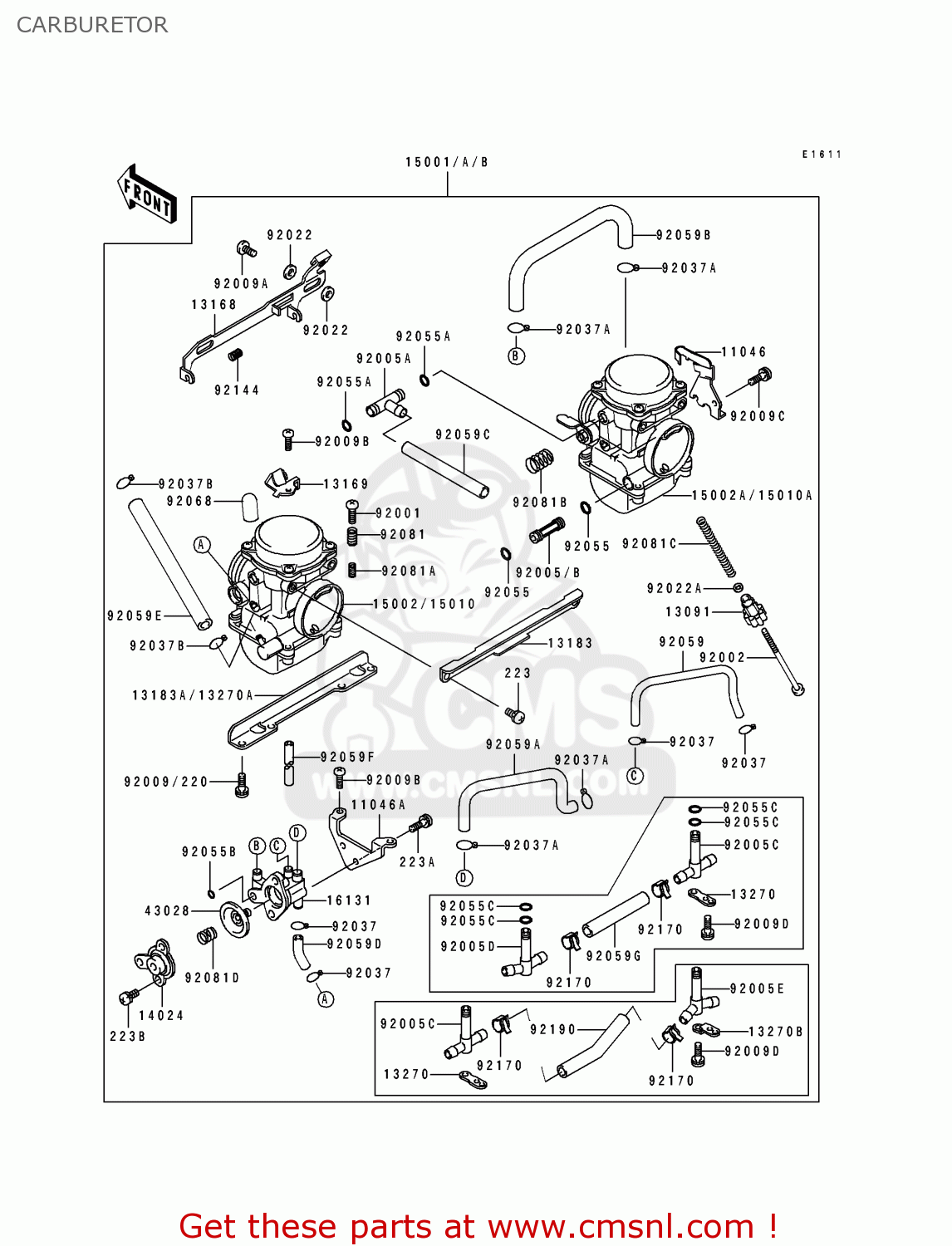

Carburetor diagram EL250D4 ELIMINATOR 1993 UNITED KINGDOM GR

CARBURETOR EL250D4 ELIMINATOR 1993 UNITED KINGDOM GR
CARBURETOR EL250D4 ELIMINATOR 1993 UNITED KINGDOM GR
CARBURETOR EL250D4 ELIMINATOR 1993 UNITED KINGDOM GR
prices are in EUR
ref
part #
description
quantity
11046
110461081
ref: 11046
BRACKET,THROTTLE CABL
€ 26.00
11046A
110461082
ref: 11046A
BRACKET,AIR CUT VALVE
€ 27.00
13091
130911382
ref: 13091
HOLDER,THROTTLE STOP
130911382
€ 11.00
13168
131681330
ref: 13168
LEVER,STARTER
€ 59.50
13169
131691965
ref: 13169
PLATE,STARTER CABLE
131691965
€ 26.50
13183
131831029
ref: 13183
PLATE,CARBURETOR STAY
€ 49.00
13183A
131831030
ref: 13183A
GR
PLATE
131831030
€ 21.50
13270
132701063
ref: 13270
UK
PLATE,JOINT STAY
132701063
€ 21.00
13270A
132701073
ref: 13270A
UK
PLATE,CARBURETOR STAY
€ 21.50
14024
140241327
ref: 14024
COVER,AIR CUT VALVE
140241327
€ 43.00
15001
150011616
ref: 15001
GR
CARBURETOR-ASSY
€ 906.00
15001A
150011890
ref: 15001A
UK
CARBURETOR-ASSY
€ 791.50
15002
150021952
ref: 15002
GR
CARBURETOR,LH
€ 679.50
15002A
150021953
ref: 15002A
GR
CARBURETOR,RH
€ 679.50
15010
150101453
ref: 15010
UK
CARBURETOR,LH
€ 985.50
15010A
150101454
ref: 15010A
UK
CARBURETOR,RH
€ 985.50
16131
161311062
ref: 16131
BODY-VALVE,DIAPHRAGM
161311062
€ 51.50
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
430281053
€ 62.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92002
920021552
ref: 92002
BOLT,THROTTLE STOP SC
920021552
€ 10.00
92005
920051109
ref: 92005
GR
FITTING,FUEL,I-TYPE
920051109
€ 25.00
92005A
920051125
ref: 92005A
FITTING,T-TYPE
920051125
€ 18.00
92005B
920051157
ref: 92005B
UK
FITTING
€ 25.00
92005C
920051235
ref: 92005C
UK
FITTING
920051235
€ 8.50
92005D
920051254
ref: 92005D
UK
FITTING
920051254
€ 18.50
92009
920091129
ref: 92009
GR
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
920091262
€ 4.00
92009B
920091446
ref: 92009B
SCREW,4X18
920091446
€ 4.00
92009C
920091510
ref: 92009C
SCREW
920091510
€ 3.00
92009D
920091705
ref: 92009D
UK
SCREW 4X8
920091705
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92037
920371142
ref: 92037
CLAMP,TUBE
920371142
€ 2.50
92037A
920371477
ref: 92037A
CLAMP,TUBE
920371477
€ 3.00
92037B
920371531
ref: 92037B
CLAMP,TUBE
920371531
€ 3.50
92055
920551004
ref: 92055
O RING
920551004
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
920551223
€ 3.50
92055B
920551245
ref: 92055B
RING-O
920551245
€ 3.50
92055C
920551427
ref: 92055C
UK
RING-O,4.5X1.5
920551427
€ 3.00
92059
920591140
ref: 92059
TUBE,3.5X6.5X180
920591140
€ 17.50
92059A
920591201
ref: 92059A
TUBE,5X9X160
920591201
€ 14.50
92059B
920591377
ref: 92059B
TUBE,5X9X180
920591377
€ 16.50
92059C
920591465
ref: 92059C
TUBE,6.5X9.5X500
920591465
€ 20.50
92059D
920591722
ref: 92059D
TUBE
€ 15.50
92059E
920591892
ref: 92059E
TUBE,6.5X11.5X320
920591892
€ 22.00
92059F
920591893
ref: 92059F
TUBE,3.5X6.5X390
€ 15.50
92059G
920591978
ref: 92059G
UK
TUBE,4X10X55
€ 3.50
92068
92068006
ref: 92068
RUBBER PLUG
92068006
€ 2.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
220
220B0616
ref: 220
UK
SCREW-PAN HEAD,6X16
220B0616
€ 2.50
223
223C0510
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223D0408
ref: 223A
SCREW-PAN-WS-CROS
€ 1.00
223B
223D0410
ref: 223B
SCREW-PAN-WS-CROS
223D0410
€ 2.50
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92081C
920811875
ref: 92081C
SPRING,THROTTLE STOP
920811875
€ 5.50
92081D
920811891
ref: 92081D
SPRING,AIR CUT VALVE
920811891
€ 8.50
92144
921441048
ref: 92144
SPRING,STARTER LEVER
€ 7.00
92170
921701054
ref: 92170
UK
CLAMP,TUBE
921701054
€ 5.00
