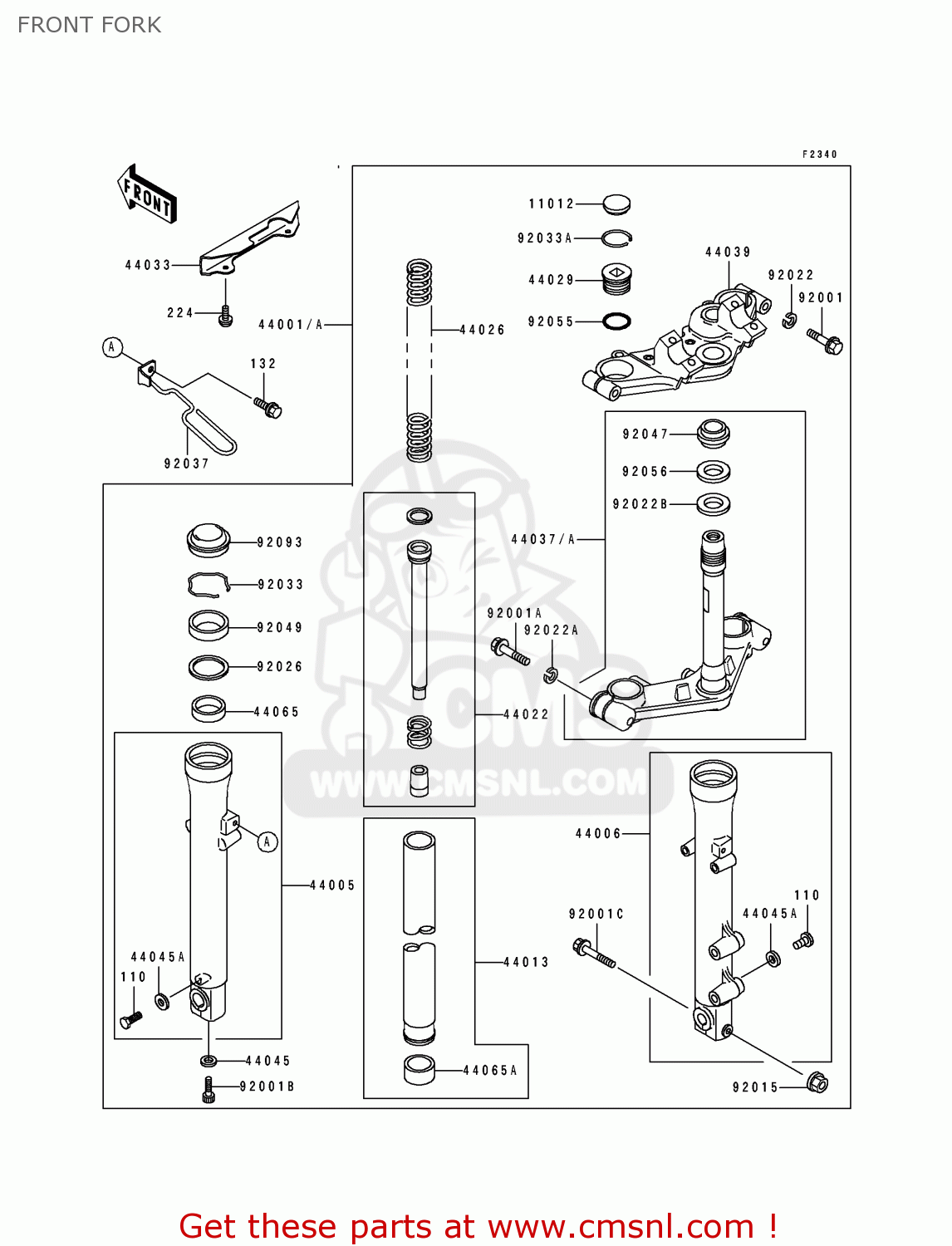

FRONT FORK

ref

part #

description

quantity

110

110B0608
ref: 110

BOLT-HEX HEAD,6X8

€ 0.50

132

132E0610
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

11012

110121620
ref: 11012

CAP,FORK TOP

€ 7.50

44001

440011676
ref: 44001

FORK-FRONT

€ 2,133.50

44005

440051266
ref: 44005

PIPE-LEFT FORK OUTER

€ 345.00

44006

440061263
ref: 44006

PIPE-RIGHT FORK OUTER

€ 329.50

44013

440131270
ref: 44013

PIPE-FORK INNER

€ 176.50

44022

440221217
ref: 44022

CYLINDER-FORK

€ 90.00

44026

440261374
ref: 44026

SPRING-FRONT FORK

€ 20.50

44029

440291124
ref: 44029

SEAT-FORK SPRING

€ 29.50

44033

440331177
ref: 44033

COVER-FORK,UNDER BRAC

€ 16.50

44037

440371222
ref: 44037

HOLDER-FORK UNDER

€ 274.00

44039

440391165
ref: 44039

HOLDER-FORK UPPER

€ 238.50

44045

44045051
ref: 44045

GASKET,FORK CYLINDER (NAS)

€ 4.00

44045A

44045052
ref: 44045A

GASKET,DRAIN PLUG (NAS)

€ 6.00

44065

440651068
ref: 44065

BUSHING-FRONT FORK

€ 16.00

44065A

440651069
ref: 44065A

BUSHING-FRONT FORK,IN

€ 16.50

92001

920011063
ref: 92001

BOLT,HEX HEAD,8X40

€ 6.50

92001A

920011454
ref: 92001A

BOLT

€ 6.50

92001B

920011464
ref: 92001B

BOLT

€ 4.00

92001C

920011486
ref: 92001C

BOLT,FLANGED,8X50

€ 7.50

92015

920151055
ref: 92015

NUT,8M/M

€ 3.00

92022

920221703
ref: 92022

WASHER,SPRING,8MM

€ 2.00

92022A

920221704
ref: 92022A

WASHER,SPRING,10MM

€ 2.00

92022B

92022231
ref: 92022B

WASHER,PLAIN

€ 3.00

92026

920261038
ref: 92026

SPACER,FORK

€ 6.50

92033

920331219
ref: 92033

RING-SNAP,FORK

€ 4.00

92033A

920331220
ref: 92033A

RING-SNAP,FORK TOP

€ 6.00

92037

920371922
ref: 92037

CLAMP,CABLE

€ 15.50

92047

92047012
ref: 92047

CONE-STRNG STM BRNG

€ 14.50

92049

920491226
ref: 92049

SEAL-OIL,FORK

€ 14.50

92055

920551359
ref: 92055

RING-O,FORK SPRING SE

€ 6.00

92056

92056003
ref: 92056

OIL SEAL,STEERING STM

€ 6.00

92093

920931196
ref: 92093

SEAL,FORK

€ 15.50

224

224B0508
ref: 224

SCREW-PAN-WP-CROS

€ 0.50
