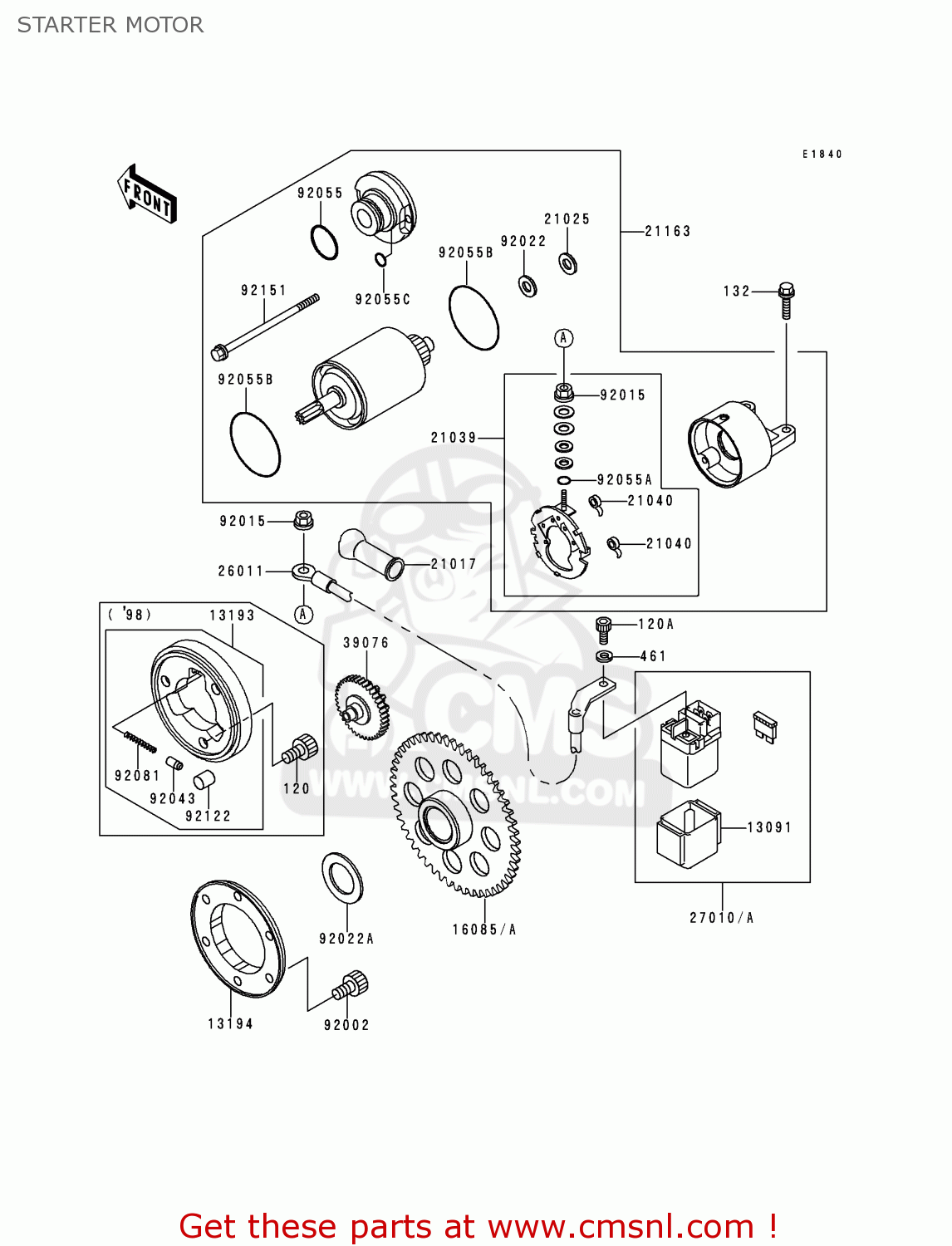

STARTER MOTOR

ref

part #

description

quantity

120A

120S0510
ref: 120A

BOLT-SOCKET

€ 0.50

132

132V0625
ref: 132

BOLT-FLANGED-SMALL,6X

€ 2.00

461

461K0500
ref: 461

WASHER-SPRING,5MM,BLA

€ 0.50

13091

130911884
ref: 13091

HOLDER,MAGNETIC SWITC

€ 8.00

13194

131941107
ref: 13194

CLUTCH-ONEWAY

€ 90.00

16085

160851309
ref: 16085

GEAR

€ 109.00

21017

21017017
ref: 21017

GROMMET-CORD

€ 6.50

21025

21025011
ref: 21025

WASHER, THRUST, 0.2T

€ 4.00

21039

210391066
ref: 21039

BRUSH

€ 27.50

21040

210401057
ref: 21040

SPRING-BRUSH

€ 5.50

21163

211631278
ref: 21163

STARTER-ELECTRIC

€ 419.50

26011

260111682
ref: 26011

WIRE-LEAD,STARTER

€ 54.00

27010

270101327
ref: 27010

SWITCH,MAGNETIC

€ 116.00

39076

390761060
ref: 39076

LIMITER,STARTER IDLE

€ 125.50

92002

920021796
ref: 92002

BOLT,SOCKET,6X12

€ 3.00

92015

920151476
ref: 92015

NUT,6MM

€ 2.50

92022

920221132
ref: 92022

WASHER,9.1X18X0.8

€ 4.00

92022A

92022212
ref: 92022A

WASHER-PLAIN,22MM

€ 6.50

92055

920551276
ref: 92055

RING-O

€ 6.50

92055A

920551370
ref: 92055A

RING-O,4.5X2.0

€ 3.00

92055B

920551550
ref: 92055B

RING-O

€ 6.00

92055C

920551551
ref: 92055C

RING-O

€ 2.50

92151

921511158
ref: 92151

BOLT

€ 4.00

all assemblies
