GEAR CHANGE MECHANISM

BN125A2 ELIMINATOR 1999 EUROPE UK FR AR FG GR NR SD SP ST

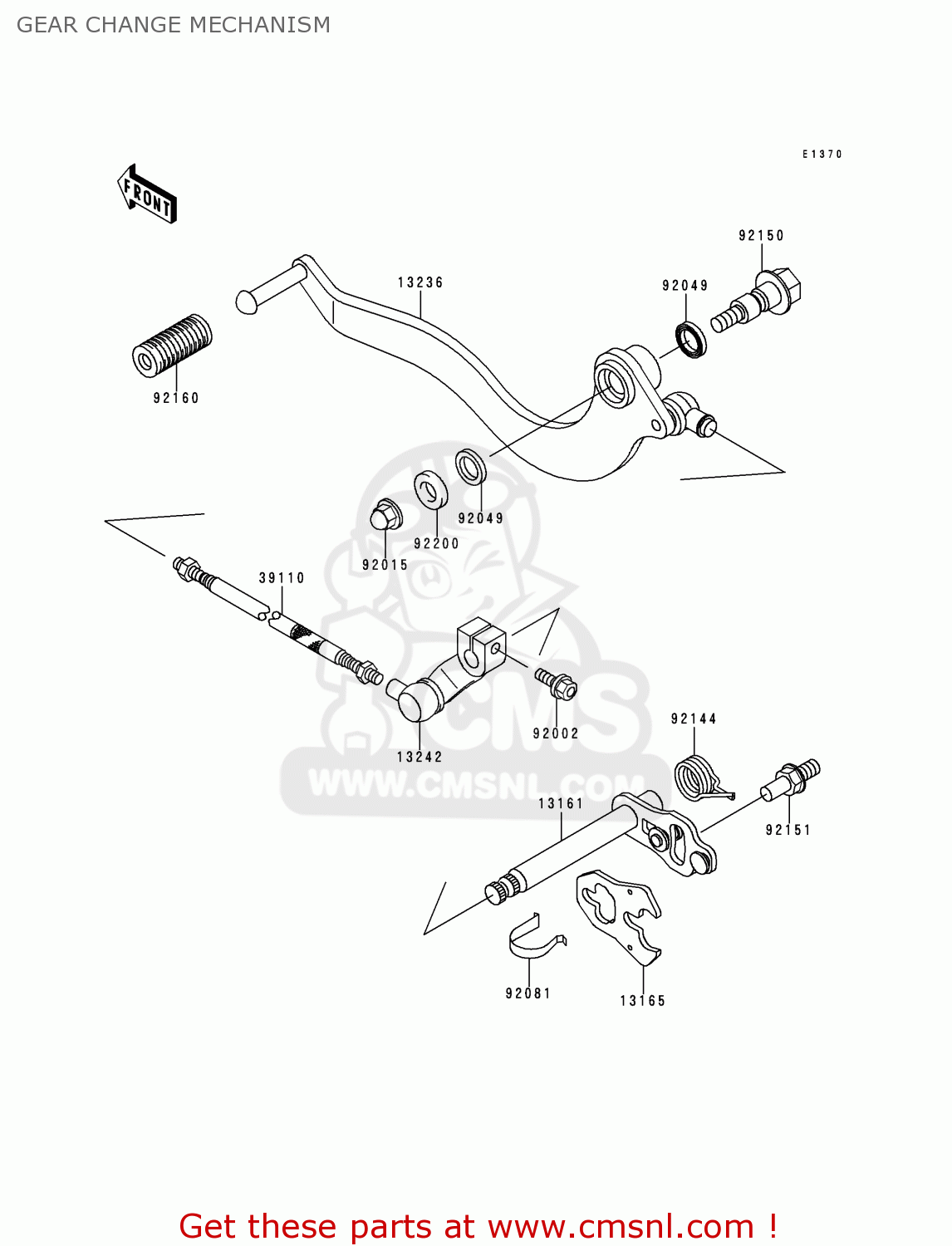

Gear change mechanism diagram BN125A2 ELIMINATOR 1999 EUROPE UK FR AR FG GR NR SD SP ST

prices are in EUR

ref

part #

description

quantity

13161

131611234
ref: 13161

LEVER-COMP-CHANGE SHA

€ 47.00

13165

131651154
ref: 13165

PAWL,CHANGE SHAFT

€ 12.50

13236

132361297
ref: 13236

LEVER-COMP,CHANGE PED

€ 17.00

13242

132421290
ref: 13242

LEVER-ASSY-CHANGE

€ 38.50

39110

391101111
ref: 39110

ROD-ASSY-TIE

€ 13.50

92002

920021237
ref: 92002

BOLT,6X20

€ 2.50

92015

920151370
ref: 92015

NUT,CAP,8MM

€ 3.00

92049

920491398
ref: 92049

SEAL-OIL,VB13193

€ 4.00

92081

920811829
ref: 92081

SPRING,CHANGE LEVER

€ 6.00

92144

921441345
ref: 92144

SPRING,CHANGE PEDAL R

€ 11.50

92150

921501908
ref: 92150

BOLT,CHANGE PEDAL

€ 14.50

92151

921511362
ref: 92151

BOLT,RETURN SPRING

€ 7.00

92160

921601637
ref: 92160

DAMPER,CHANGE PEDAL

€ 5.50

92200

922003717
ref: 92200

WASHER,8.5X25X1.5

€ 3.00

GEAR CHANGE MECHANISM

all assemblies
