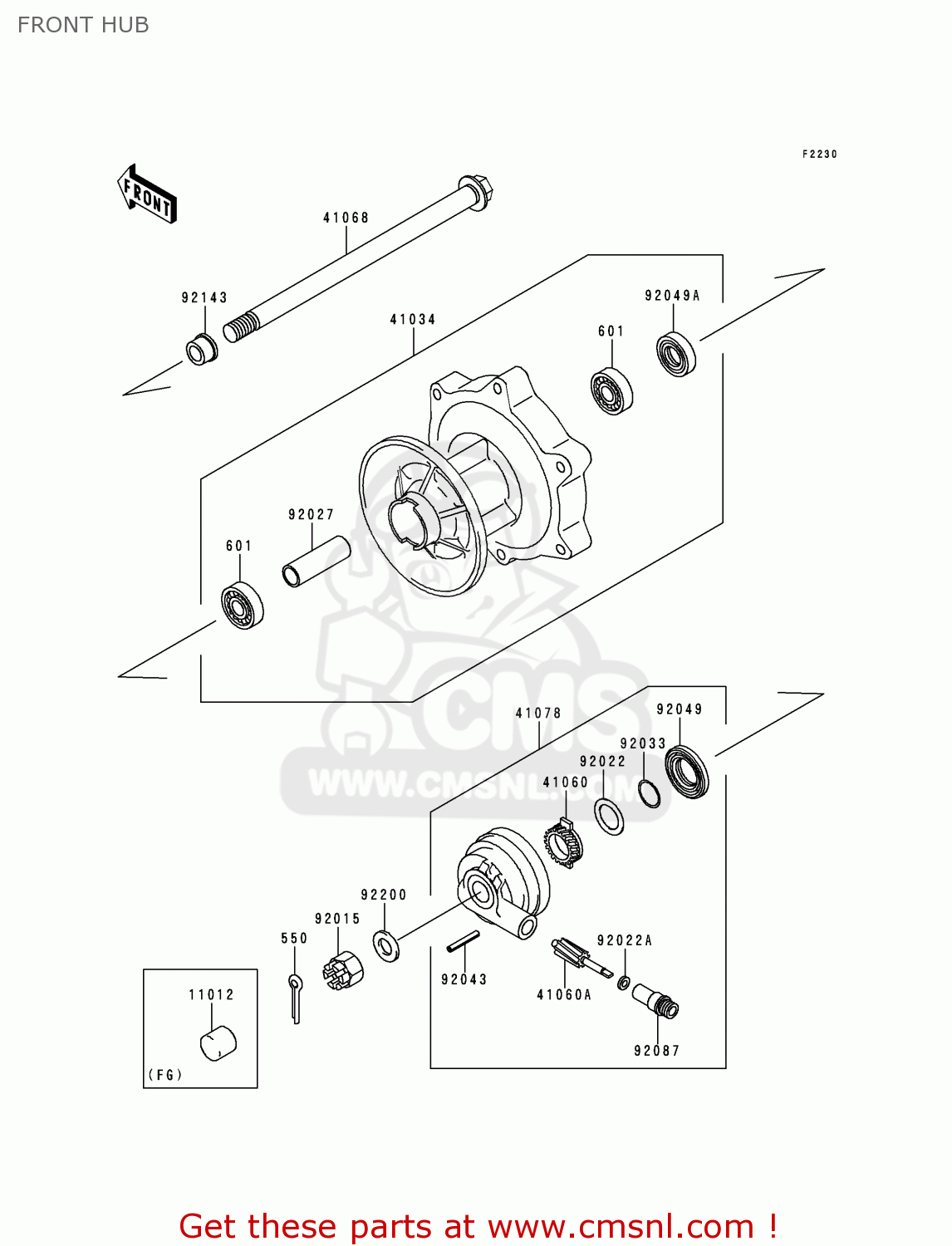

FRONT HUB

ref

part #

description

quantity

550

550D3025
ref: 550

PIN-COTTER,3.0X25

€ 0.50

601

601B6202G
ref: 601

BRG,BALL,#6202C3

€ 14.50

11012

110121594
ref: 11012
FG

CAP,AXLE NUT

€ 5.00

41034

410341277
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 215.00

41060

410601133
ref: 41060

GEAR-METER SCREW,20T

€ 20.50

41060A

410601134
ref: 41060A

GEAR-METER SCREW,8T

€ 21.00

41068

410681236
ref: 41068

AXLE,FR

€ 55.00

41078

410781087
ref: 41078

CASE-ASSY-METER GEAR

€ 67.50

92015

920151765
ref: 92015

NUT,CASTLE,14MM

€ 6.50

92022

920221510
ref: 92022

WASHER,20X29X1.0

€ 3.00

92022A

920221511
ref: 92022A

WASHER,5X9.5X0.8

€ 2.50

92027

920271866
ref: 92027

COLLAR,L=70

€ 14.50

92033

920331160
ref: 92033

RING-SNAP,19MM

€ 3.00

92043

920431220
ref: 92043

PIN,SPRING,2X14

€ 2.50

92049

920491173
ref: 92049

SEAL-OIL

€ 12.50

92049A

920491348
ref: 92049A

SEAL-OIL

€ 7.50

92087

920871051
ref: 92087

BUSHING-METER GEAR

€ 12.00

92143

921431949
ref: 92143

COLLAR,FR AXLE,L=23.5

€ 10.00

92200

922001366
ref: 92200

WASHER,15X30X3.2

€ 2.50
