Genuine BN Kawasaki Parts delivered quickly!


CYLINDER HEAD

BN125A2 ELIMINATOR 1999 EUROPE UK FR AR FG GR NR SD SP ST

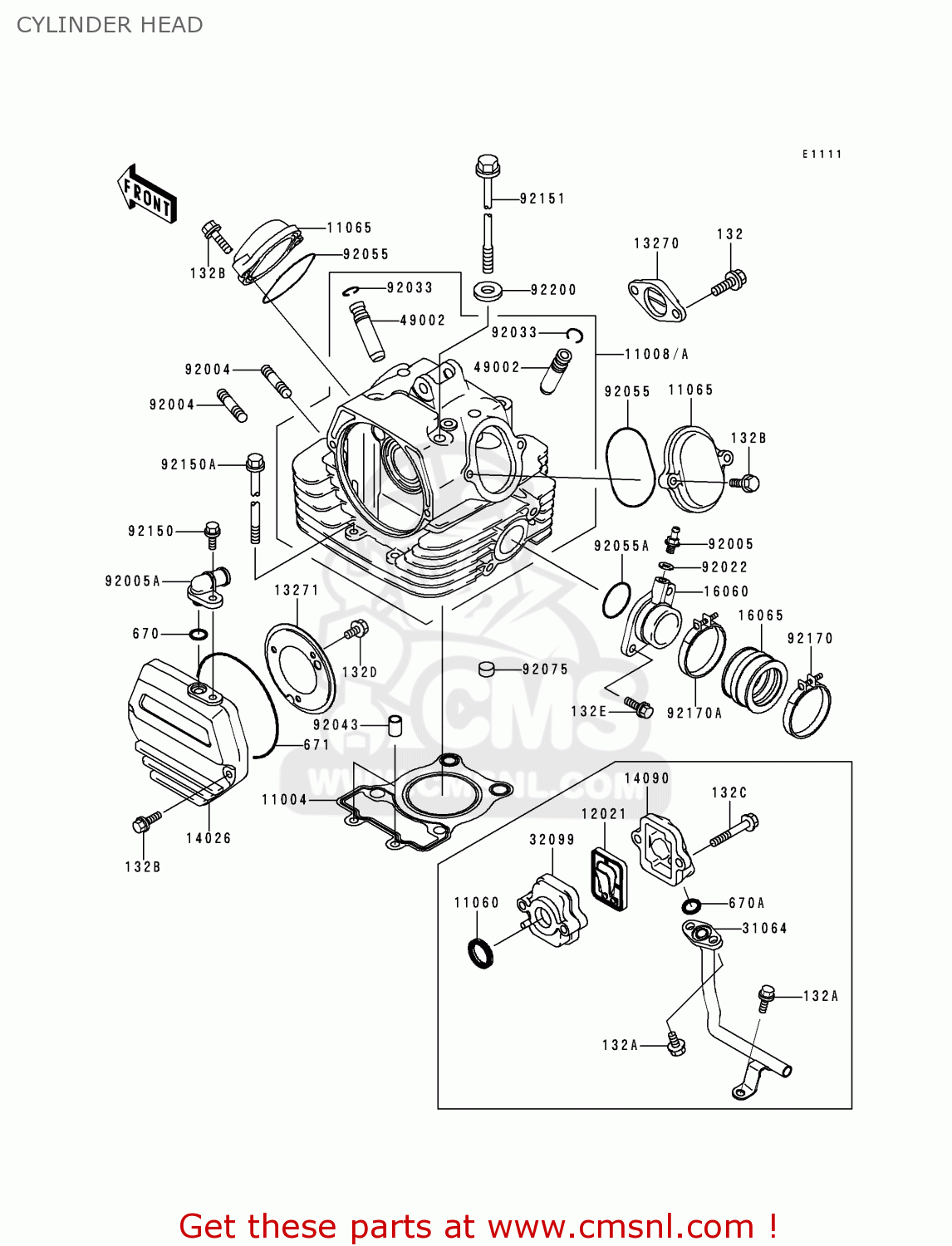

Cylinder head diagram BN125A2 ELIMINATOR 1999 EUROPE UK FR AR FG GR NR SD SP ST

CYLINDER HEAD BN125A2 ELIMINATOR 1999 EUROPE UK FR AR FG GR NR SD SP ST
CYLINDER HEAD BN125A2 ELIMINATOR 1999 EUROPE UK FR AR FG GR NR SD SP ST
CYLINDER HEAD BN125A2 ELIMINATOR 1999 EUROPE UK FR AR FG GR NR SD SP ST
prices are in EUR
ref
part #
description
quantity
132
132V0614
ref: 132
EUFRGRNRSDSPUK
BOLT-FLANGED-SMALL,6X
€ 1.00
132A
132V0616
ref: 132A
ARFGST
BOLT-FLANGED-SMALL,6X
132V0616
€ 1.00
11004
110041335
ref: 11004
GASKET-HEAD (NAS)
110041335
€ 18.50
11008
110081322
ref: 11008
EUFRGRNRSDSPUK
HEAD-COMP-CYLINDER
€ 377.50
11008A
110081335
ref: 11008A
ARFGST
HEAD-COMP-CYLINDER
€ 475.00
11060
110601815
ref: 11060
ARFGST
GASKET,REED VALVE (NAS)
110601815
€ 5.00
11065
110651071
ref: 11065
CAP,ROCKER CASE
€ 10.50
12021
120211102
ref: 12021
ARFGST
VALVE-ASSY-REED
120211102
€ 58.00
13270
132701910
ref: 13270
EUFRGRNRSDSPUK
PLATE
€ 8.50
13271
132711109
ref: 13271
PLATE,BREATHER
€ 7.50
14026
140261258
ref: 14026
COVER-CHAIN
€ 59.00
14090
140901852
ref: 14090
ARFGST
COVER,REED VALVE
€ 16.00
16060
160601078
ref: 16060
PIPE-INTAKE
€ 45.50
16065
160651335
ref: 16065
HOLDER-CARBURETOR
160651335
€ 15.00
31064
310641205
ref: 31064
ARFGST
PIPE-COMP
€ 76.00
32099
320991187
ref: 32099
ARFGST
CASE,REED VALVE
€ 21.00
49002
490021116
ref: 49002
GUIDE-VALVE
490021116
€ 23.00
92004
920041121
ref: 92004
STUD,8X30
920041121
€ 3.50
92005
920051337
ref: 92005
FITTING
920051337
€ 17.50
92005A
920051342
ref: 92005A
FITTING,BREATHER
€ 27.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
92022077
€ 0.50
92033
920331247
ref: 92033
RING-SNAP
920331247
€ 2.00
92043
920434009
ref: 92043
PIN,10.1X12X14
920434009
€ 4.00
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551256
ref: 92055A
RING-O,32MM
920551256
€ 9.00
92075
920751089
ref: 92075
DAMPER
€ 4.50
92150
921501394
ref: 92150
BOLT,6X16
921501394
€ 2.00
92150A
921501986
ref: 92150A
BOLT,6X110
€ 2.50
92151
921511092
ref: 92151
BOLT,9X228.5
921511092
€ 7.50
92170
921701094
ref: 92170
CLAMP,CARBURETOR HOLD
921701094
€ 8.50
92170A
921701527
ref: 92170A
CLAMP,43MM
921701527
€ 12.00
92200
922001037
ref: 92200
WASHER,9.5X18X1.2
922001037
€ 2.00
132B
132V0625
ref: 132B
BOLT-FLANGED-SMALL,6X
€ 2.00
132C
132V0640
ref: 132C
ARFGST
BOLT-FLANGED-SMALL,6X
€ 2.50
132D
132Y0612
ref: 132D
BOLT-FLANGED-SMALL
€ 1.50
132E
132Y0618
ref: 132E
BOLT-FLANGED-SMALL
€ 2.00
670
670B1510
ref: 670
O RING,9.8X1.9
670B1510
€ 2.50
670A
670B2010
ref: 670A
ARFGST
O RING,10MM
670B2010
€ 1.00
671
671B2595
ref: 671
O RING,95MM
671B2595
€ 4.50
