KICKSTARTER MECHANISM
AR125A6 1988 UNITED KINGDOM GR NR

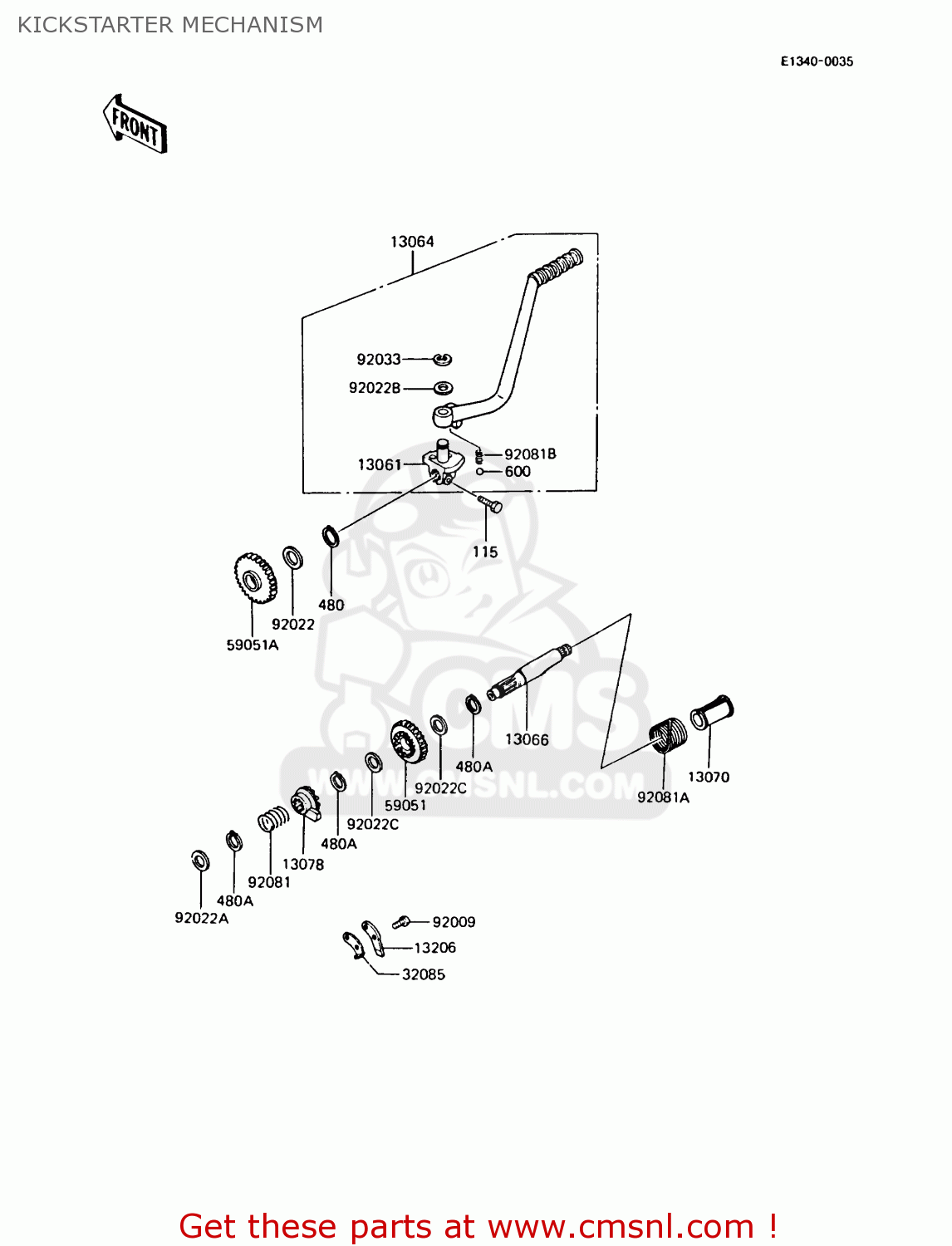

Kickstarter mechanism diagram AR125A6 1988 UNITED KINGDOM GR NR
KICKSTARTER MECHANISM AR125A6 1988 UNITED KINGDOM GR NR
×
prices are in EUR
ref
part #
description
quantity
115
115J0825
ref: 115
BOLT-SMALL-UPSET,8X25
€ 3.00
480
480J1500
ref: 480
CIRCLIP-TYPE-C,15MM
€ 1.00
480A
480J1600
ref: 480A
CIRCLIP-TYPE-C,16MM
€ 2.50
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
13061
130611142
ref: 13061
BOSS,KICK PEDAL
€ 32.50
13064
130641119
ref: 13064
LEVER-ASSY-KICK,PEDAL
€ 84.50
13066
130661057
ref: 13066
SHAFT-KICK
€ 64.50
13070
130701035
ref: 13070
GUIDE,KICK SHAFT
€ 5.50
13078
130781054
ref: 13078
RATCHET
€ 36.50
13206
132061002
ref: 13206
GUIDE-KICK
€ 5.50
32085
320851027
ref: 32085
STOPPER,KICKSTARTER
€ 5.50
59051
590511045
ref: 59051
GEAR-SPUR,KICK,28T
€ 36.50
59051A
590511046
ref: 59051A
GEAR-SPUR,IDLE,33T
€ 35.50
92009
920091104
ref: 92009
SCREW,TAPPING
€ 2.50
92022
920221045
ref: 92022
WASHER,15.3X25X0.5
€ 3.00
92022A
920221224
ref: 92022A
WASHER,13.2X20X0.5
€ 2.50
92022B
920221534
ref: 92022B
WASHER,14MM
€ 6.00
92022C
92022315
ref: 92022C
WASHER, 16.8X22X0.5
€ 4.00
92033
920331166
ref: 92033
RING-SNAP,10MM
€ 2.50
92081
92081122
ref: 92081
SPRING,RATCHET
€ 6.00
92081A
920811276
ref: 92081A
SPRING,KICK STARTER
€ 9.00
92081B
92081154
ref: 92081B
SPRING
€ 2.00
