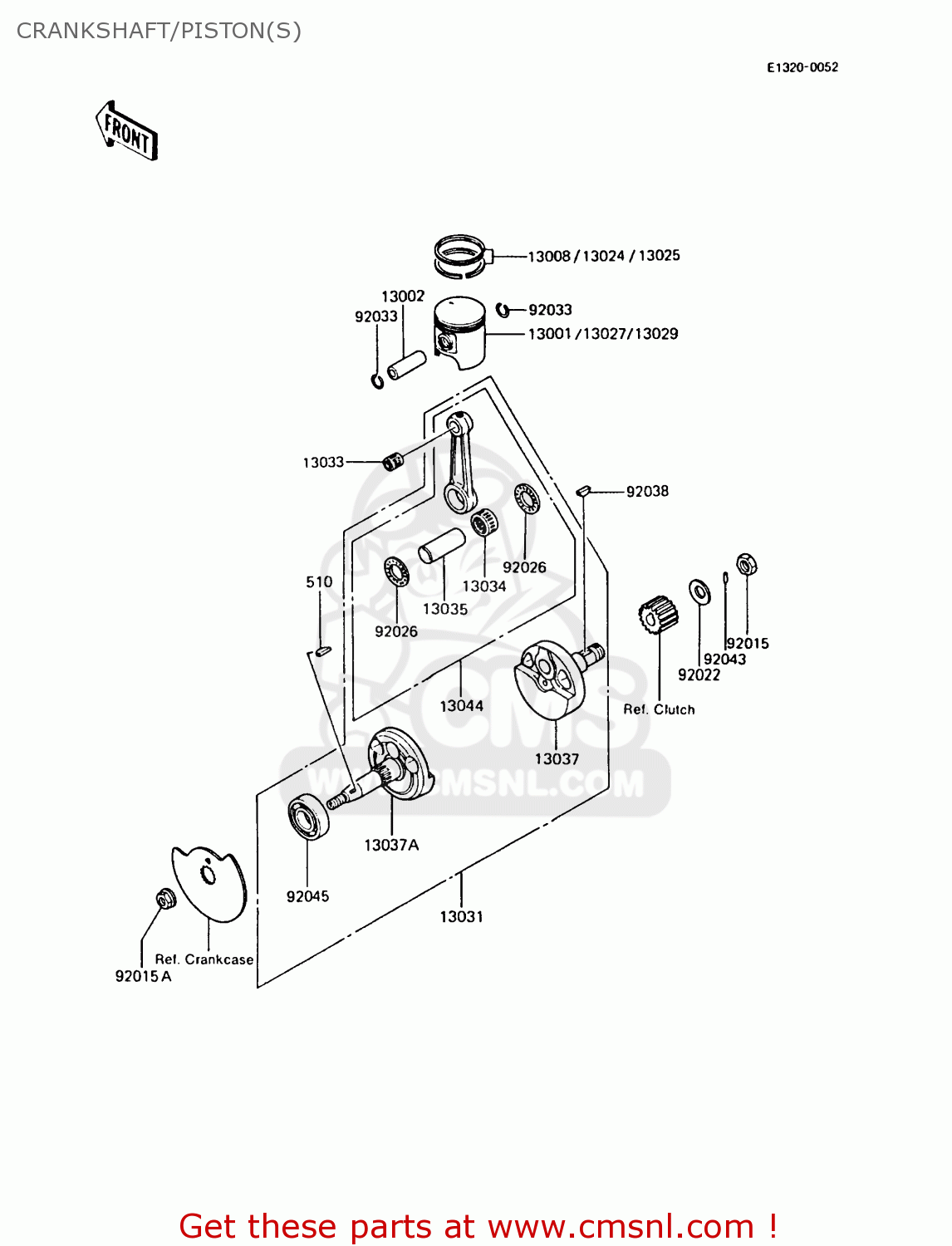

CRANKSHAFT/PISTON(S)

ref

part #

description

quantity

510

510A3200
ref: 510

KEY-WOODRUFF

€ 1.50

13001

130011190
ref: 13001

PISTON-ENGINE,STD

€ 44.00

13002

130021051
ref: 13002

PIN-PISTON

€ 17.00

13008

130085060
ref: 13008

RING-SET-PISTON,STD

€ 52.50

13024

130245025
ref: 13024

RING-SET-PISTON LL,O/

€ 62.00

13025

130255026
ref: 13025

RING-SET-PISTON L,O/S

€ 57.50

13027

130271129
ref: 13027

PISTON-ENGINE LL,O/S

€ 38.00

13029

130291129
ref: 13029

PISTON-ENGINE L,O/S 0

€ 54.50

13031

130311184
ref: 13031

CRANKSHAFT-COMP

€ 348.50

13033

130331008
ref: 13033

BEARING-NEEDLE,KBK15X

€ 23.50

13034

130341070
ref: 13034

BEARING-BIG END

€ 30.50

13035

130351059
ref: 13035

PIN-CRANK

€ 15.50

13037

130371249
ref: 13037

CRANKSHAFT,RH

€ 164.00

13037A

130371294
ref: 13037A

CRANKSHAFT,LH

€ 164.00

13044

130445044
ref: 13044

SET-CONNECTING ROD

€ 159.00

92015

92015072
ref: 92015

NUT,LOCK,16MM

€ 4.50

92015A

920151156
ref: 92015A

NUT,12MM

€ 4.50

92022

920221356
ref: 92022

WASHER,16.3X29X1.75

€ 4.50

92026

920261136
ref: 92026

SPACER,22.2X37X1.0

€ 5.50

92033

92036005
ref: 92033

CIRCLIP-PISTON PIN

€ 2.50

92038

92038003
ref: 92038

WOODRUFF KEY-PRY PINI

€ 1.50

92043

92042035
ref: 92043

PIN,DOWEL,2.5X12.8

€ 2.50

92045

920451061
ref: 92045

BEARING-BALL,R-6205C3

€ 30.50

all assemblies
