CRANKCASE
AR125A6 1988 UNITED KINGDOM GR NR

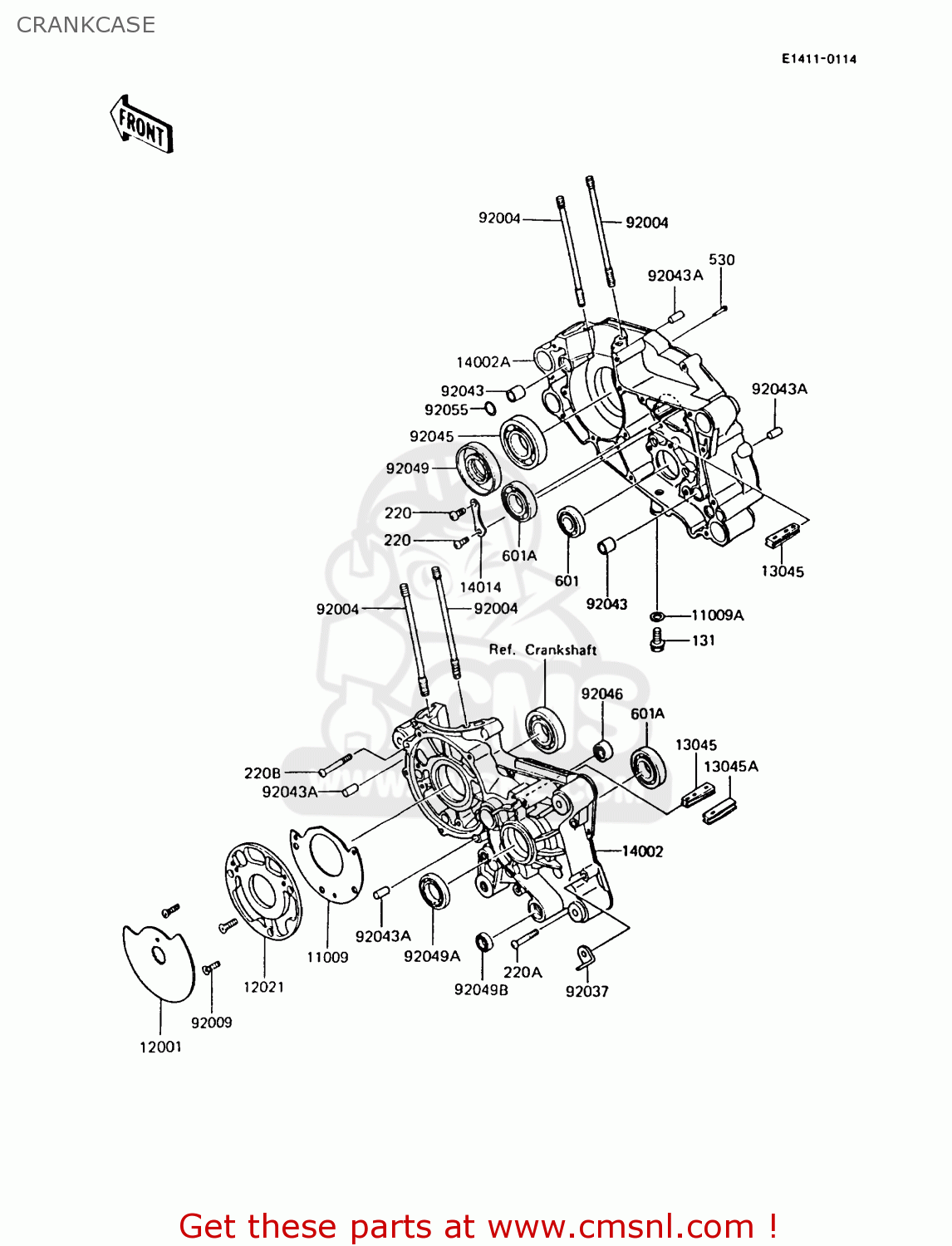

Crankcase diagram AR125A6 1988 UNITED KINGDOM GR NR
CRANKCASE AR125A6 1988 UNITED KINGDOM GR NR
×
prices are in EUR
ref
part #
description
quantity
131
131D1020
ref: 131
BOLT-FLANGED
€ 2.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
220A
220X0635
ref: 220A
SCREW-PAN-CROS
€ 2.50
220B
220X0645
ref: 220B
SCREW-PAN-CROS
€ 2.50
530
530C0316
ref: 530
RIVET-ROUND,3X16
€ 1.50
601
601B6202
ref: 601
BEARING-BALL,#6202C3
€ 14.50
601A
601B6204
ref: 601A
BEARING-BALL,#6204C3
€ 8.00
11009
110091327
ref: 11009
GASKET,ROTARY VALVE (NAS)
€ 4.50
11009A
92065058
ref: 11009A
GASKET, 10,5X16X1 (NAS)
€ 2.50
12001
120011063
ref: 12001
VALVE-ROTARY
€ 20.00
12021
120211017
ref: 12021
VALVE-ASSY-REED
€ 270.00
13045
130451004
ref: 13045
RECEIVER-OIL
€ 2.50
13045A
130451051
ref: 13045A
RECEIVER-OIL
€ 4.00
14002
140021358
ref: 14002
CRANKCASE,LH
€ 344.00
14002A
140021362
ref: 14002A
CRANKCASE,RH
€ 344.00
14014
140141028
ref: 14014
PLATE-POSITION
€ 2.00
92004
920041157
ref: 92004
STUD
€ 5.50
92009
920091180
ref: 92009
SCREW,6X14
€ 2.00
92037
920371642
ref: 92037
CLAMP
€ 3.00
92043
920431279
ref: 92043
PIN,11.5X14X14
€ 3.00
92043A
920431322
ref: 92043A
PIN,8X16
€ 2.50
92045
920451143
ref: 92045
BEARING-BALL,6305YR4-
€ 21.00
92046
920461051
ref: 92046
BEARING-NEEDLE
€ 13.50
92049
920491097
ref: 92049
SEAL-OIL,SD29659GS
€ 10.50
92049A
920491240
ref: 92049A
SEAL-OIL
€ 10.50
92049B
92051005A
ref: 92049B
OIL SEAL,TB13225.5
€ 5.50
92055
920551141
ref: 92055
RING-O,ID=13.8
€ 2.50
