HEADLIGHT(S)
AR125A6 1988 UNITED KINGDOM GR NR

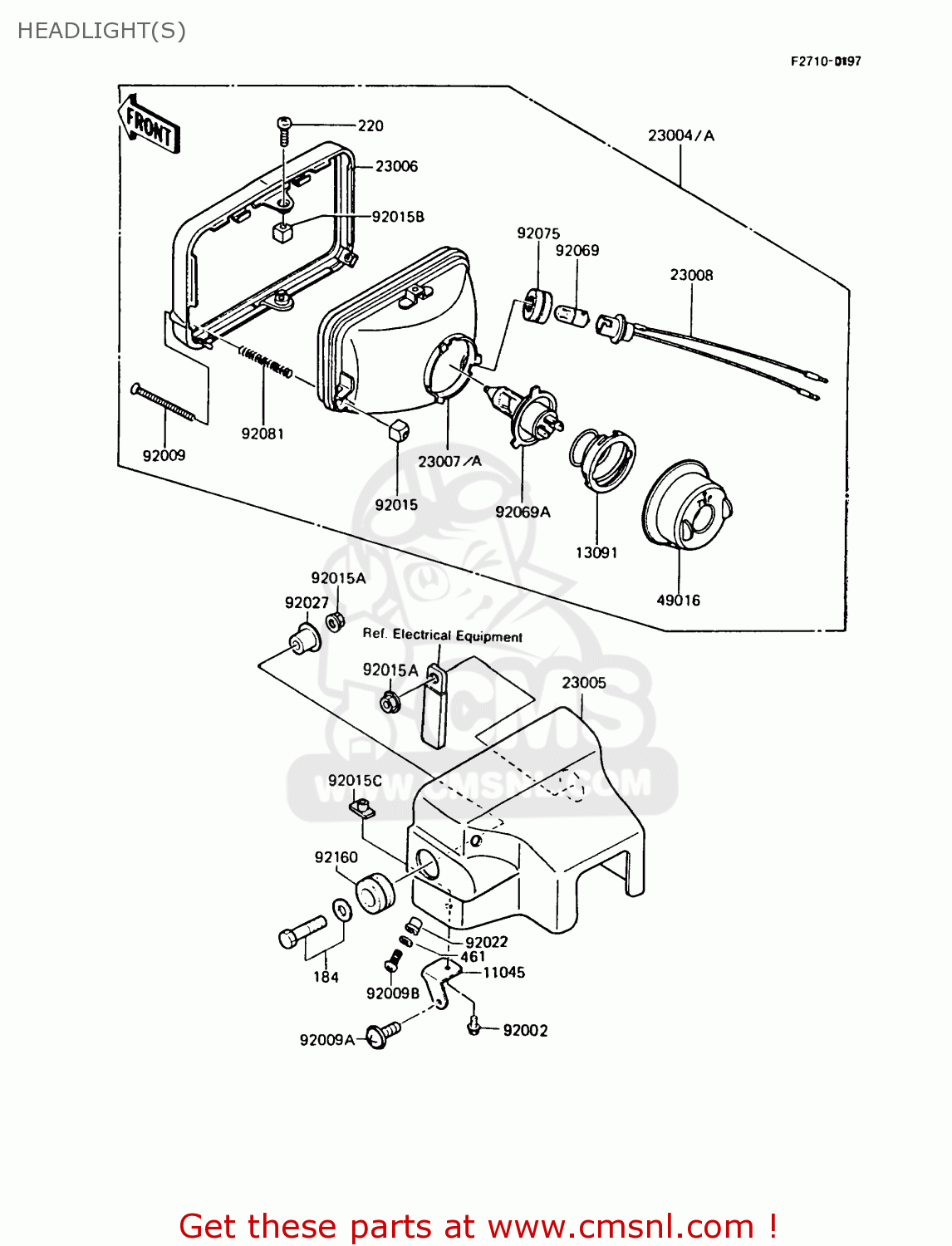

Headlight(s) diagram AR125A6 1988 UNITED KINGDOM GR NR
HEADLIGHT(S) AR125A6 1988 UNITED KINGDOM GR NR
×
prices are in EUR
ref
part #
description
quantity
184
184B0830
ref: 184
BOLT-UPSET-WP-SMALL
€ 1.00
220
220D0510
ref: 220
SCREW-PAN-CROS
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
11045
110441924
ref: 11045
BRACKET,HEAD LAMP
€ 3.50
13091
130911558
ref: 13091
HOLDER,SOCKET
€ 9.00
23004
230041105
ref: 23004
UK
LAMP-HEAD
€ 316.00
23004A
230041106
ref: 23004A
GRNR
LAMP-HEAD
€ 405.50
23005
230051072
ref: 23005
BODY-COMP-HEAD LAMP
€ 45.00
23006
230061013
ref: 23006
RIM-LAMP
€ 52.50
23007
230071036
ref: 23007
UK
LENS-COMP,#001-2720(H
€ 138.50
23007A
230071037
ref: 23007A
GRNR
LENS-COMP
€ 83.00
23008
23008038
ref: 23008
SOCKET-ASSY,PARKING L
€ 7.50
49016
490161037
ref: 49016
COVER-SEAL,SOCKET
€ 7.50
92002
920021260
ref: 92002
BOLT,6X14
€ 0.50
92009
23019021
ref: 92009
SCREW-FORCUS ADJUST
€ 3.00
92009A
920091402
ref: 92009A
SCREW,6X10
€ 1.50
92009B
92011024
ref: 92009B
SCREW-PAN HEAD,5MM
€ 2.00
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
920151014
ref: 92015A
NUT,8MM
€ 0.50
92015B
920151157
ref: 92015B
NUT,5MM
€ 3.50
92015C
920151231
ref: 92015C
NUT,6MM,HEAD LAMP
€ 6.50
92022
23021010
ref: 92022
WASHER
€ 2.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
BULB,12V-60155W
€ 15.00
92075
23066008
ref: 92075
DAMPER,PARKING LAMP
€ 3.00
92081
920811404
ref: 92081
SPRING,FOCUS ADJUST
€ 2.50
92160
921601007
ref: 92160
DAMPER
€ 3.50
