SEAT
AN112D6F KAZER 2006 CANADA

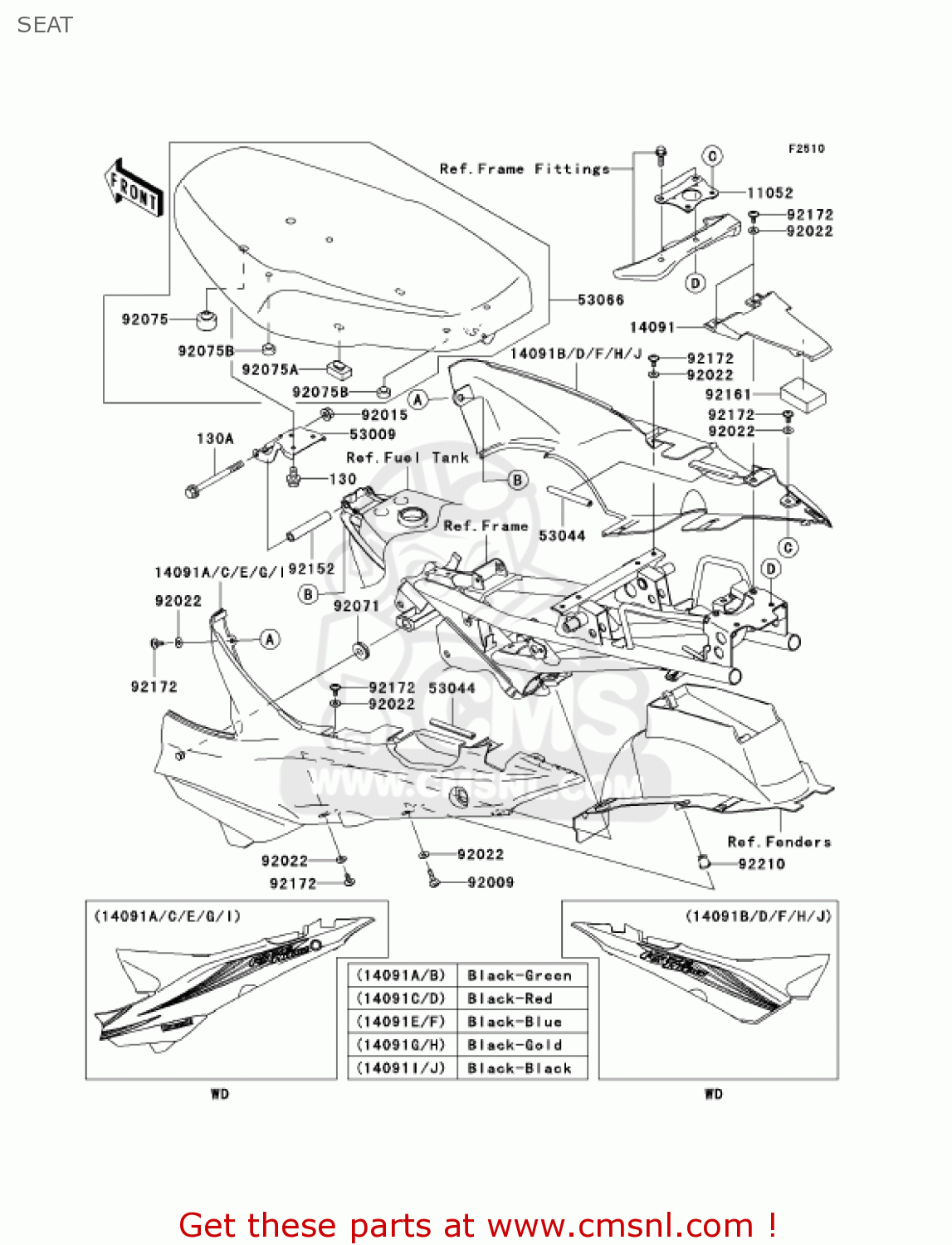

Seat diagram AN112D6F KAZER 2006 CANADA
SEAT AN112D6F KAZER 2006 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130H0612
ref: 130
BOLT-FLANGED,6X12
€ 0.50
130A
130J0670
ref: 130A
BOLT-FLANGED,6X70,BLA
€ 1.50
11052
110521854
ref: 11052
BRACKET,SEAT COVER,RR
€ 2.00
14091
1409114138W
ref: 14091
COVER,SEAT,CNT,J.BLAC
€ 3.50
14091A
1409152048W
ref: 14091A
COVER,SEAT,LH,J.BLACK
€ 28.50
14091B
1409152058W
ref: 14091B
COVER,SEAT,RH,J.BLACK
€ 22.50
14091C
1409152068W
ref: 14091C
COVER,SEAT,LH,J.BLACK
€ 28.50
14091D
1409152078W
ref: 14091D
COVER,SEAT,RH,J.BLACK
€ 22.50
14091E
1409152088W
ref: 14091E
COVER,SEAT,LH,J.BLACK
€ 28.50
14091F
1409152098W
ref: 14091F
COVER,SEAT,RH,J.BLACK
€ 22.50
14091G
1409152108W
ref: 14091G
COVER,SEAT,LH,J.BLACK
€ 28.50
14091H
1409152118W
ref: 14091H
COVER,SEAT,RH,J.BLACK
€ 22.50
14091I
1409152128W
ref: 14091I
COVER,SEAT,LH,J.BLACK
€ 28.50
14091J
1409152138W
ref: 14091J
COVER,SEAT,RH,J.BLACK
€ 22.50
53009
530091113
ref: 53009
HINGE,SEAT
€ 3.00
53044
530441330
ref: 53044
TRIM,L=85
€ 0.50
53066
530661051MA
ref: 53066
SEAT-ASSY,DUAL,BLACK
€ 84.00
92009
920091465
ref: 92009
SCREW
€ 2.50
92015
920151233
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92022
920221143
ref: 92022
WASHER,6.5X16X1
€ 2.50
92071
920711043
ref: 92071
GROMMET,SIDE COVER
€ 3.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
92075A
92075099
ref: 92075A
DAMPER RUBBER
€ 3.50
92075B
920751927
ref: 92075B
DAMPER,10X20X8
€ 3.00
92152
921521374
ref: 92152
COLLAR,6.8X10X55.8
€ 1.00
92161
921611288
ref: 92161
DAMPER
€ 1.00
92172
921720004
ref: 92172
SCREW,6X14
€ 2.00
92210
922101345
ref: 92210
NUT,WELL,6MM
€ 3.50
