CARBURETOR
AN112D6F KAZER 2006 CANADA

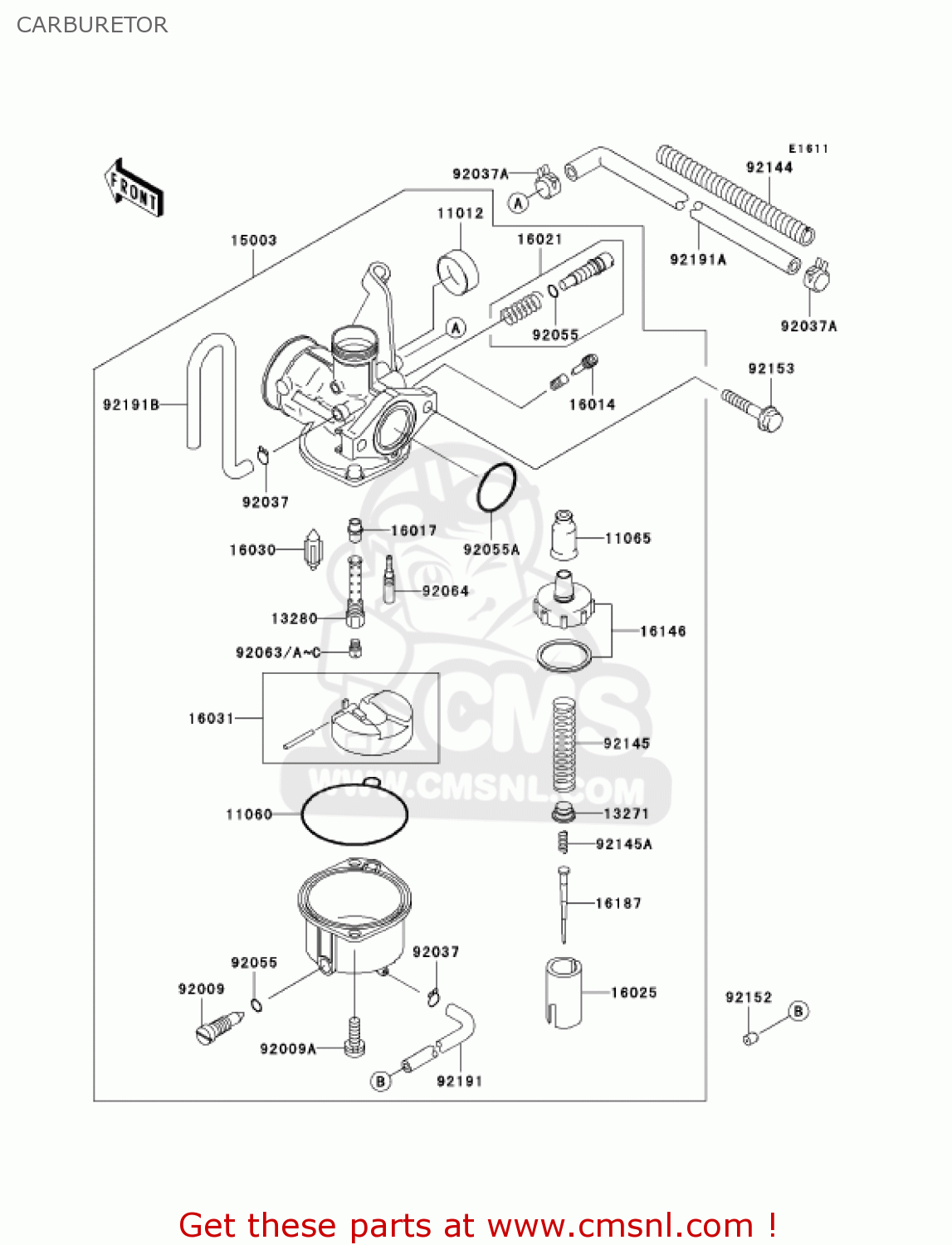

Carburetor diagram AN112D6F KAZER 2006 CANADA
CARBURETOR AN112D6F KAZER 2006 CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121940
ref: 11012
CAP,CHOKE
€ 7.00
11060
110601700
ref: 11060
GASKET,FLOAT CHAMBER (NAS)
€ 15.00
11065
110651235
ref: 11065
CAP,TOP COVER
€ 2.50
13271
132711668
ref: 13271
PLATE
€ 7.00
13280
132801282
ref: 13280
HOLDER,NEEDLE JET
€ 14.50
15003
150030020
ref: 15003
CARBURETOR-ASSY
€ 97.00
16014
160141093
ref: 16014
SCREW-PILOT AIR
€ 11.00
16017
160171399
ref: 16017
JET-NEEDLE
€ 33.50
16021
160211203
ref: 16021
SCREW-THROTTLE STOP
€ 11.00
16025
160251225
ref: 16025
VALVE-THROTTLE
€ 82.00
16030
160300002
ref: 16030
VALVE-FLOAT,FLOAT
€ 42.50
16031
160311107
ref: 16031
FLOAT
€ 28.00
16146
161461229
ref: 16146
COVER-ASSY,CARBURETOR
€ 5.50
16187
161870024
ref: 16187
NEEDLE-JET,NEQC
€ 30.50
92009
920091057
ref: 92009
SCREW,DRAIN
€ 10.00
92009A
920091750
ref: 92009A
SCREW, 4X8
€ 2.00
92037
920371142
ref: 92037
CLAMP,TUBE
€ 2.50
92037A
920371601
ref: 92037A
CLAMP
€ 9.00
92055
920551053
ref: 92055
O RING,DRAIN SCREW
€ 3.00
92055A
920551541
ref: 92055A
RING-O
€ 2.00
92063
920631393
ref: 92063
JET-MAIN,#78
€ 9.50
92063A
920631395
ref: 92063A
(OPTION)
JET-MAIN,#75
€ 9.50
92063B
920631396
ref: 92063B
(OPTION)
JET-MAIN,#80
€ 9.50
92063C
920631397
ref: 92063C
(OPTION)
JET-MAIN,#82
€ 9.50
92064
920641204
ref: 92064
JET-PILOT,#35
€ 3.50
92144
921441994
ref: 92144
SPRING
€ 2.50
92145
921451407
ref: 92145
SPRING,THROTTLE VALVE
€ 7.00
92145A
921451408
ref: 92145A
SPRING,THROTTLE VALVE
€ 1.00
92152
921520218
ref: 92152
COLLAR,0.8X4.2X5.0
€ 1.50
92153
921531187
ref: 92153
BOLT,FLANGED,6X30
€ 2.50
92191
921911142
ref: 92191
TUBE,3.5X6.5X298
€ 8.00
92191A
921911204
ref: 92191A
TUBE
€ 3.00
92191B
921911768
ref: 92191B
TUBE,3.5X6.5X350
€ 5.50
