CYLINDER HEAD
AN112D6F KAZER 2006 CANADA

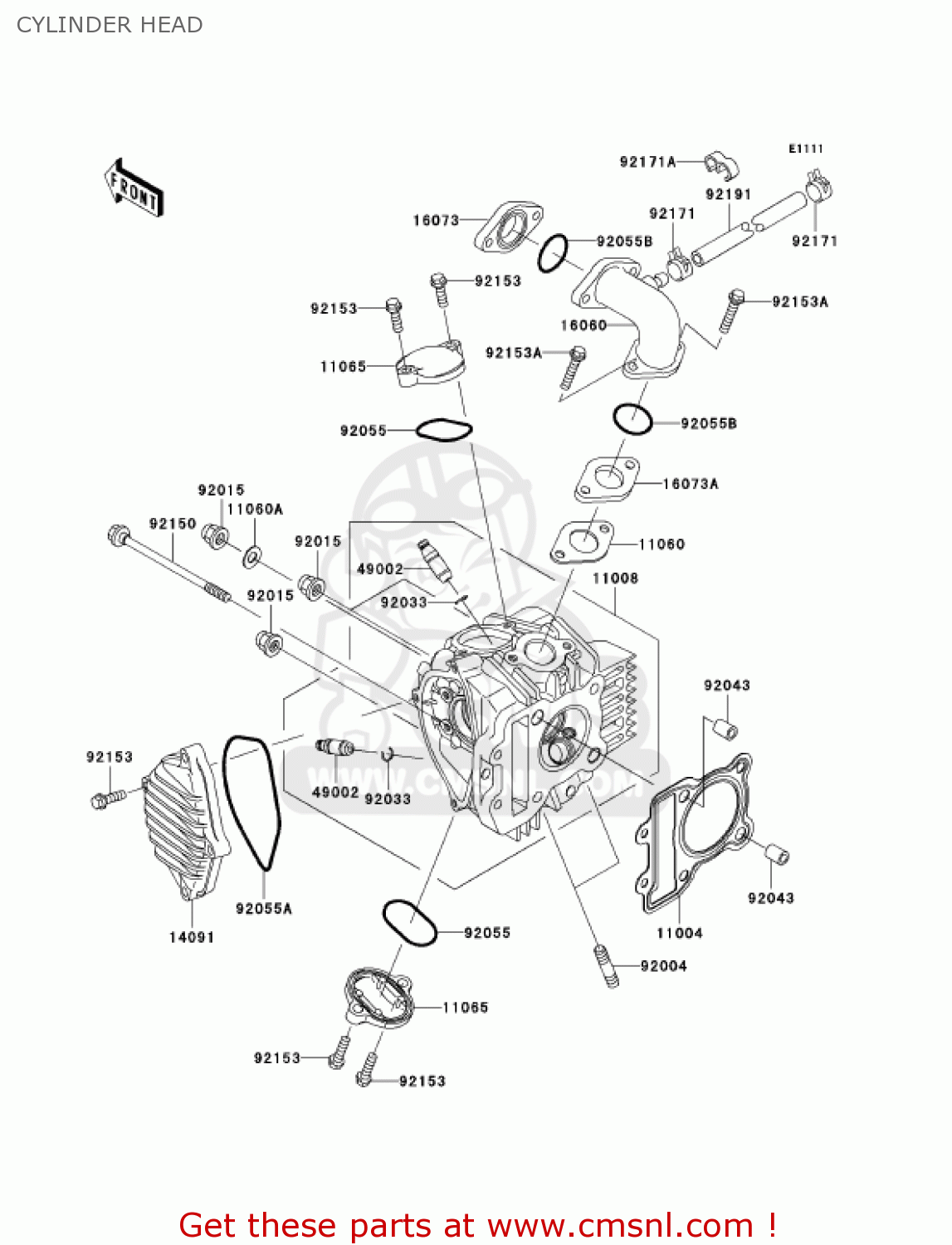

Cylinder head diagram AN112D6F KAZER 2006 CANADA
CYLINDER HEAD AN112D6F KAZER 2006 CANADA
×
prices are in EUR
ref
part #
description
quantity
11004
110041338
ref: 11004
GASKET-HEAD (NAS)
€ 9.00
11008
110081431
ref: 11008
HEAD-COMP-CYLINDER
€ 335.50
11060
110601753
ref: 11060
GASKET,INTAKE PIPE (NAS)
€ 2.00
11060A
110601862
ref: 11060A
GASKET (NAS)
€ 2.00
11065
110651177
ref: 11065
CAP,VALVE ADJUSTING
€ 16.50
14091
140911447
ref: 14091
COVER,CAMSHAFT
€ 6.50
16060
160601079
ref: 16060
PIPE-INTAKE
€ 18.00
16073
160731102
ref: 16073
INSULATOR,CARBURETOR
€ 5.50
16073A
160731108
ref: 16073A
INSULATOR
€ 2.00
49002
490021130
ref: 49002
GUIDE-VALVE
€ 22.50
92004
920041234
ref: 92004
STUD
€ 3.50
92015
920151151
ref: 92015
NUT,CAP,8MM
€ 3.00
92033
920331247
ref: 92033
RING-SNAP
€ 2.00
92043
920431264
ref: 92043
PIN,DOWEL,8.2X10X14
€ 0.50
92055
920551231
ref: 92055
RING-O,ADJUST CAP
€ 7.00
92055A
920551527
ref: 92055A
RING-O
€ 8.50
92055B
920551528
ref: 92055B
RING-O,25.5X2.0
€ 6.00
92150
921501761
ref: 92150
BOLT,6X106
€ 5.50
92153
921531184
ref: 92153
BOLT-FLANGED-SMALL
€ 2.50
92153A
921531187
ref: 92153A
BOLT,FLANGED,6X30
€ 2.50
92171
921711051
ref: 92171
CLAMP
€ 0.50
92171A
921711184
ref: 92171A
CLAMP
€ 1.50
92191
921911734
ref: 92191
TUBE,4.5X9.5X410 WHIT
€ 2.50
