CRANKCASE
AN112D6F KAZER 2006 CANADA

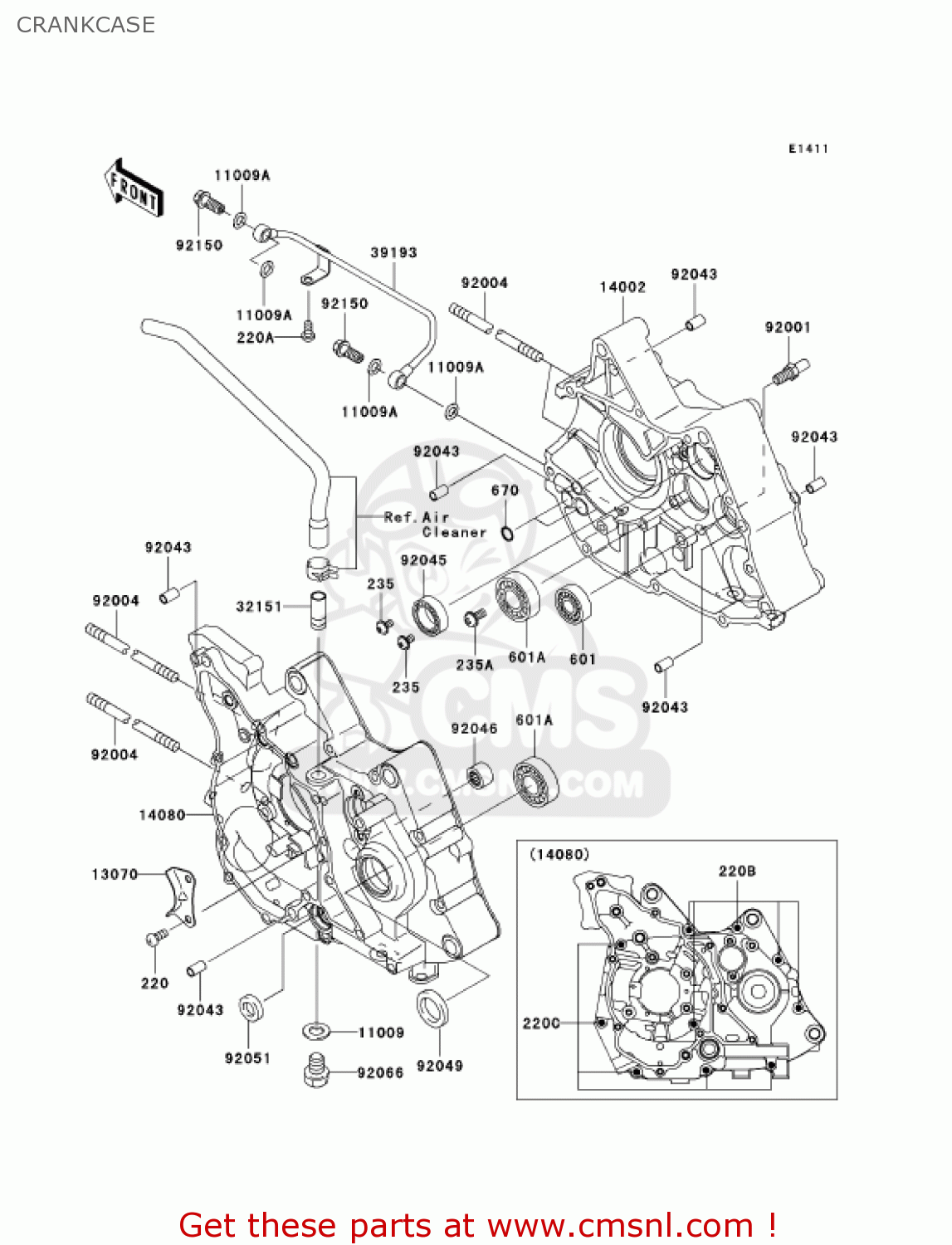

Crankcase diagram AN112D6F KAZER 2006 CANADA
CRANKCASE AN112D6F KAZER 2006 CANADA
×
prices are in EUR
ref
part #
description
quantity
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
€ 2.00
220A
220X0612
ref: 220A
SCREW-PAN-CROS
€ 2.50
220B
220X0650
ref: 220B
SCREW-PAN-CROS
€ 2.50
220C
220X0675
ref: 220C
SCREW-PAN-CROS
€ 2.50
235
235B0510
ref: 235
SCREW-PAN-WP-CROS
€ 2.50
235A
235B0614
ref: 235A
SCREW-PAN-WP-CROS
€ 2.50
601
601A6201
ref: 601
BEARING-BALL
€ 7.00
601A
601A6203
ref: 601A
BEARING-BALL,#6203
€ 10.50
670
670B1510
ref: 670
O RING,9.8X1.9
€ 2.50
11009
110091332
ref: 11009
GASKET,DRAIN PLUG (NAS)
€ 3.50
11009A
110091344
ref: 11009A
GASKET,OIL PIPE,8.2X1 (NAS)
€ 1.50
13070
130701319
ref: 13070
GUIDE
€ 0.50
14002
140021971
ref: 14002
CRANKCASE,RH
€ 162.00
14080
140800105
ref: 14080
CRANKCASE,LH
€ 76.50
32151
321511961
ref: 32151
PIPE
€ 4.00
39193
391931042
ref: 39193
PIPE-OIL
€ 41.50
92001
920011455
ref: 92001
BOLT
€ 3.00
92004
920041281
ref: 92004
STUD,8X208
€ 4.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92045
920451171
ref: 92045
BEARING-BALL,6804
€ 30.00
92046
920461148
ref: 92046
BEARING-NEEDLE,HK1312
€ 19.50
92049
920491048
ref: 92049
OIL SEAL,SC22325
€ 6.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92066
920661174
ref: 92066
PLUG,OIL DRAIN,12X15
€ 4.00
92150
921501556
ref: 92150
BOLT,BANJO,8X20
€ 6.00
