HANDLEBAR
AN110C6 KAZER 2001 CANADA

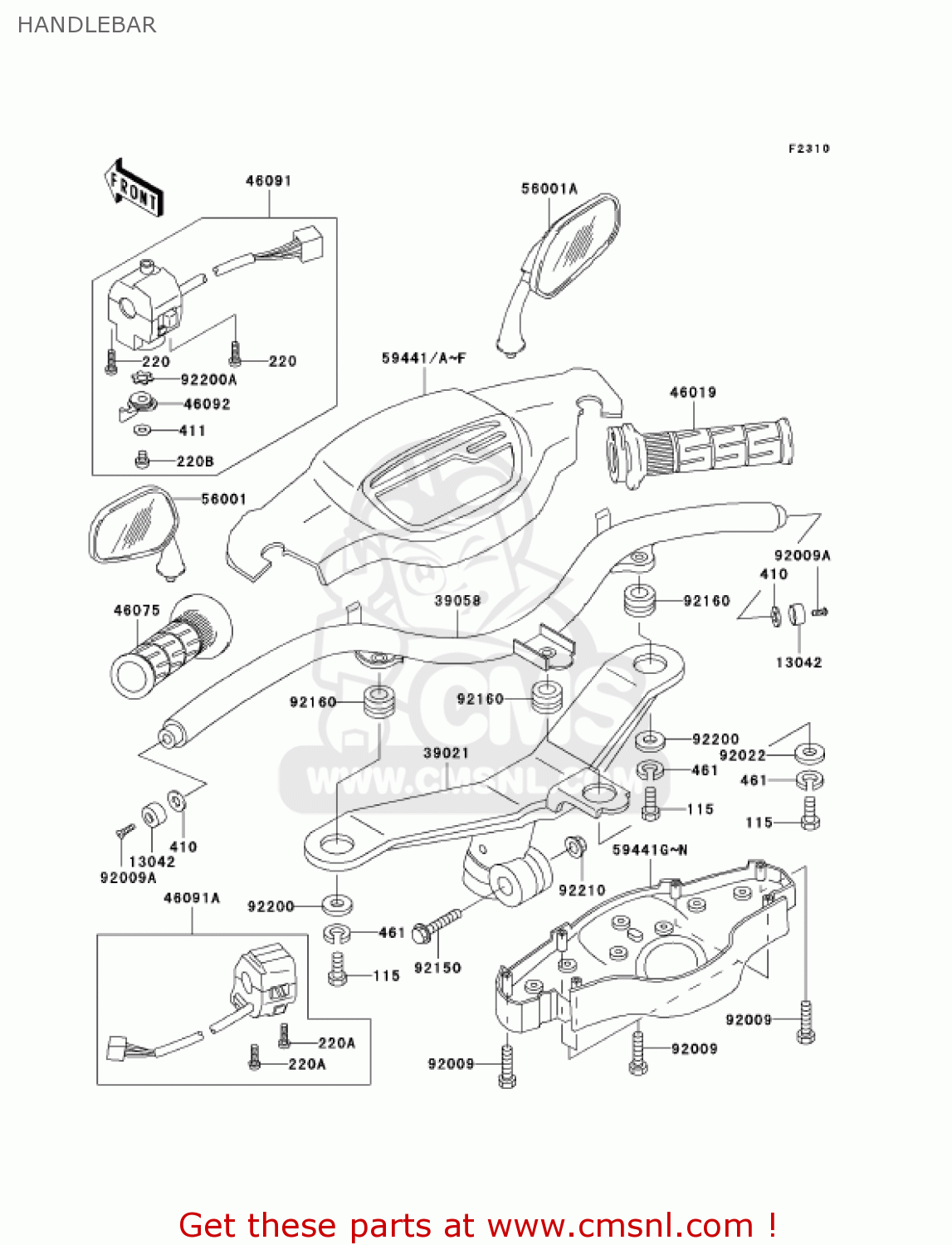

Handlebar diagram AN110C6 KAZER 2001 CANADA
HANDLEBAR AN110C6 KAZER 2001 CANADA
×
prices are in EUR
ref
part #
description
quantity
115
115J0820
ref: 115
BOLT-SMALL-UPSET,8X20
€ 3.00
220
220C0530
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220C0540
ref: 220A
SCREW-PAN-CROS
€ 1.50
220B
220C0608
ref: 220B
SCREW-PAN-CROS,6X8
€ 1.00
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
€ 0.50
461
461K0800
ref: 461
WASHER-SPRING,8MM,BLA
€ 1.50
13042
130421095
ref: 13042
WEIGHT,HANDLE
€ 12.50
39021
390211055
ref: 39021
POLE HANDLE BRACKET
€ 31.50
39058
390581068
ref: 39058
HANDLE,COMPLETE
€ 38.50
46019
460191113
ref: 46019
THROTTLE GRIP ASSEMBLY
€ 12.50
46075
460751156
ref: 46075
GRIP,LH
€ 8.00
46091
460911610
ref: 46091
CONTROLLER HOUSING ASSEMBLY
€ 100.00
46091A
460911620
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 67.00
46092
460921198
ref: 46092
CHOKE LEVER GRIP
€ 9.50
56001
560011485
ref: 56001
MIRROR-ASSY,LH
€ 22.00
56001A
560011486
ref: 56001A
MIRROR-ASSY,RH
€ 22.00
59441A
594411121TB
ref: 59441A
COVER-HANDLE,UPP,S.RE
€ 21.00
59441B
594411121U9
ref: 59441B
COVER HANDLE,UPPER,GR
€ 21.00
59441C
5944111213X
ref: 59441C
COVER-HANDLE,UPP,L.GR
€ 15.00
59441D
5944111214K
ref: 59441D
COVER-HANDLE,UPP,G.SI
€ 21.00
59441E
594411121406
ref: 59441E
COVER-HANDLE,UPP,P.B.
€ 15.00
59441G
594411168E3
ref: 59441G
COVER-HANDLE,LWR,P.B.
€ 13.50
59441H
594411168TB
ref: 59441H
COVER-HANDLE,LWR,S.RE
€ 13.50
59441I
594411168U9
ref: 59441I
COVER-HANDLE,LWR,P.T.
€ 13.50
59441J
5944111683X
ref: 59441J
COVER-HANDLE,LWR,L.GR
€ 13.50
59441K
594411168405
ref: 59441K
COVER-HANDLE,LWR,O.RE
€ 13.50
59441L
594411168406
ref: 59441L
COVER-HANDLE,LWR,P.B.
€ 13.50
59441N
5944111687I
ref: 59441N
COVER-HANDLE,LWR,M.N.
€ 13.50
92009
920091605
ref: 92009
SCREW,4X16
€ 2.00
92009A
920091717
ref: 92009A
SCREW
€ 2.50
92022
920221561
ref: 92022
WASHER,8.5X20X1.6
€ 2.50
92150
921501719
ref: 92150
BOLT,FLANGED,10X51
€ 6.50
92160
921601558
ref: 92160
BRACKET DAMPER HANDLE
€ 3.00
92200
922001165
ref: 92200
WASHER
€ 2.00
92200A
922001341
ref: 92200A
WASHER
€ 4.50
92210
922101080
ref: 92210
NUT
€ 7.00
