CYLINDER HEAD
AN110C6 KAZER 2001 CANADA

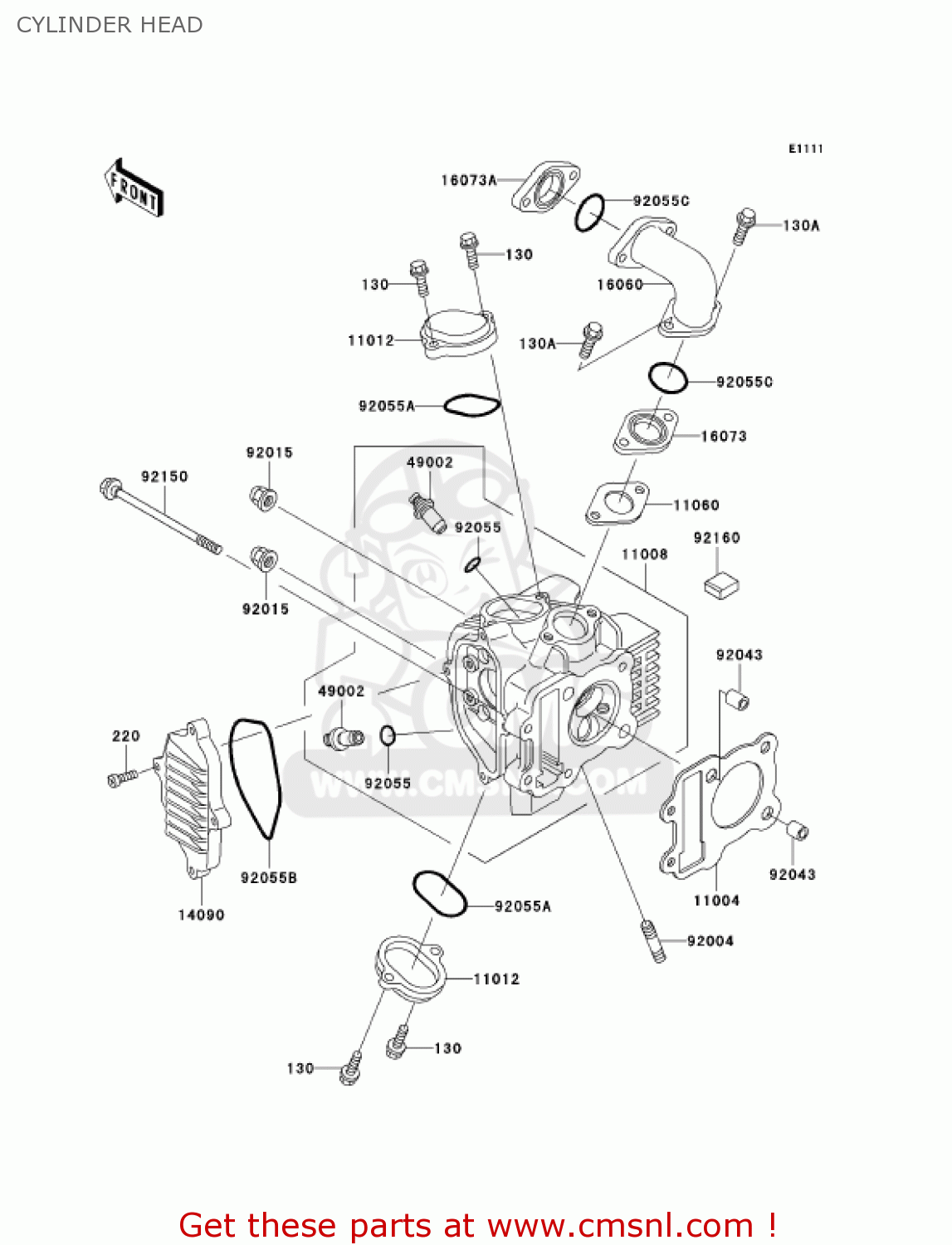

Cylinder head diagram AN110C6 KAZER 2001 CANADA
CYLINDER HEAD AN110C6 KAZER 2001 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130Y0620
ref: 130
BOLT-FLANGED
€ 2.50
130A
130Y0625
ref: 130A
BOLT-FLANGED
€ 2.00
220
220X0620
ref: 220
SCREW-PAN-CROS
€ 3.00
11004
110041255
ref: 11004
HEAD GASKET
€ 30.50
11008
110081426
ref: 11008
HEAD-COMP-CYLINDER
€ 107.50
11012
110121303
ref: 11012
CAP,VALVE ADJUSTING
€ 16.50
11060
110601371
ref: 11060
INTAKE PIPE GASKET
€ 2.00
14090
140901375
ref: 14090
CAMSHAFT SPROCKET COVER
€ 26.50
16060
160601090
ref: 16060
PIPE-INTAKE
€ 8.50
16073
160731101
ref: 16073
HEAD INSULATOR
€ 4.00
16073A
160731102
ref: 16073A
INSULATOR,CARBURETOR
€ 5.50
49002
490021056
ref: 49002
GUIDE-VALVE
€ 19.50
92004
920041060
ref: 92004
STUD,8X28.5
€ 3.00
92015
920151151
ref: 92015
NUT,CAP,8MM
€ 3.00
92043
920431264
ref: 92043
PIN,DOWEL,8.2X10X14
€ 0.50
92055
920551177
ref: 92055
RING-O,10.3X1.2
€ 5.00
92055A
920551231
ref: 92055A
RING-O,ADJUST CAP
€ 7.00
92055B
920551527
ref: 92055B
RING-O
€ 8.50
92055C
920551528
ref: 92055C
RING-O,25.5X2.0
€ 6.00
92150
921501761
ref: 92150
BOLT,6X106
€ 5.50
92160
921601623
ref: 92160
DAMPER
€ 2.00
