FENDERS
AN110C6 KAZER 2001 CANADA

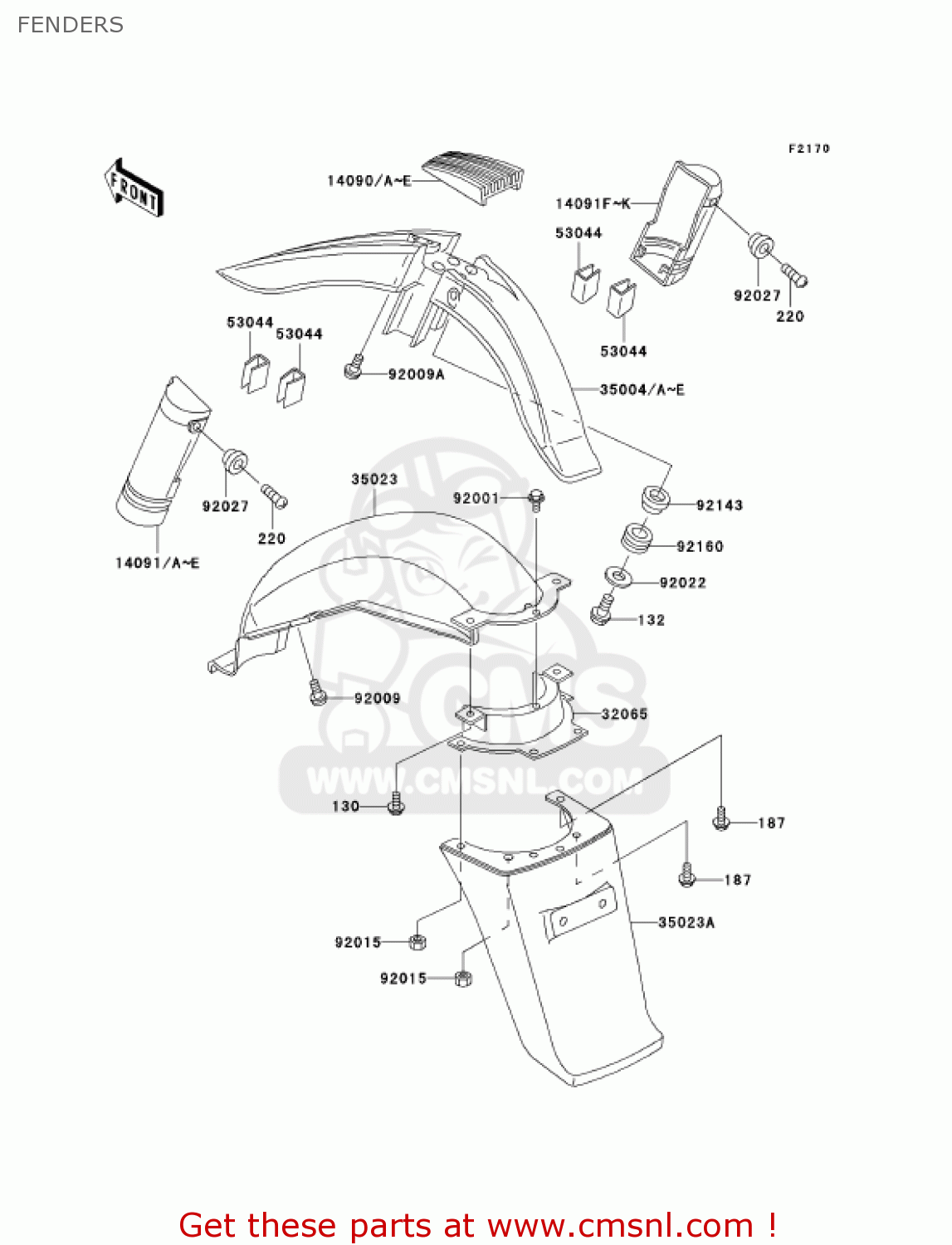

Fenders diagram AN110C6 KAZER 2001 CANADA
FENDERS AN110C6 KAZER 2001 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130D0612
ref: 130
BOLT,FLANGED
€ 0.50
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
187
187B0625
ref: 187
BOLT-UPSET-WSP
€ 0.50
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
14090A
140901954TB
ref: 14090A
COVER,FRONT FENDER,UP
€ 4.50
14090B
140901954U9
ref: 14090B
COVER,FRONT FENDER,UP
€ 4.50
14090C
1409019544K
ref: 14090C
COVER,FRONT FENDER,UP
€ 4.50
14090D
140901954406
ref: 14090D
COVER,FRONT FENDER,UP
€ 3.50
14091A
140911417TB
ref: 14091A
COVER,FRONT FENDER,LH
€ 6.50
14091B
140911417U9
ref: 14091B
COVER,FRONT FENDER,LH
€ 6.50
14091C
1409114174K
ref: 14091C
COVER,FRONT FENDER,LH
€ 6.50
14091D
140911417406
ref: 14091D
COVER,FRONT FENDER,LH
€ 4.00
14091G
140911418TB
ref: 14091G
COVER,FRONT FENDER,RH
€ 6.50
14091H
140911418U9
ref: 14091H
COVER,FRONT FENDER,RH
€ 6.50
14091I
1409114184K
ref: 14091I
COVER,FRONT FENDER,RH
€ 12.50
14091J
140911418406
ref: 14091J
COVER,FRONT FENDER,RH
€ 4.00
32065
320651313
ref: 32065
FENDER BRACKET,REAR
€ 17.50
35004A
350041439TB
ref: 35004A
FENDER-FRONT,S.RED
€ 20.00
35004B
350041439U9
ref: 35004B
FENDER-FRONT,P.T.GREE
€ 22.50
35004C
3500414394K
ref: 35004C
FENDER-FRONT,G.SILVER
€ 23.00
35004D
350041439406
ref: 35004D
FENDER-FRONT,P.B.BLAC
€ 60.50
35023
350231372
ref: 35023
REAR FENDER,FRONT
€ 17.00
35023A
350231394
ref: 35023A
REAR FENDER,REAR
€ 15.50
53044
530441280
ref: 53044
TRIM
€ 2.50
92001
920011862
ref: 92001
BOLT,W/SP,6X14
€ 2.50
92009
920091288
ref: 92009
SCREW,6X14
€ 2.00
92009A
920091444
ref: 92009A
SCREW
€ 2.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
920271933
ref: 92027
COLLAR,L=5.6
€ 3.50
92143
921431016
ref: 92143
COLLAR,L=9.6
€ 4.00
92160
921601557
ref: 92160
DAMPER
€ 2.00
