CHASSIS ELECTRICAL EQUIPMENT

AN110C6 KAZER 2001 CANADA

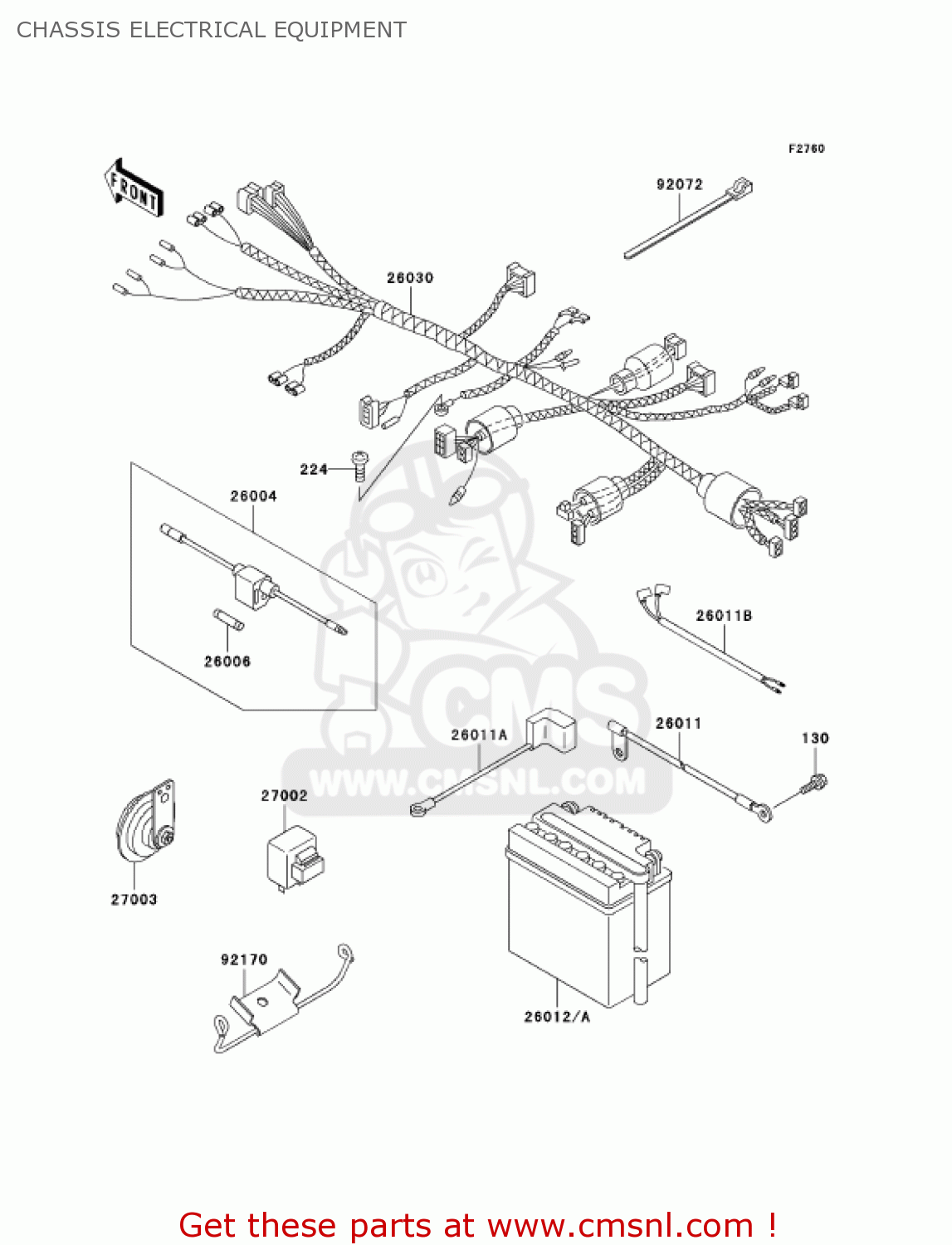

Chassis electrical equipment diagram AN110C6 KAZER 2001 CANADA

CHASSIS ELECTRICAL EQUIPMENT AN110C6 KAZER 2001 CANADA
CHASSIS ELECTRICAL EQUIPMENT AN110C6 KAZER 2001 CANADA
CHASSIS ELECTRICAL EQUIPMENT AN110C6 KAZER 2001 CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0610
ref: 130
BOLT-FLANGED
130J0610
€ 1.50
224
224D0610
ref: 224
SCREW-PAN-WP-CROS,6X1
€ 1.50
26004
260041100
ref: 26004
FUSE ASSEMBLY
260041100
€ 19.50
26006
260061071
ref: 26006
FUSE,15A,L=30
€ 3.00
26011
260111608
ref: 26011
BATTERY WIRE LEAD,(-)
€ 15.00
26011A
260111622
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 15.50
26011B
260111644
ref: 26011B
FRONT BRAKE SWITCH WIRE LEAD
€ 8.00
26012
260121295
ref: 26012
BATTERY,YB5L-B,12V 5A
€ 34.00
26012A
260121316
ref: 26012A
BATTERY,GM5Z-3B,12V 5
€ 34.00
26030
260301594
ref: 26030
HARNESS,MAIN
€ 87.00
27002
270021091
ref: 27002
RELAY-ASSY
270021091
€ 57.00
27003
270031380
ref: 27003
HORN
€ 13.50
92072
920721237
ref: 92072
BAND,L=250
920721237
€ 2.00
92170
921701615
ref: 92170
HARNESS CLAMP
€ 6.00
