HANDLEBAR
Z1A 1974 USA CANADA

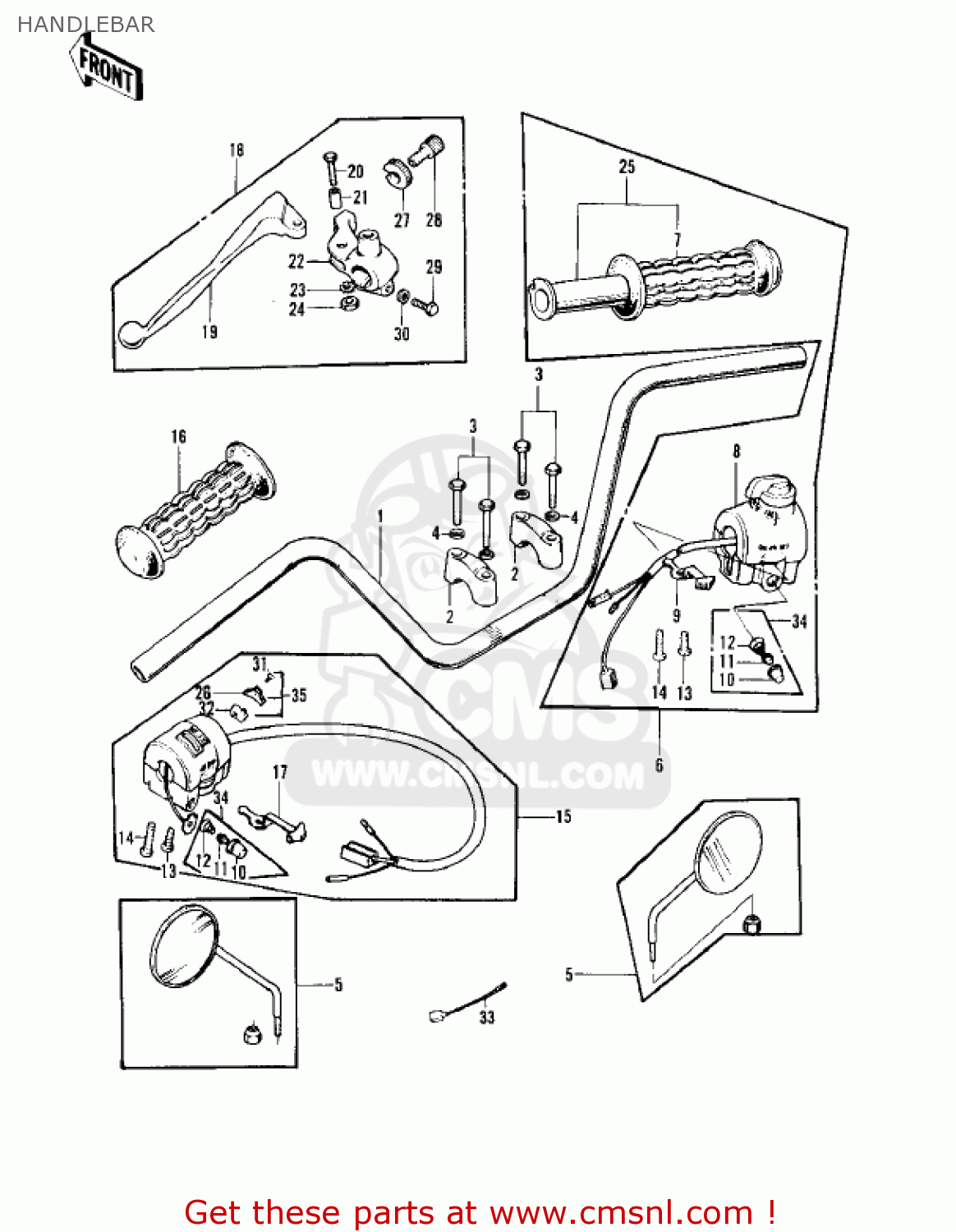

Handlebar diagram Z1A 1974 USA CANADA
HANDLEBAR Z1A 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
46003029
ref: 1
HANDLE
€ 132.00
2
46012008
ref: 2
HOLDER-HANDLE,UPP
€ 23.00
3
920011405
ref: 3
BOLT,8X38
€ 10.00
4
461F0800
ref: 4
WASHER-SPRING,8MM
€ 0.50
5
560011030
ref: 5
MIRROR-ASSY
€ 99.00
6
46018025
ref: 6
Z1
GRIP ASSY,R.H
€ 42.00
7
46061012
ref: 7
GRIP,RUBBER,RH
€ 18.50
8
46132001
ref: 8
Z1/A
CASE ASSY-R.H SWITCH
€ 64.50
8
46132018
ref: 8
Z1/B
CASE ASSEMBLY,RH
€ 354.00
8
46132014
ref: 8
CANADA
CASE ASSY,R.H
€ 92.50
9
46043004
ref: 9
KNOB-LIGHTING SW R.H
€ 3.00
10
46028003
ref: 10
Z1/A
BUTTON-HORN
€ 5.50
10
46028006
ref: 10
Z1/A
BUTTON,HORN PUSH
€ 6.50
11
46079003
ref: 11
CONTACT-HORN SWITCH
€ 5.50
12
46031005
ref: 12
SPRING-HORN SWITCH
€ 5.50
13
220B0530A
ref: 13
SCREW-PAN HEAD,5X30
€ 2.00
14
220B0535A
ref: 14
SCREW-PAN HEAD,5X35
€ 2.00
15
46091009
ref: 15
Z1/A
CASE ASSY-L.H SWITCH
€ 59.50
15
460911079
ref: 15
Z1-B
HOUSING-ASSY-CONTROL,
€ 129.50
16
46075017
ref: 16
GRIP,LH
€ 15.50
17
46043005
ref: 17
KNOB-LIGHTING SW L.H
€ 6.50
18
46076025
ref: 18
LEVER ASSY-CLUTCH
€ 29.00
19
46092015
ref: 19
LEVER-GRIP,CLUTCH
€ 11.50
20
92007020
ref: 20
BOLT-HEX HEAD,5X20
€ 2.50
21
46059011
ref: 21
COLLAR,LEVER
€ 3.50
22
4609401121
ref: 22
HOLDER-CLUTCH LEV,BLK
€ 23.00
23
464H0500
ref: 23
WASHER-LOCK,5MM
€ 0.50
24
312B0500A
ref: 24
NUT,5MM
€ 0.50
25
46019025
ref: 25
GRIP ASSY-THROTTLE
€ 16.00
26
46044013
ref: 26
KNOB,LIGHTING SWITCH,
€ 8.00
27
46056005
ref: 27
NUT-LOCK
€ 6.00
28
46055006
ref: 28
SCREW-CABLE ADJUST
€ 15.50
29
110N0625
ref: 29
BOLT-HEX HEAD,6X25
€ 3.50
30
410B0600
ref: 30
WASHER-PLAIN-SMALL,6M
€ 0.50
31
220B0305A
ref: 31
SCREW-PAN HEAD,3X5
€ 1.00
32
46089016
ref: 32
Z1/A
SWITCH ASSEMBLY,LH
€ 22.00
32
46089014
ref: 32
Z1-B
SWITCH, L.H
€ 15.00
33
26011091
ref: 33
CANADA, USE WITH 461
WIRE LEAD
€ 8.00
34
270101009
ref: 34
SWITCH ASSY,HORN BUTN
€ 5.50
35
99990530
ref: 35
DIMMER SWITCH KIT A
€ 1.00
