FRONT MASTER CYLINDER
Z1A 1974 USA CANADA

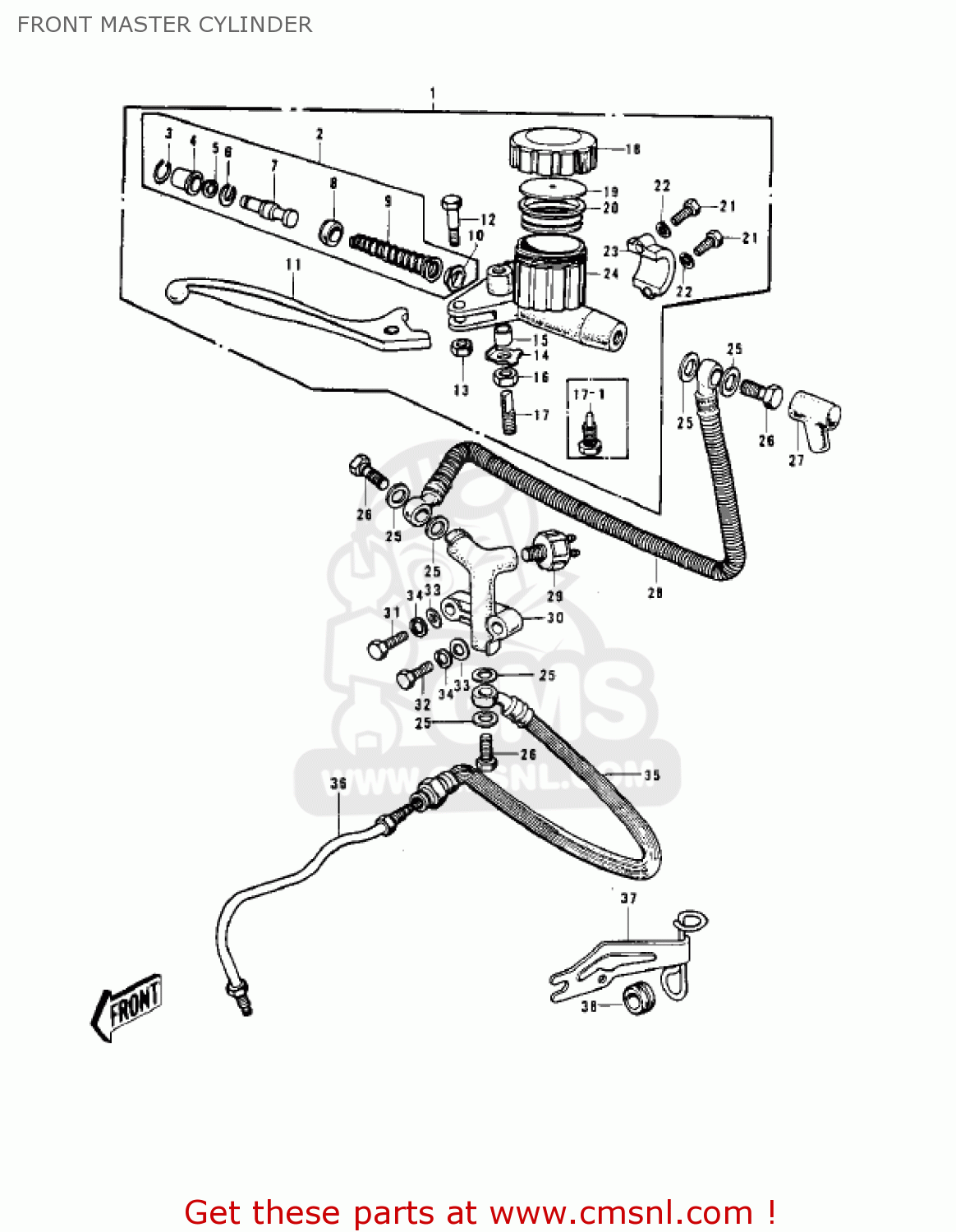

Front master cylinder diagram Z1A 1974 USA CANADA
FRONT MASTER CYLINDER Z1A 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
43015032
ref: 1
Z1
CYLINDER ASSY, MASTER
€ 122.50
1
43015032
ref: 1
Z1-A/B
CYLINDER ASSY, MASTER
€ 122.50
1
43015032
ref: 1
CYLINDER ASSY, MASTER
€ 122.50
2
43073001
ref: 2
KIT-KHI PARTS
€ 92.00
3
43025001
ref: 3
STOPPER-BOOTS
€ 3.00
4
43024001
ref: 4
BOOTS
€ 4.50
5
481J1800
ref: 5
CIRCLIP-TYPE-C,18MM
€ 2.50
6
43022001
ref: 6
STOPPER-PISTON
€ 2.50
7
43072001
ref: 7
PISTON ASSY-MSTR CYL
€ 17.00
8
43019001
ref: 8
CUP-BRAKE
€ 8.50
9
43018001
ref: 9
SPRING ASSY-RETURN
€ 12.50
10
43017001
ref: 10
VALVE ASSY-CHECK
€ 9.00
11
43029003
ref: 11
LEVER-GRIP
€ 58.50
12
43033001
ref: 12
BOLT-LEVER FITTING
€ 6.00
13
312B0600
ref: 13
NUT,6MM
€ 0.50
14
43031001
ref: 14
WASHER,LOCK,8MM
€ 3.50
15
43074001
ref: 15
NOT REQ'D 43015-032
TUBE
€ 2.50
16
311B0800
ref: 16
NUT,8MM
€ 0.50
17
43030002
ref: 17
USE FOR 43015-008/01
BOLT-LEVER ADJUSTING
€ 3.50
17-1
43030003
ref: 17-1
USE FOR 43015-032
BOLT,LEVER ADJUSTING
€ 7.50
18
43026003
ref: 18
CAP,OIL CUP
€ 20.50
19
43027001
ref: 19
PLATE-MASTER CYLINDER
€ 4.50
20
43028001
ref: 20
DIAPHRAGM
€ 27.50
21
110N0625
ref: 21
BOLT-HEX HEAD,6X25
€ 3.50
22
411B0600
ref: 22
WASHER-PLAIN,6MM
€ 0.50
23
43034001
ref: 23
HOLDER-MASTER CYL
€ 29.50
24
43016002
ref: 24
BODY-MASTER CYLINDER
€ 209.50
25
43067001
ref: 25
WASHER,10.5X15X1.5
€ 1.50
26
920021888
ref: 26
BOLT,OIL,L=23
€ 3.50
27
490061041
ref: 27
BOOT,DUST
€ 7.50
28
43059007
ref: 28
HOSE-BRAKE
€ 100.00
29
43065001
ref: 29
SWITCH,BRAKE,FR
€ 37.50
30
43061002
ref: 30
JOINT-THREE WAY
€ 50.00
31
110N0632
ref: 31
BOLT,6X32
€ 2.50
32
110N0640
ref: 32
BOLT-HEX HEAD,6X40
€ 4.00
33
461F0600
ref: 33
WASHER-SPRING,6MM
€ 0.50
34
411B0600
ref: 34
WASHER-PLAIN,6MM
€ 0.50
35
43059011
ref: 35
HOSE-BRAKE
€ 117.50
36
43060004
ref: 36
PIPE-BRAKE
€ 20.50
37
43063001
ref: 37
BRACKET,BRAKE HOSE
€ 36.50
38
43064001
ref: 38
DAMPER RUBBER-CAL HSE
€ 2.50
