CRANKCASE BOLT & STUD PATTERN
Z1A 1974 USA CANADA

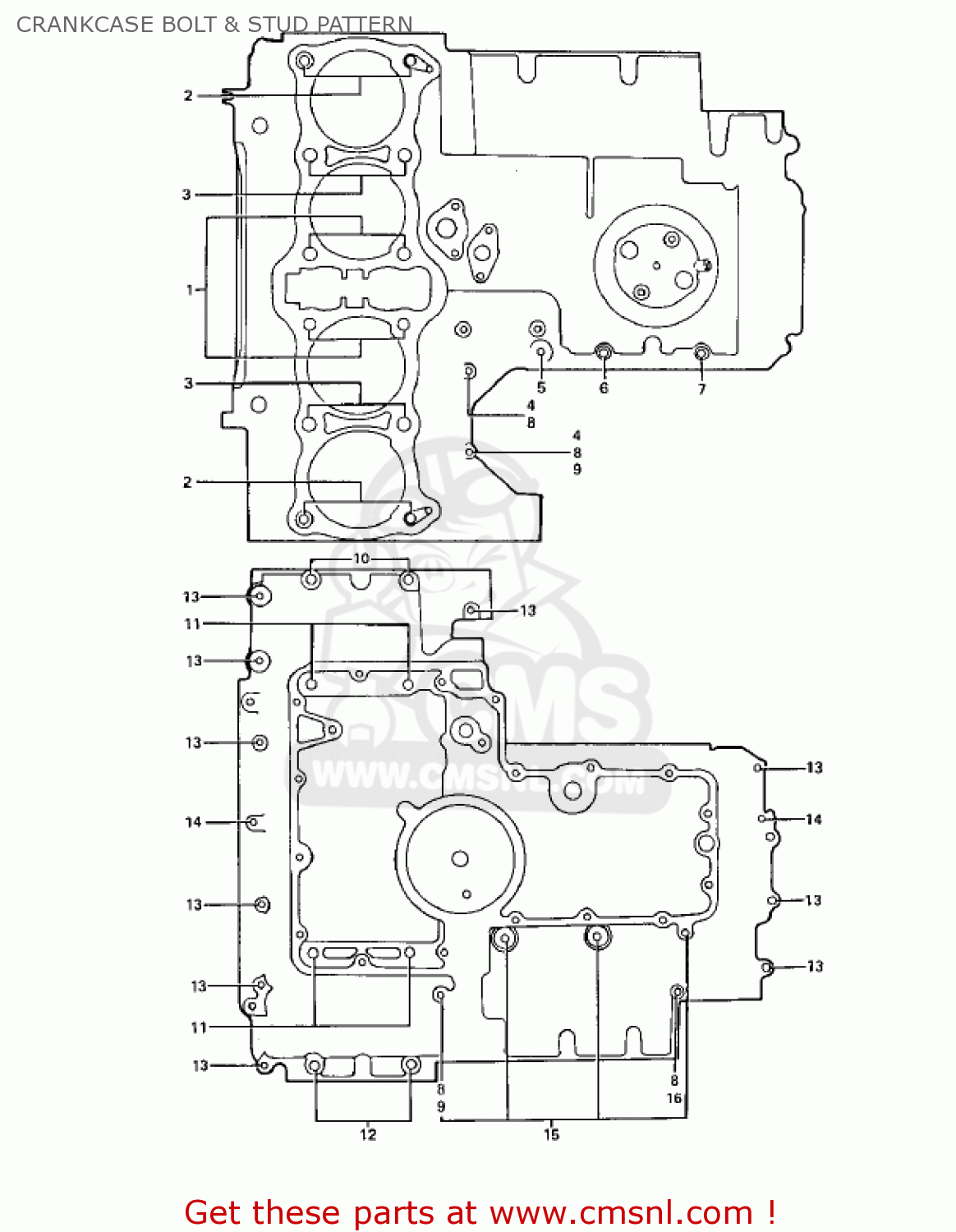

Crankcase bolt & stud pattern diagram Z1A 1974 USA CANADA
CRANKCASE BOLT & STUD PATTERN Z1A 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
920041002
ref: 1
STUD, 10X167
€ 10.50
1
920041004
ref: 1
STUD, 10X133
€ 11.50
2
920041003
ref: 2
STUD, 10X158
€ 10.50
3
920041004
ref: 3
STUD, 10X133
€ 11.50
3
920041002
ref: 3
STUD, 10X167
€ 10.50
4
92003109
ref: 4
BOLT-HEX HEAD,6X41
€ 5.50
5
92003110
ref: 5
BOLT-HEX HEAD,6X54
€ 1.50
6
92003111
ref: 6
BOLT-HEX HEAD,6X99
€ 2.00
7
92003113
ref: 7
BOLT-HEX HEAD,6X116
€ 3.00
8
21126008
ref: 8
CLAMP,WIRING HARNESS
€ 3.00
9
410B0600
ref: 9
WASHER-PLAIN-SMALL,6M
€ 0.50
10
130P0895
ref: 10
BOLT-FLANGED,8X95
€ 7.00
11
92003107
ref: 11
BOLT-HEX HEAD,8X72
€ 10.00
12
92003108
ref: 12
BOLT-HEX HEAD,8X81
€ 4.50
13
92003109
ref: 13
BOLT-HEX HEAD,6X41
€ 5.50
14
92003110
ref: 14
BOLT-HEX HEAD,6X54
€ 1.50
15
130G0695
ref: 15
BOLT-FLANGED,6X95
€ 3.50
16
130G0670
ref: 16
BOLT-FLANGED,6X70
€ 0.50
