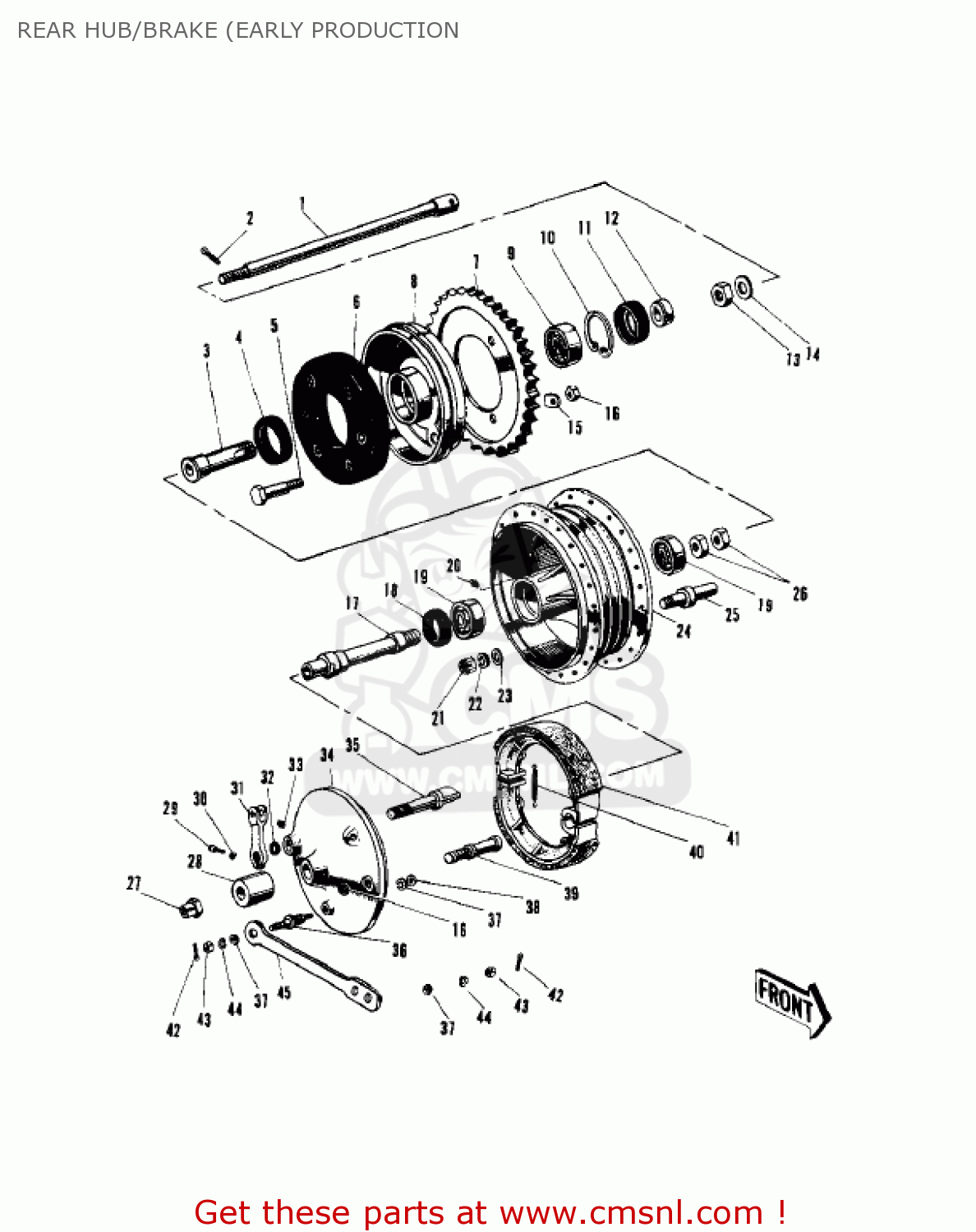

REAR HUB/BRAKE (EARLY PRODUCTION

ref

part #

description

quantity

1

42031018
ref: 1

AXLE,REAR

€ 67.50

2

550D4030
ref: 2

PIN-COTTER,4.0X30

€ 1.50

?

42033002
ref: ?
Includes items 3, 4,

REAR HUB COUPLING ASSEMBLY

€ 253.00

3

42036004
ref: 3

REAR AXLE SLEEVE,LH

€ 67.50

4

92053008
ref: 4

OIL SEAL COUPLING

€ 9.50

5

92003032
ref: 5

BOLT,SHOCK DAMPER FITTING

€ 9.50

6

42014011
ref: 6
WHN EXH USE 42014-01

REAR HUB SHOCK DAMPER

€ 97.50

6

42014011
ref: 6

REAR HUB SHOCK DAMPER

€ 97.50

7

42041034
ref: 7
S.T.D.

REAR SPROCKET 41T

€ 30.00

7

42041037
ref: 7
W1 OPTION

REAR SPROCKET,43T

€ 140.00

7

42041036
ref: 7
W1 OPTION

REAR SPROCKET 42T

€ 36.50

7

42041036
ref: 7
S.T.D.

REAR SPROCKET 42T

€ 36.50

7

42041034
ref: 7
W1SS,W2SS W2TT OPTIO

REAR SPROCKET 41T

€ 30.00

7

42041037
ref: 7
W1SS,W2SS W2TT OPTIO

REAR SPROCKET,43T

€ 140.00

9

601B6205
ref: 9

BEARING-BALL,#6205C3

€ 14.00

10

920331043
ref: 10

RING,SNAP,56.2M/M

€ 6.00

11

92052006
ref: 11

OIL SEAL WTC35527

€ 6.50

12

42037009
ref: 12
WHN EXH USE 42037-01

REAR AXLE COLLAR,LH

€ 4.50

12

42037019
ref: 12

REAR AXLE COLLAR,LH

€ 6.50

13

42045007
ref: 13

NUT,LH SLEEVE

€ 20.00

14

42046010
ref: 14

WASHER-L.H SLEEVE

€ 5.50

15

92088015
ref: 15

WASHER-SPROCKET LOCK

€ 15.50

16

315B1200
ref: 16

NUT,12MM

€ 0.50

17

42011001
ref: 17

REAR AXLE SLEEVE,RH

€ 136.00

18

652A355508
ref: 18

OIL SEAL RR AXLE R.H

€ 7.50

19

92116001
ref: 19

BEARING-ROLLER,#30205

€ 18.50

20

92005001
ref: 20

GREASE NIPPLE,6MM

€ 4.50

21

321B1200
ref: 21

NUT-CASTLE

€ 2.50

22

461F1200
ref: 22

WASHER-SPRING,12MM

€ 0.50

23

411B1200
ref: 23

WASHER-PLAIN,12MM

€ 0.50

25

42038002
ref: 25

SHOCK DAMPER STUD

€ 20.00

26

42045008
ref: 26

NUT,24MM

€ 6.50

27

42045014
ref: 27

NUT CASTLE, 16M/M

€ 6.50

28

42032007
ref: 28

COLLAR-REAR HUB R.H

€ 7.50

29

112G0640
ref: 29

BOLT-UPSET,6X40

€ 2.50

30

461F0600
ref: 30

WASHER-SPRING,6MM

€ 0.50

31

42029009
ref: 31

REAR BRAKE CAM LEVER

€ 72.50

32

41051001
ref: 32

DUST SHIELD-BRAKE CAM

€ 2.50

33

92080002
ref: 33

GREASE NIPPLE

€ 3.00

?

42006017
ref: ?
Includes items 13 an

PANEL ASSY REAR BRAKE

€ 0.00

35

42026017
ref: 35

REAR BRAKE CAMSHAFT

€ 100.50

36

42017004
ref: 36

REAR TORQUE LINK PIN

€ 22.00

37

411B1000
ref: 37

WASHER-PLAIN,10MM

€ 0.50

38

314B1000
ref: 38

NUT,10MM

€ 0.50

39

41044002
ref: 39

REAR BRAKE SHOE FULCRUM

€ 19.00

40

42020003
ref: 40

SPRING-BRAKE SHOE

€ 6.50

41

42019007
ref: 41

SHOE-BRAKE (MCA)

€ 70.50

42

550D2020
ref: 42

PIN-COTTER,2.0X20

€ 0.50

43

321B1000
ref: 43

NUT-CASTLE,10MM

€ 2.50

44

461F1000
ref: 44

WASHER-SPRING,10MM

€ 0.50

45

43007013
ref: 45

TORQUE LINK,REAR BRK

€ 3.50
