CARBURETORS (W2SS/W2TT)
W2SS COMMANDER 1968 USA CANADA

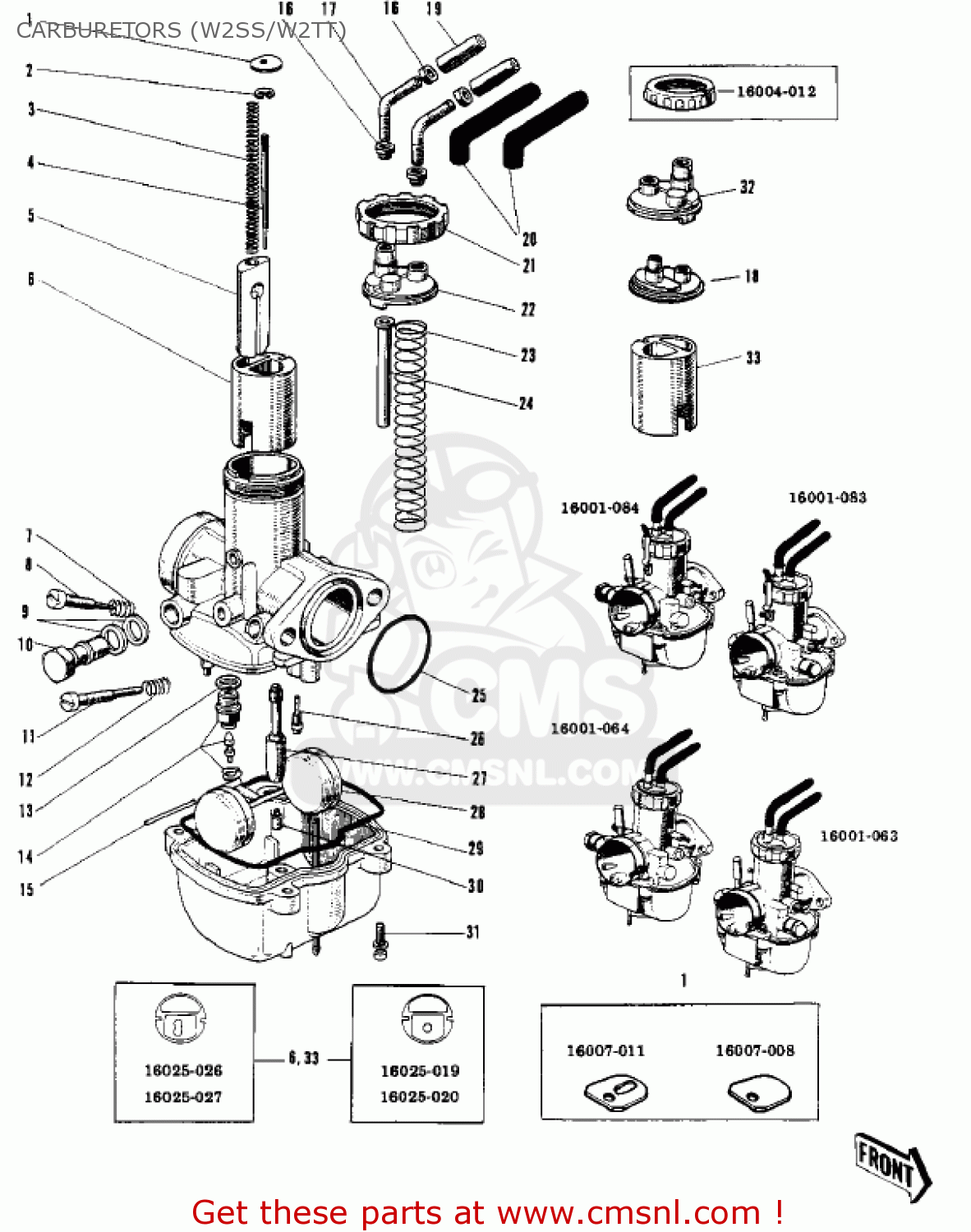

Carburetors (w2ss/w2tt) diagram W2SS COMMANDER 1968 USA CANADA
CARBURETORS (W2SS/W2TT) W2SS COMMANDER 1968 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
?
16001167
ref: ?
Includes items 1 - 3
CARBURATOR ASSY R-H
€ 301.50
?
16001168
ref: ?
Includes items 1 - 3
CARBURATOR ASSY L-H
€ 301.50
1
16007011
ref: 1
WHN EXH USE 16007-01
THROTTLE VALVE SPRING SEAT
€ 6.50
1
16007011
ref: 1
THROTTLE VALVE SPRING SEAT
€ 6.50
2
16008010
ref: 2
CLAMP,E-TYPE
€ 5.00
3
16040003
ref: 3
AIR SHUTTER SPRING
€ 3.00
4
16009017
ref: 4
5L1
JET NEEDLE 5L1
€ 6.50
5
16041003
ref: 5
AIR SHUTTER
€ 84.00
6
16025027
ref: 6
CA2.0
VALVE-THROTTLE R.H
€ 45.50
6
16025027
ref: 6
CA2.0
VALVE-THROTTLE R.H
€ 45.50
7
16022005
ref: 7
SPRING-THR STOP SCREW
€ 5.50
8
16021007
ref: 8
THROTTLE STOP SCREW
€ 13.50
9
110091146
ref: 9
GASKET,10.2X15X1.5 (NAS)
€ 2.00
10
92060006
ref: 10
WHITWORTH THREAD
BOLT,BANJO
€ 24.50
10
92060011
ref: 10
METRIC THREAD
BOLT - BANJO
€ 10.00
11
16014007
ref: 11
SCREW-PILOT AIR ADJST
€ 4.50
12
16022010
ref: 12
SPRING,THROTTLE ADJST
€ 4.50
13
16029005
ref: 13
WASHER-FLOAT VLV SEAT
€ 1.00
14
16030006
ref: 14
VALVE-FLOAT
€ 18.50
15
16032003
ref: 15
FLOAT PIN
€ 4.00
16
16003004
ref: 16
NUT-CABLE ADJUST LOCK
€ 4.50
17
16077001
ref: 17
GUIDE,CABLE
€ 6.50
18
16005019
ref: 18
MIXING CHAMBER TOP
€ 30.00
19
16002004
ref: 19
CABLE ADJUSTER
€ 8.00
20
16037003
ref: 20
CAP,RUBBER
€ 8.00
21
16004007
ref: 21
WHITWORTH THREAD
MIXING CHAMBER CAP
€ 18.50
21
16004012
ref: 21
METRIC THREAD
MIXING CHAMBER CAP
€ 18.50
22
16005014
ref: 22
WHN EXH USE 16005-01
TOP-CHAMBER
€ 3.00
22
16005017
ref: 22
MIXING CHAMBER TOP,RH
€ 15.50
23
16006011
ref: 23
SPRING-THROTTLE VALVE
€ 4.00
24
16045002
ref: 24
NOT REQUIRED FOR 160
GUIDE-AIR SHUTTER
€ 2.50
25
16038006
ref: 25
'O' RING-MANIFOLD
€ 1.50
26
92064030
ref: 26
#25
JET,PILOT,NO.25
€ 28.50
26
92064029
ref: 26
#30
JET,PILOT,#30
€ 18.50
27
16017023
ref: 27
O-6
JET,NEEDLE,#O-6
€ 23.50
27
16017038
ref: 27
O-4
JET,NEEDLE,#O-6
€ 38.00
27
16017033
ref: 27
O-4
UNAVAILABLE IN PRICE BOOK
€ 0.00
28
16031011
ref: 28
FLOAT
€ 68.50
29
16019009
ref: 29
GASKET,FLOAT CHAMBER
€ 22.00
30
92063024
ref: 30
S.T.D.
JET-MAIN,#220
€ 11.00
30
92063022
ref: 30
W2SS, W2TT OPTION
JET-MAIN,#200
€ 9.50
30
92063023
ref: 30
W2SS, W2TT OPTION
JET-MAIN,#210
€ 9.50
30
92063025
ref: 30
W2SS, W2TT OPTION
JET-MAIN,#230
€ 10.50
30
92063026
ref: 30
W2SS, W2TT OPTION
JET-MAIN,#240
€ 12.00
31
16033007
ref: 31
SCREW-FLOAT CHAMBER
€ 0.50
31
16033011
ref: 31
I.S.O. THREAD
SCREW,FLOAT CAMBER
€ 0.50
32
16005015
ref: 32
WHN EXH USE 16005-01
TOP-CHAMBER
€ 3.00
32
16005018
ref: 32
MIXING CHAMBER TOP,LH
€ 15.50
33
16025020
ref: 33
THROTTLE VALVE,LH
€ 36.50
33
16025026
ref: 33
CA2.0
VALVE-THROTTLE L.H
€ 21.00
