HANDLEBAR (EARLY PRODUCTION)
W2SS COMMANDER 1968 USA CANADA

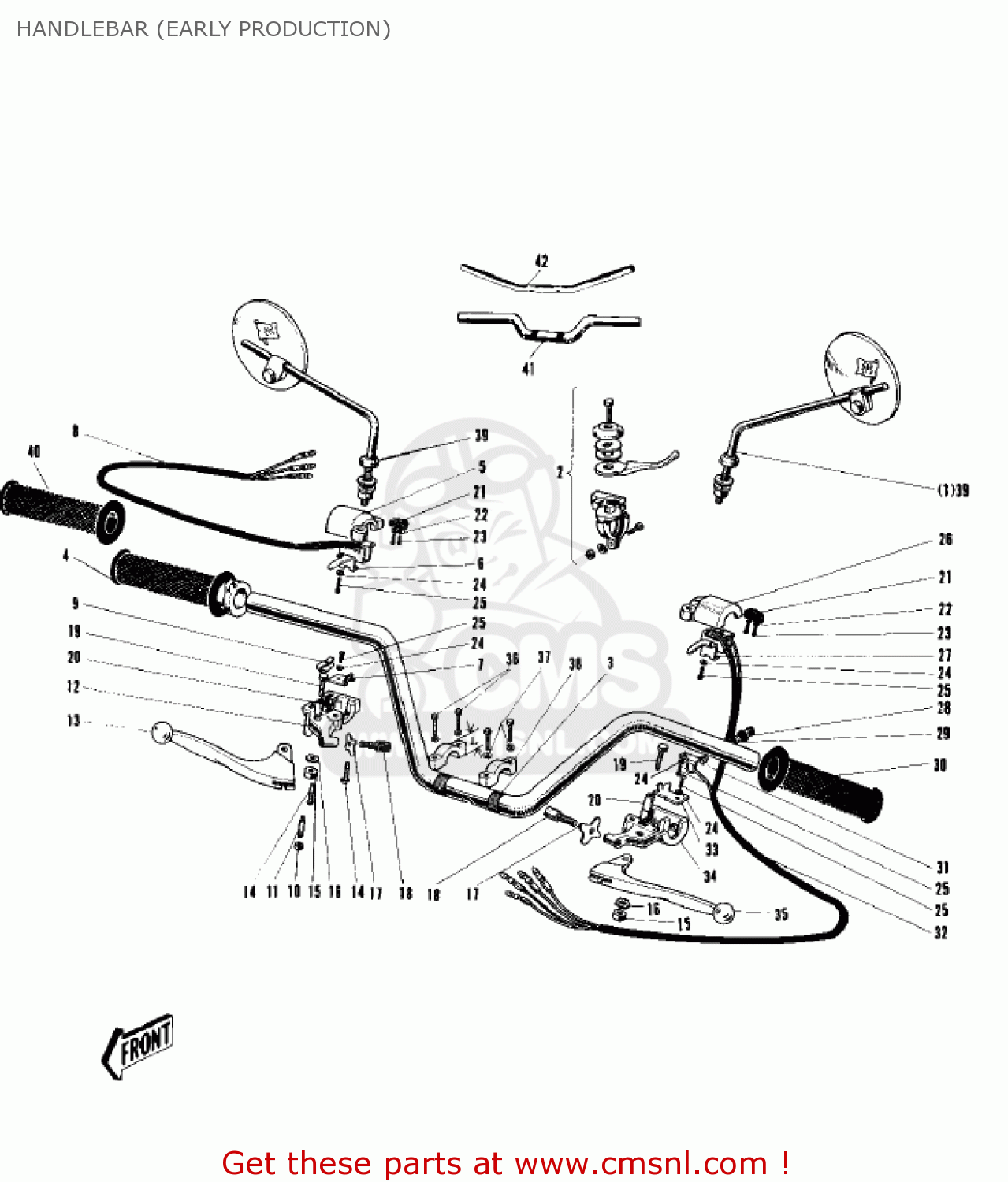

Handlebar (early production) diagram W2SS COMMANDER 1968 USA CANADA
HANDLEBAR (EARLY PRODUCTION) W2SS COMMANDER 1968 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
56003002
ref: 1
WHN EXH USE 56002-01
REAR VIEW MIRROR,LH
€ 31.50
2
46109007
ref: 2
AIR SHUTTER LEVER ASSEMBLY
€ 23.50
3
46003015
ref: 3
HANDLE
€ 123.50
?
46017042
ref: ?
Includes items 4 - 2
GRIP ASSY-R.H
€ 89.50
4
46019005
ref: 4
GRIP-ASSY,THROTTLE
€ 36.00
5
46040009
ref: 5
CASE-R.H SWITCH UPPER
€ 2.50
6
46037012
ref: 6
HOLDER-R.H SW UP WRNG
€ 1.00
7
46037011
ref: 7
HOLDER-R.H SW LW WRNG
€ 1.00
8
46032014
ref: 8
SWITCH WIRING HARNESS,RH
€ 52.50
9
46025002
ref: 9
SPRING-GRIP ADJUST
€ 1.00
10
311B0500
ref: 10
NUT-HEX
€ 0.50
10
311B0500
ref: 10
I.S.O. THREAD
NUT-HEX
€ 0.50
11
46026002
ref: 11
WHITE PAINTED
SCREW-GRIP ADUST
€ 1.00
11
46026007
ref: 11
YELLOW PAINTED
SCREW-GRIP ADJUSTING
€ 1.50
12
46022011
ref: 12
CASE-R.H SWITCH LOWER
€ 4.50
13
46058005
ref: 13
LEVER-FRONT BRAKE
€ 17.50
14
92011010
ref: 14
SCREW-SWITCH CASE
€ 0.50
14
92011017
ref: 14
I.S.O. THREAD
SCREW-SWITCH CASE
€ 0.50
15
92015038
ref: 15
NUT,
€ 0.50
15
312B0500
ref: 15
NUT-HEX,5MM
€ 0.50
16
464H0500
ref: 16
WASHER-LOCK,5MM
€ 0.50
17
46056001
ref: 17
NUT-ADJUST SCREW LOCK
€ 2.50
18
46055003
ref: 18
SCREW-CABLE ADJUST
€ 11.50
19
92007018
ref: 19
BOLT-HEX HEAD,5X20
€ 2.00
19
92007020
ref: 19
I.S.O. THREAD
BOLT-HEX HEAD,5X20
€ 2.50
20
46059011
ref: 20
COLLAR,LEVER
€ 3.50
21
46044003
ref: 21
KNOB-SWITCH
€ 3.50
22
92029002
ref: 22
WASHER-SPRING
€ 0.50
23
211B0206
ref: 23
SCREW-PAN HEAD,2X6
€ 0.50
24
461F0300
ref: 24
WASHER-SPRING,3MM
€ 0.50
25
220B0306
ref: 25
SCREW-PAN-CROS
€ 0.50
25
220B0306
ref: 25
I.S.O. THREAD
SCREW-PAN-CROS
€ 0.50
?
46074040
ref: ?
Includes items 14 -
GRIP ASSY-L.H
€ 104.50
26
46086008
ref: 26
CASE-L.H SWITCH UPPER
€ 3.50
27
46085010
ref: 27
HOLDER-L.H SW UP WRNG
€ 1.50
28
270101009
ref: 28
SWITCH ASSY,HORN BUTN
€ 5.50
29
46079001
ref: 29
CONTACT-HORN BUTTON
€ 2.00
30
46075007
ref: 30
GRIP,LH
€ 15.00
31
270101009
ref: 31
SWITCH ASSY,HORN BUTN
€ 5.50
32
46082013
ref: 32
SWITCH WIRING HARNESS,LH
€ 52.50
33
46085009
ref: 33
HOLDER-L.H SW LW WRNG
€ 2.00
34
46077009
ref: 34
CASE-L.H SWITCH LOWER
€ 6.50
35
46092006
ref: 35
LEVER-CLUTCH
€ 13.00
36
114G0828
ref: 36
BOLT-SMALL,8X28
€ 2.50
36
920011405
ref: 36
BOLT,8X38
€ 10.00
37
461F0800
ref: 37
WASHER-SPRING,8MM
€ 0.50
38
46012006
ref: 38
HANDLEBAR HOLDER
€ 56.50
38
46012004
ref: 38
HOLDER-UPPER HANDLBAR
€ 14.00
39
56002012
ref: 39
WHN EXH USE 56001-00
REAR VIEW MIRROR,RH
€ 28.50
39
56001005
ref: 39
WHN EXH USE 56001-00
REAR VIEW MIRROR
€ 54.00
39
56001005
ref: 39
REAR VIEW MIRROR
€ 54.00
40
46019005
ref: 40
GRIP-ASSY,THROTTLE
€ 36.00
41
46006005
ref: 41
NO PRODUCT DESCRIPTION
€ 0.00
42
46005004
ref: 42
NO PRODUCT DESCRIPTION
€ 0.00
